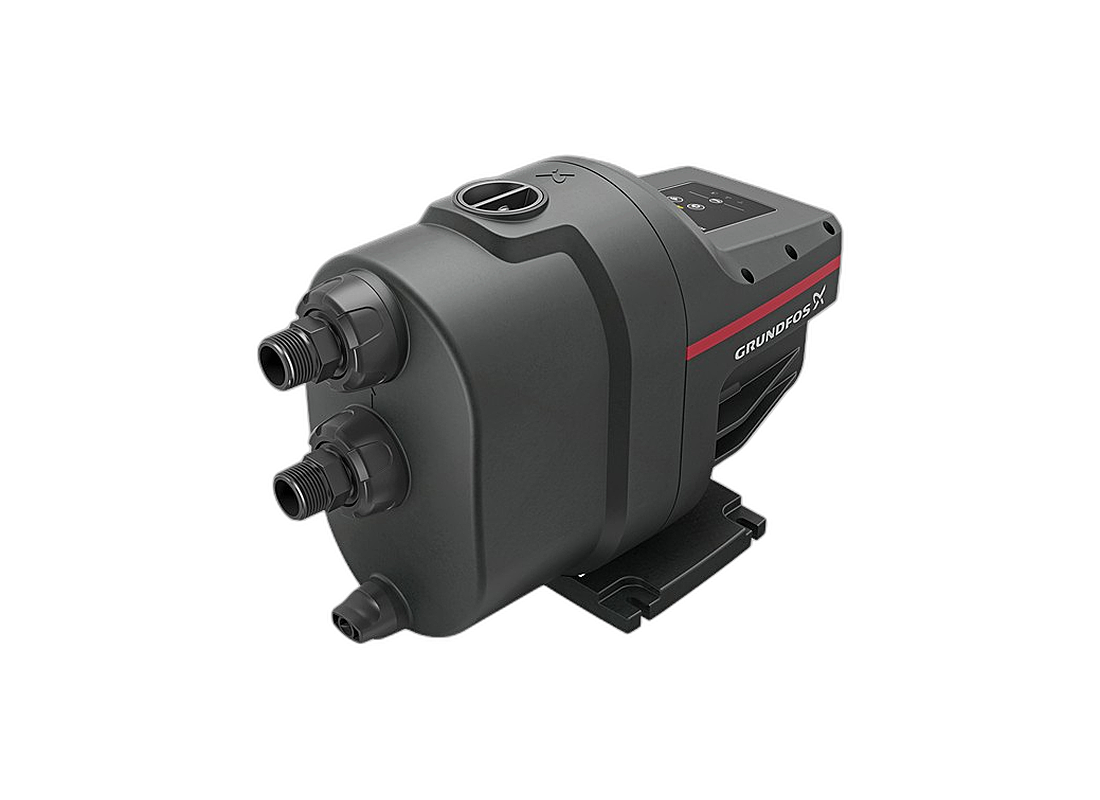

Grundfos SCALA1 3-45 Composite Pressure Boosting Water Supply Pump with Built-in Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos SCALA1 3-45 is a pressure boosting pump designed for domestic applications and light commercial use including irrigation, tank filling, and boosting pressure from mains or stored water systems. It delivers consistent pressure for residential use, garden systems, and small installations.
Constructed with a composite pump housing and composite impeller, the unit provides corrosion resistance and long operational life. The compact design integrates essential components including the pump, motor, diaphragm tank, pressure and flow sensors, dry-running protection, non-return valve, and built-in control system for efficient and stable operation.
The pump delivers a maximum head of 44 metres with a nominal flow of 3.6 m³/h and a nominal head of 25 metres. It supports a maximum operating pressure of 8 bar and a maximum inlet pressure of 3 bar, ensuring reliable performance for pressure boosting applications.
The unit is powered by an electric motor operating on 1 x 240 V, 50 Hz supply. Built-in Bluetooth communication enables monitoring, diagnostics, and control via the Grundfos GO REMOTE system.
FEATURES- Motor: Electric Motor, 1 x 240 V, 50 Hz
- Maximum Head: 44 m
- Rated Flow: 3.6 m³/h
- Rated Head: 25 m
- Pump Type: Pressure boosting pump
- Construction: Composite pump housing with composite impeller
- Integrated Components: Pump, motor, diaphragm tank, sensors, non-return valve, and built-in control
- Maximum Operating Pressure: 8 bar
- Maximum Inlet Pressure: 3 bar
- Pump Liquid Temperature: Maximum 45°C
- Ambient Temperature: Maximum 55°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Bluetooth connectivity for monitoring and control
SPECIFICATIONS
| Max Flow | 86 L/Min |
| Max Head | 44 m |
| Power | 0.58 kW / 240v |
| Rated Current | 3.9 Amps |
| Suitable For | Domestic Supply |
| Body Material | Composite |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
For balanced pressure and flow, the Grundfos SCALA1 3-45 provides up to 86 L/Min in delivery and up to 44 m in vertical lift.
What kind of power supply does this pump require to run?
It operates on 240v power, with the SCALA1 3-45 utilizing a durable 0.58 kW motor rated at 3.9 Amps.
How is the pump casing constructed to resist mechanical and fluid wear?
Wetted components on the SCALA1-3-45 are crafted from high-grade Composite to maintain physical integrity and resist abrasive wear.
Where is this pump commonly installed and utilized?
Everyday water management duties for the SCALA1 3 45 focus on specific duty environments, is utilized for domestic mains pressure boosting, rainwater harvesting extraction, and residential tap supply, providing reliable pumping performance.
Does this pump include an official manufacturer warranty?
Official factory backing for the SCALA1/3/45 includes an authentic 2 Years warranty for verified quality and peace of mind.
