SKU: 99530422

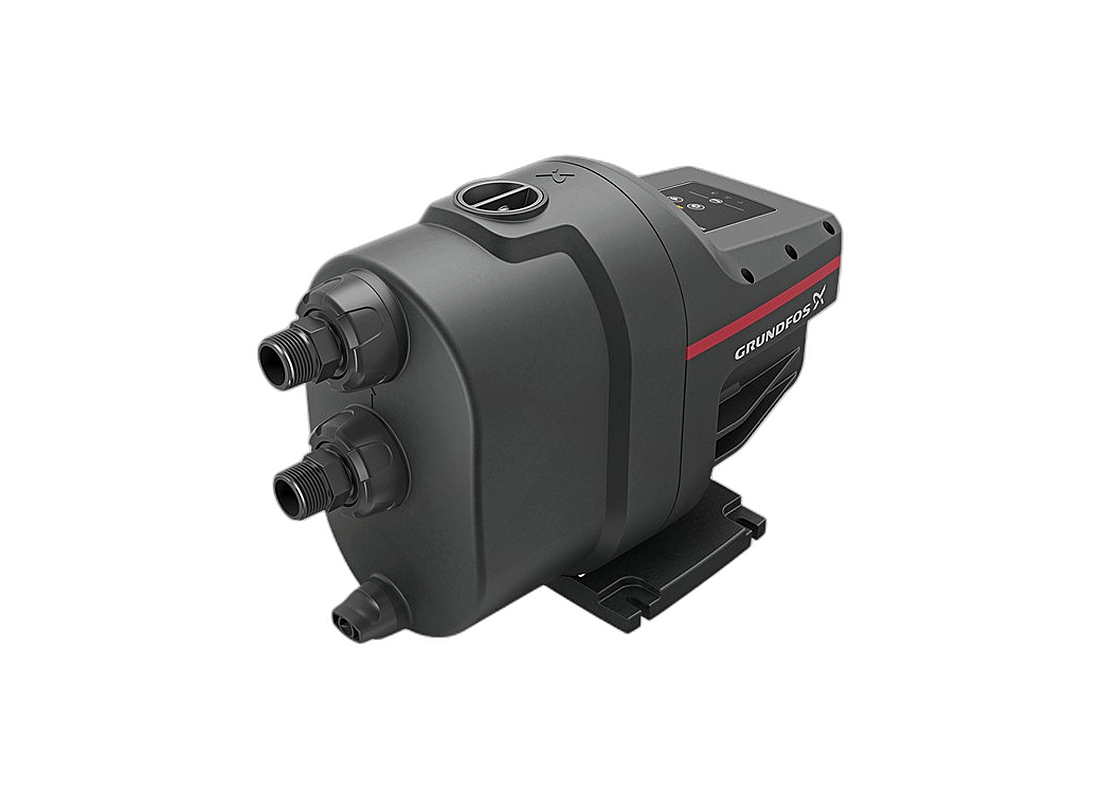

Grundfos SCALA1 5-55 Composite Pressure Boosting Domestic Water Pump with Built-in Control
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos SCALA1 5-55 is a pressure boosting pump designed for domestic and light commercial applications including irrigation, tank filling, and boosting pressure from mains or stored water systems. It delivers consistent pressure performance for residential installations, garden systems, and utility water applications.
Constructed with a composite pump housing and composite impeller, the unit offers corrosion resistance and long service life. The compact design integrates key components including the pump, motor, diaphragm tank, pressure and flow sensors, dry-running protection, non-return valve, and built-in control system to ensure stable and efficient operation.
The pump delivers a maximum head of 55 metres with a rated flow of 5 m³/h and a rated head of 27.8 metres. It supports a maximum operating pressure of 8 bar and a maximum inlet pressure of 2 bar, ensuring reliable pressure boosting performance for demanding applications.
The unit is powered by an electric motor rated at 0.78 kW (P2) with a maximum input power of 1200 W, operating on a 1 x 240 V, 50 Hz supply. It also features built-in Bluetooth communication for monitoring and control.
FEATURES- Motor: 0.78 kW Electric Motor, 1 x 240 V, 50 Hz
- Maximum Head: 55 m
- Rated Flow: 5 m³/h
- Rated Head: 27.8 m
- Pump Type: Pressure boosting pump
- Construction: Composite pump housing with composite impeller
- Integrated Components: Pump, motor, diaphragm tank, sensors, non-return valve, and built-in control
- Start Pressure: 2.8 bar
- Maximum Operating Pressure: 8 bar
- Maximum Inlet Pressure: 2 bar
- Pump Liquid Temperature: Maximum 45°C
- Ambient Temperature: Maximum 55°C
- Inlet Size: 25 mm
- Outlet Size: 25 mm
- Bluetooth connectivity for monitoring and control
SPECIFICATIONS
| Max Flow | 112 L/Min |
| Max Head | 55 m |
| Power | 0.78 kW / 240v |
| Rated Current | 5.3 Amps |
| Suitable For | Domestic Supply |
| Body Material | Composite |
| Liquid Temperature | Maximum 45°C |
| Inlet Size | 25 mm |
| Outlet Size | 25 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and pressure can this pump deliver?
You get up to 112 L/Min in flow and a maximum head of 55 m from the Grundfos SCALA1 5-55, depending on operating conditions.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 0.78 kW motor, the SCALA1 5-55 connects to 240v mains power with a rated current draw of 5.3 Amps.
What corrosion-resistant materials are used in the wetted components?
Manufactured with quality materials, the SCALA1-5-55 incorporates Composite for dependable longevity and resistance to fluid erosion.
What domestic plumbing and water boosting roles does this pump perform?
Suited for diverse installations, the SCALA1 5 55 performs domestic mains pressure boosting, rainwater harvesting extraction, and residential tap supply with dependable fluid propulsion.
What factory warranty backing is provided with this pumping equipment?
Factory coverage on the SCALA1/5/55 provides an authentic 2 Years warranty for dependable long-term reliability.
