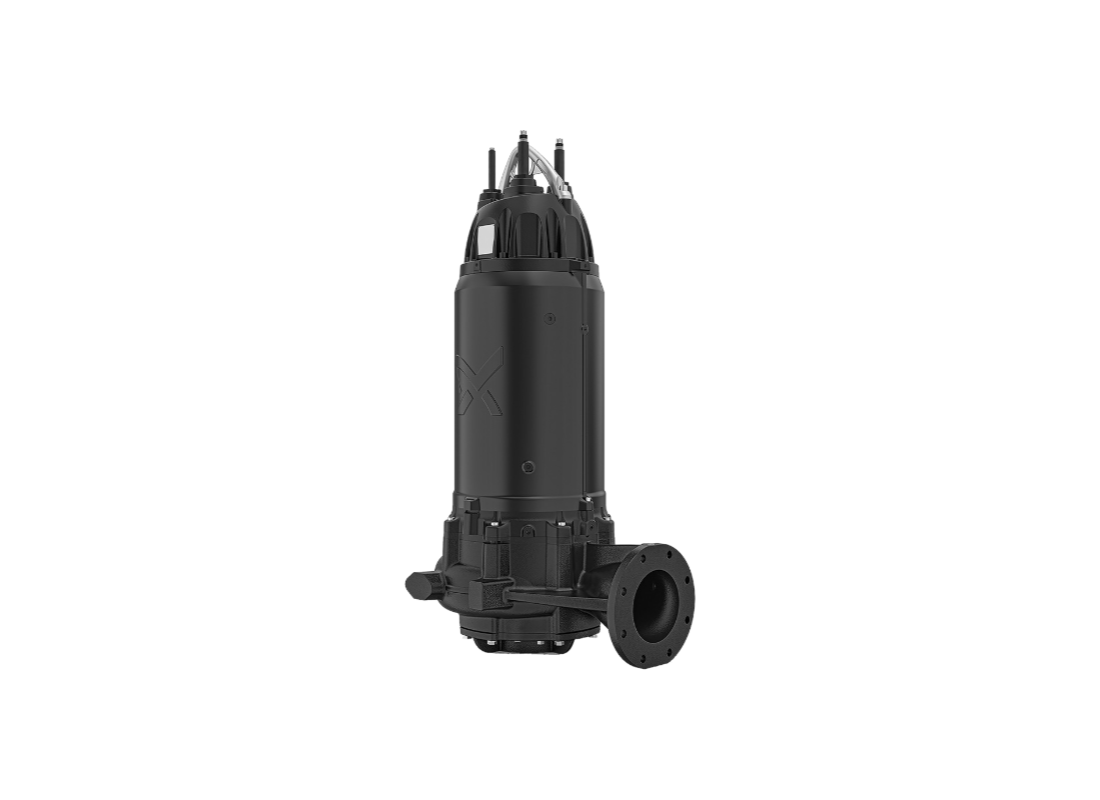

Infrastructure environments requiring efficient effluent handling utilize the SE.56H.240.4.50D.150 for centralized collection and transfer in permanent stations. This cast iron submersible pump is intended for municipal and industrial wastewater applications where raw sewage contains solids. It provides consistent hydraulic service at liquid temperatures ranging from 0°C to +40°C.
The pump achieves a maximum flow of 9600 L/min and a maximum head of 43 m, powered by a 24 kW 4-pole motor drawing 56 Amps. Working on a three-phase 415 V supply, the motor utilizes an internal cooling jacket system for temperature control. This setup facilitates stable temperature management for reliable hydraulic power in high-head lift systems.
Managing untreated wastewater containing solids is the primary function of the Open S-tube impeller, featuring a 351 mm diameter and a 41 mm free passage. The nominal duty head is 24.9 m. This hydraulic design incorporates a 200 mm inlet and a 150 mm outlet with DIN flanges, supporting high-volume transfer while reducing clogging risks in wastewater infrastructure.
Structural durability is provided by an EN-GJL-250 cast iron pump housing and motor casing with double mechanical SiC/SiC shaft seals. Integrated PTO sensors, moisture switches, and leakage sensors provide motor protection and monitoring to ensure operational safety. The unit includes a 10-metre S1BC4N8-F EMC power cable and an IP68 enclosure for installation depths to 30 metres.
FEATURES
- Open S-tube impeller with 351 mm diameter and 41 mm passage for managing untreated wastewater.
- EN-GJL-250 cast iron pump housing and motor casing for durability in permanent installations.
- Double mechanical shaft seal with SiC/SiC primary faces and Silicon Carbide/Carbon barrier protection.
- Integrated PTO sensors, moisture switches, and leakage sensors for motor protection and monitoring.
- Internal cooling jacket system facilitates thermal management in both submerged and dry pits.
- Supplied with a 10-metre S1BC4N8-F EMC power cable for reliable electrical connection in stations.
- IP68 enclosure suitable for installation depths up to 30 metres with a 10 bar operating limit.
- Compatible with the Grundfos DN150 auto-coupling system (97695489) for simplified maintenance access.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
