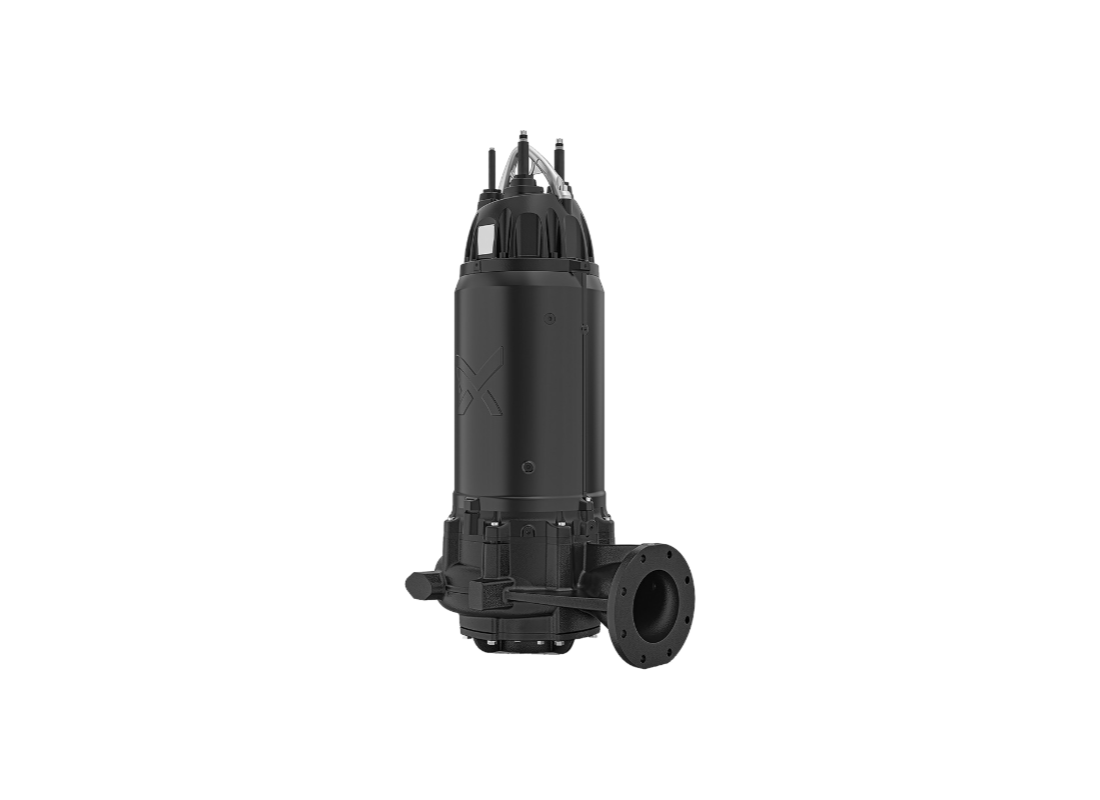

Grundfos SE.56M.320.4.50D.200 Cast Iron Mid-Head Wastewater Pump for Drainage Systems with Open S-tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial wastewater stations and municipal lift projects rely on the high-volume capacity of the SE.56M.320.4.50D.200 for submerged or dry-pit applications. This cast iron model is intended for municipal and industrial wastewater applications, specifically managing raw sewage containing solids. It maintains operational safety in infrastructure environments with liquid temperatures ranging from 0°C to +40°C.
The unit achieves a maximum flow rate of 15720 L/min and a maximum head of 32 m using a 32 kW 4-pole motor. Drawing 65.5 Amps on a 415 V supply, the pump utilizes an internal cooling jacket for thermal safety. This integrated cooling allows for reliable operation during high-capacity transfer cycles in wastewater infrastructure.
Hydraulic handling is characterized by an Open S-tube impeller with a 334.5 mm diameter and a 71 mm free passage for managing untreated wastewater containing solids. The nominal duty head is 17.17 m. Equipped with dual 200 mm inlet and outlet connections, the design supports high-volume transfer while reducing clogging risks in municipal collection systems.
Structural durability is provided by an EN-GJL-250 cast iron motor casing and pump housing protected by double SiC/SiC mechanical shaft seals. Protection is provided by integrated PTO sensors, moisture switches, and leakage sensors for comprehensive motor health monitoring. The unit is supplied with a 10-metre S1BC4N8-F EMC power cable and an IP68 enclosure suitable for depths up to 30 metres.
FEATURES
- Open S-tube impeller with 334.5 mm diameter and 71 mm passage for managing untreated solids.
- EN-GJL-250 cast iron pump housing and motor casing for structural durability in permanent service.
- Double mechanical shaft seal with SiC/SiC primary faces and Silicon Carbide/Carbon barrier protection.
- Integrated PTO sensors, moisture switches, and leakage sensors for motor protection and monitoring.
- Internal cooling jacket system for thermal management in both submerged and dry pit environments.
- Supplied with a 10-metre S1BC4N8-F EMC power cable for reliable electrical connection in wet wells.
- IP68 enclosure suitable for installation depths up to 30 metres and 9 bar operating pressure.
- Compatible with the Grundfos DN200 auto-coupling system (96641489) for simplified maintenance access.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 15720 L/Min |
| Max Head | 32 m |
| Power | 32 kW / 415v |
| Rated Current | 65.5 Amps |
| Suitable For | Municipal Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | 0°C to +40°C |
| Inlet Size | 200 mm |
| Outlet Size | 200 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow and vertical lift can I get from this pump?
You get up to 15720 L/Min in flow and a maximum head of 56M from the Grundfos SE.56M.320.4.50D.200, depending on operating conditions.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the SE.56M.320.4.50D.200 develops a maximum pumping head of approximately 56M.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the SE-56M-320-4-50D-200 requires a 415 V three-phase connection, driving an efficient 32 kW motor that draws 65.5 Amps.
What is the maximum spherical solids clearance for this pump?
Internal hydraulic clearances in the SE 56M 320 4 50D 200 allow spherical waste up to 71 mm to move through the chamber without lodging.
How high can this pump push fluid through discharge risers?
Dynamic lift generated by the SE/56M/320/4/50D/200 reaches a maximum elevation head of approximately 56M across discharge lines.
