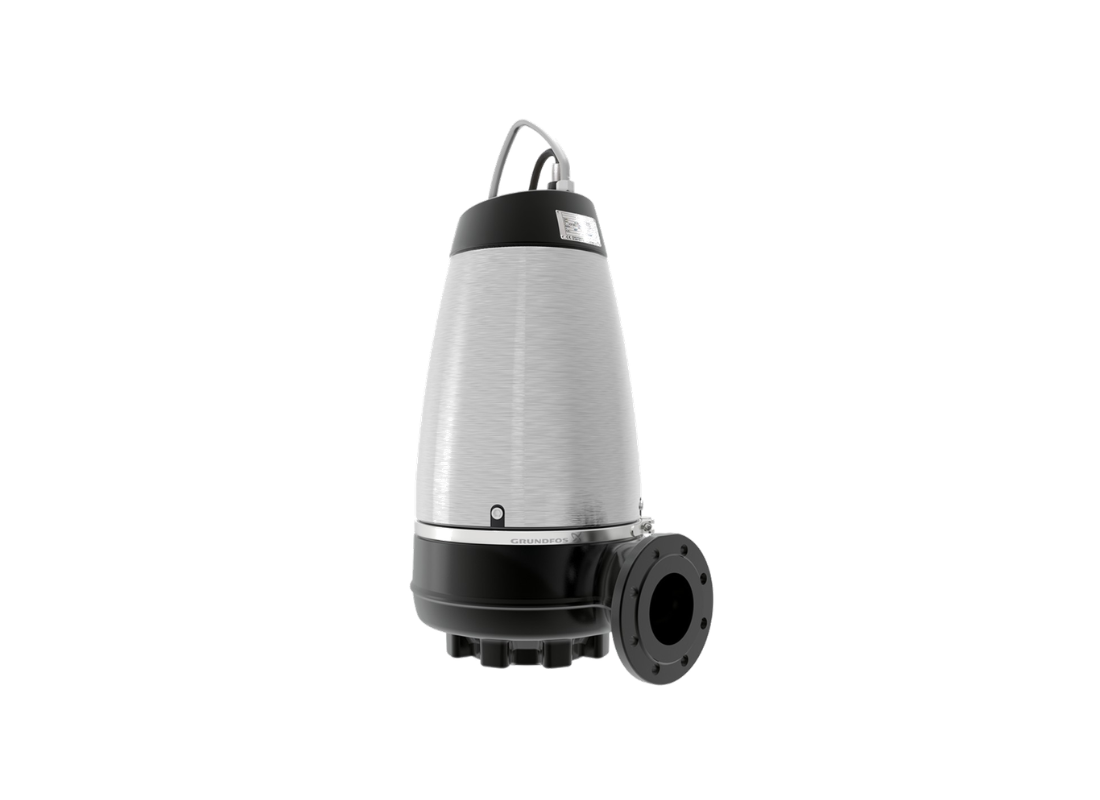

Grundfos SE1.50.80.30.2.50B.B Cast Iron 3" Submersible Drainage Pump for Sludge Flow with S-TUBE Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume fluid optimization relies on the uninterrupted strength of machinery operating under severe environmental stress and constant abrasive loading. Engineered for supreme pit resilience, the Grundfos SE1.50.80.30.2.50B.B is an elite Submersible Drainage Pump designed precisely for handling wastewater, process water, and unscreened raw sewage.
Fortified by a highly durable cast iron foundational casing, this unit entirely deflects the violent physical shocks commonly experienced during rapid flow state changes. Its thick external barrier shields sensitive internal electromechanical elements from continuous exposure to abrasive particles, ensuring the volute geometry remains completely intact.
Thermodynamic stability and fluid velocity are expertly governed by the specialized S-TUBE impeller structure. Powered by a robust 3 kW motor locked to a 3-phase 415v electrical infrastructure, the unit scales to an impressive maximum head of approximately 21.6 m and pushes an approximate maximum flow of 1164 L/Min through its 65 mm and 80 mm pathways.
Eliminating the need for constant supervision, this heavy-duty machine integrates an advanced maintenance-free liquidless cooling network suited for dry or completely submerged deployments. A highly intuitive stainless-steel clamp assembling framework ensures rapid unit disassembly, granting technicians immediate internal component access when required.
Features
- Capable of safely routing internal liquid medium temperatures dynamically ranging between 0 and 40 °C.
- Assembled with a substantial total net structural weight measuring exactly 96 kg to eliminate rotational vibration.
- Provides a massive 12 m maximum installation depth rating specifically tailored for deep commercial collection pits.
- Designed to actively sustain a maximum operating pressure threshold measuring exactly 6 bar under peak loading.
- Implements a premium Class F insulation rating to actively prevent internal electrical component degradation.
- Equipped with an extended 15 m Lyniflex power cable structure to streamline versatile facility grid connections.
- Built around an IP68 standard enclosure specifically optimized for continuous fully submerged field operations.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 21.6 m |
| Power | 3 kW / 415v |
| Rated Current | 6.3 Amps |
| Suitable For | Heavy wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this pump displace through its outlet?
Discharge throughput on the Grundfos SE1.50.80.30.2.50B.B reaches a maximum flow rate of approximately 1164 L/Min under standard operating conditions.
How much vertical head pressure can this pump generate?
To overcome vertical elevation resistance, the SE1.50.80.30.2.50B.B develops a maximum pumping head of approximately 21.6 m.
What kind of power supply does this pump require to run?
Electrical power for the SE1-50-80-30-2-50B-B requires a 415 V three-phase connection, driving an efficient 3 kW motor that draws 6.3 Amps.
What size spherical waste can pass through the pump chamber?
Internal hydraulic clearances in the SE1 50 80 30 2 50B B allow spherical waste up to 50 mm to move through the chamber without lodging.
How is this pump mounted for quick inspection and servicing?
Mechanical mounting for the SE1/50/80/30/2/50B/B is configured around a standard guide rail auto-coupling for straightforward pit alignment.
