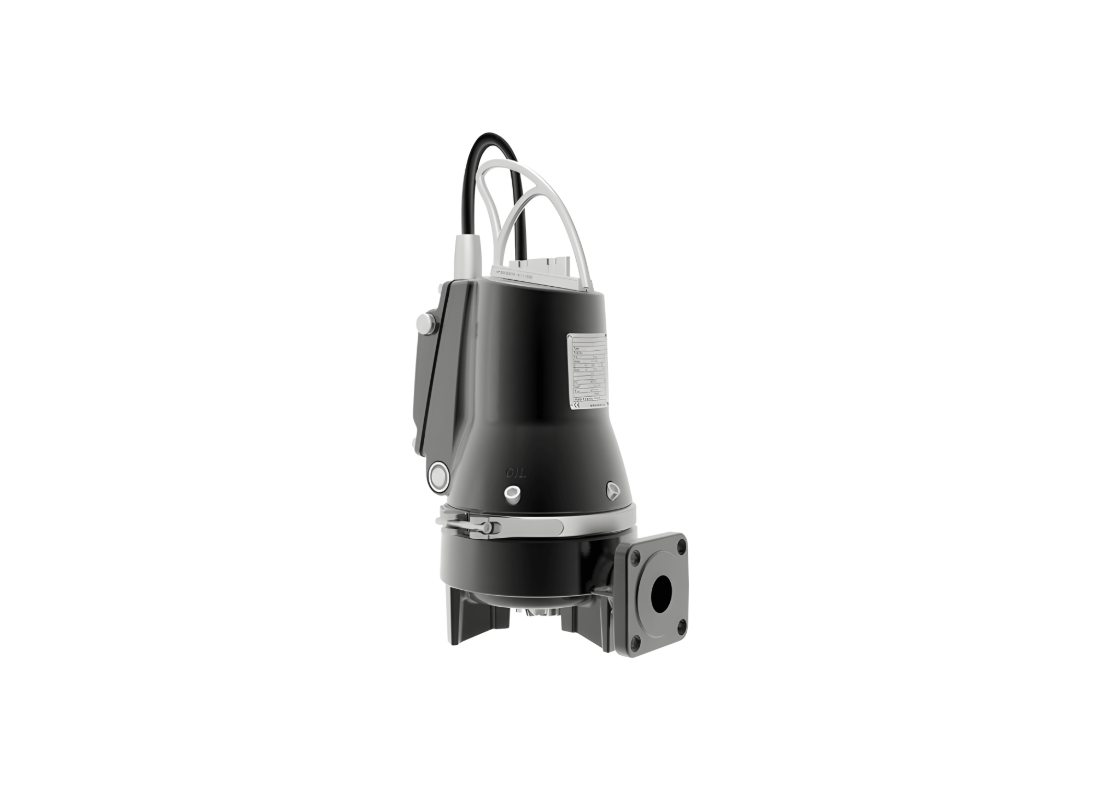

Grundfos SEG.40.09.E.EX.2.1.502 Cast Iron AUTOADAPT Wastewater Pump for Shared Tanks with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting an advanced primary structural material choice and dense casting geometry, the Grundfos SEG.40.09.E.EX.2.1.502 delivers tremendous subterranean resilience. Grundfos SEG AUTOADAPT pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. Constructed from high-strength components, it aggressively excels in restrictive fluid environments.
Deep at the mechanical core, this industrial pump features an aggressive grinder system that destructs dense solids into fine particles, allowing seamless transfer through restricted municipal piping. The external housing surface remains uniformly smooth to prevent foul dirt from physically adhering to the bare chassis, extending operational lifespans.
Delivering formidable kinetic force directly into the internal fluid columns, the motor leverages exactly 0.9 kW of robust operational output. Engineered explicitly for commercial single-phase 240v grids, this highly reliable unit achieves a maximum head limit of 14.4 meters while continuously circulating a maximum flow of 250 L/Min effectively.
Setting an advanced standard for autonomous operations, the AUTOADAPT controller bypasses the requirement for external monitoring nodes. When multiple units operate in matching containment vessels, smart logic balances the workload. The power cable weaves thermal sensors directly into the motor windings for absolute heat protection.
Features
- Engineered with an advanced self-calibration capability following each pump cycle.
- Features an integrated anti-seizing system activating at programmed intervals.
- Incorporates an accessible alarm relay output configuring normally open or closed.
- Utilizes a random start delay mechanism resolving general power shutdown events.
- Constructed utilizing heavy EN-GJL-200 standard cast iron for the pump impeller.
- Requires precisely 8.1 Amps of rated current during maximum operational load.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 14.4 m |
| Power | 0.9 kW / 240v |
| Rated Current | 8.1 Amps |
| Suitable For | Shared Tanks |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical connection and motor power run this pump?
Under full load conditions, the motor in the Grundfos SEG.40.09.E.EX.2.1.502 delivers 0.9 kW on a 240 V single-phase line drawing 8.1 Amps.
What everyday water supply duties are best performed by this pump?
Water management applications designate the SEG.40.09.E.EX.2.1.502 for small-pipe transport, supporting consistent property operation.
What domestic plumbing and water boosting roles does this pump perform?
Routine operational tasks matching the SEG-40-09-E-EX-2-1-502 encompass Integrated AUTOADAPT sensors in coordinate automated duty cycles and anti-seizing routines without external starter panels across connected networks.
How much water flow can this pump deliver per minute?
Discharge throughput on the SEG 40 09 E EX 2 1 502 reaches a maximum flow rate of approximately 250 L/Min under standard operating conditions.
What is the maximum vertical lift capacity of this pump?
To overcome vertical elevation resistance, the SEG/40/09/E/EX/2/1/502 develops a maximum pumping head of approximately 14.4 m.
