SKU: 96878508

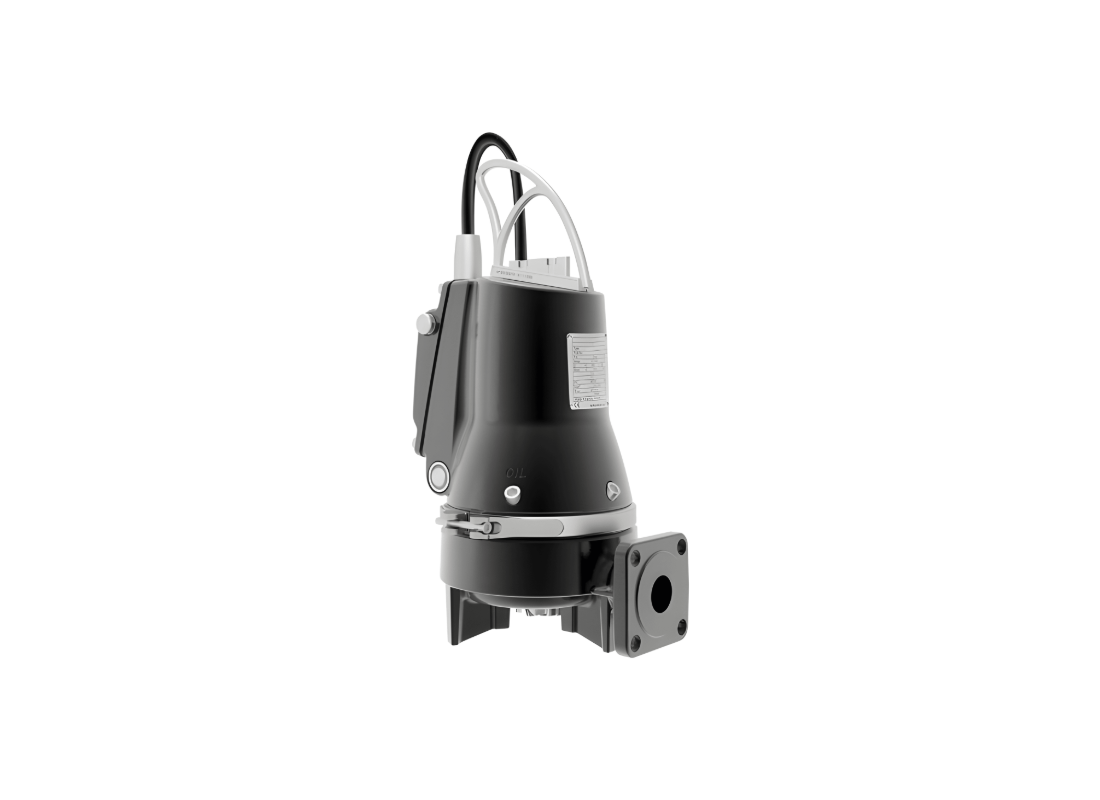

Grundfos SEG.40.09.E.EX.2.50B Cast Iron AUTOADAPT Wastewater Pump for Parallel Pumping with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Facing severe operational load challenges in pressurized wastewater networks, the Grundfos SEG.40.09.E.EX.2.50B delivers heavy-duty reliability. Grundfos SEG AUTOADAPT pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This unit provides highly effective fluid transfer where natural gravity drainage is structurally impossible.
The internal blueprint integrates an aggressive grinder system capable of destructing volatile solids into small manageable pieces, permitting easy transport through restrictive localized pipes. The central housing features dense cast iron providing immense resistance to abrasive matter. A smooth external casting definitively prevents foul dirt.
Operating with pristine hydraulic stability, the motor delivers exactly 0.9 kW of dynamic rated power while connecting safely via a totally sealed protective plug connection. Capable of achieving a maximum head of 14.4 meters and a continuous maximum flow of 250 L/Min, this three-phase 415v setup flawlessly maintains optimal internal fluid momentum.
Setting an advanced standard for autonomous operations, the AUTOADAPT controller bypasses the requirement for external monitoring nodes. When multiple units operate in matching containment vessels, smart logic balances the workload. The power cable weaves thermal sensors directly into the motor windings for absolute heat protection.
Features
- Draws an incredibly efficient 2.7 Amps of steady electrical current under heavy load.
- Configured intelligently to prevent starting sequences if electrical phase is incorrect.
- Includes a versatile integrated alarm relay supporting normally closed orientations.
- Incorporates an automated anti-seizing routine to maintain internal bearing freedom.
- Utilizes precision EN-GJL-200 standard cast iron for the aggressive grinder impeller.
- Operates smoothly under demanding maximum ambient temperature limits of 40 degrees.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 14.4 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.7 Amps |
| Suitable For | Parallel Pumping |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid throughput does this pump move under full load?
Discharge throughput on the Grundfos SEG.40.09.E.EX.2.50B reaches a maximum flow rate of approximately 250 L/Min under standard operating conditions.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the SEG.40.09.E.EX.2.50B develops a maximum pumping head of approximately 14.4 m.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the SEG-40-09-E-EX-2-50B requires a 415 V three-phase connection, driving an efficient 0.9 kW motor that draws 2.7 Amps.
What domestic plumbing and water boosting roles does this pump perform?
Suited for diverse installations, the SEG 40 09 E EX 2 50B performs Tough wastewater contaminants are pulverized by the rotating grinder assembly of prior to reaching the hydraulic impeller with dependable fluid propulsion.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the SEG/40/09/E/EX/2/50B for Fluctuating pit inflow rates are managed dynamically by using internal sensors that adapt duty cycles autonomously, supporting consistent property operation.
