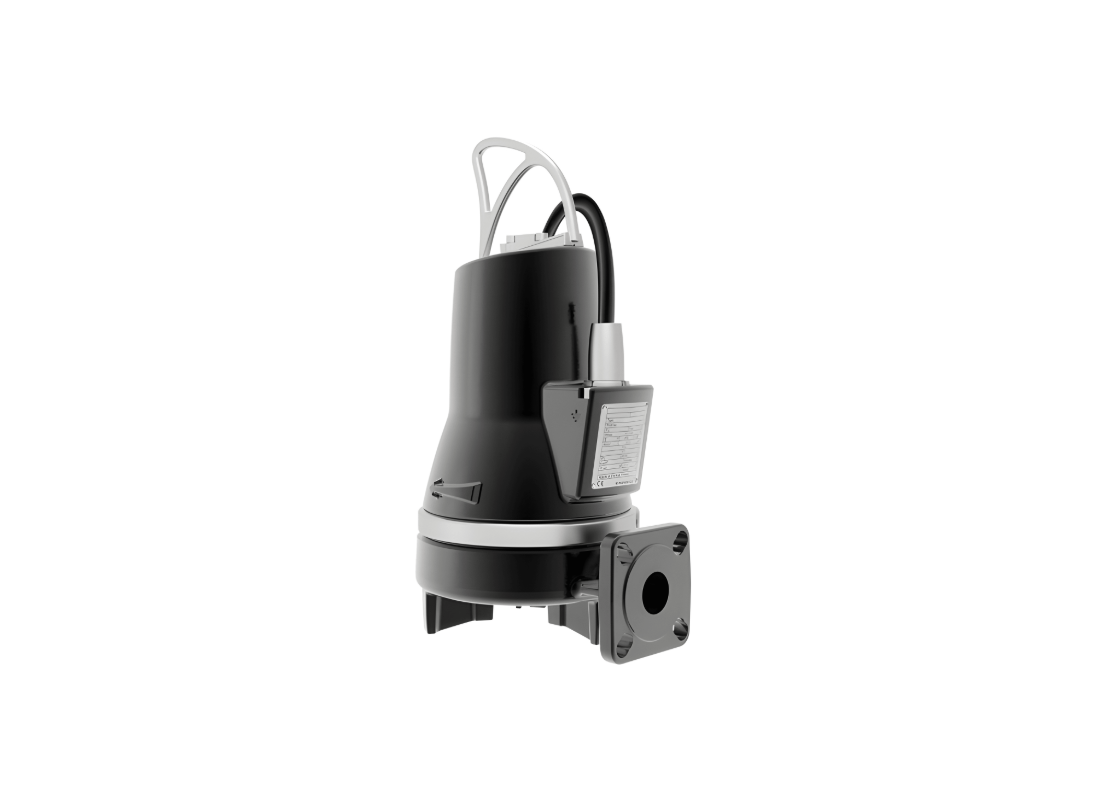

Grundfos SEG.40.09.EX.2.1.502 Cast Iron Sealed Plug Wastewater Pump for Waste Discharge with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Facing severe operational load challenges in pressurized wastewater networks, the Grundfos SEG.40.09.EX.2.1.502 delivers heavy-duty reliability. Grundfos SEG pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This unit provides highly effective fluid transfer where natural gravity drainage is structurally impossible.
The internal blueprint integrates an aggressive grinder system capable of destructing volatile solids into small manageable pieces, permitting easy transport through restrictive localized pipes. The central housing features dense cast iron providing immense resistance to abrasive matter. A smooth external casting definitively prevents foul dirt.
Operating with pristine hydraulic stability, the motor delivers exactly 0.9 kW of dynamic rated power while connecting safely via a totally sealed protective plug connection. Capable of achieving a maximum head of 14.4 meters and a continuous maximum flow of 250 L/Min, this single-phase 240v setup flawlessly maintains optimal internal fluid momentum.
Developed with operational safety as a fundamental priority, this pumping solution is equipped with a heavily insulated electrical harness. The specialized power cable incorporates dedicated wires for thermal sensors buried deeply within the main motor winding. This strict arrangement constantly guards against internal temperature spikes.
Features
- Constructed with an EN-GJL-200 cast iron impeller for extreme durability.
- Features an innovative ATEX II 2 G Ex db explosion proof protection standard.
- Includes a 10 meter power cable for flexible submerged installation depth.
- Operates with a rated current of 6 Amps under full mechanical load.
- Designed with a 40 mm DIN outlet connection for seamless piping integration.
- Incorporates internal SiC/SiC shaft sealing to prevent internal fluid ingress.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 14.4 m |
| Power | 0.9 kW / 240v |
| Rated Current | 6 Amps |
| Suitable For | Toilet Waste |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Pumping performance for the Grundfos SEG.40.09.EX.2.1.502 provides up to 14.4 m of vertical dynamic lift, depending on system friction and line sizing.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the SEG.40.09.EX.2.1.502 delivers 0.9 kW on a 240 V single-phase line drawing 6 Amps.
Where is this pump commonly installed and utilized?
Water management applications designate the SEG-40-09-EX-2-1-502 for patented grinder mechanism on shreds fibrous debris and sanitary textiles into fine particulate slurry before volute intake, supporting consistent property operation.
How does this pump connect to standard plumbing and flanged lines?
Plumbing integration on the SEG 40 09 EX 2 1 502 utilizes a dedicated G 40 layout for reliable pipeline connection.
How much fluid can this pump evacuate during peak demand?
Discharge throughput on the SEG/40/09/EX/2/1/502 reaches a maximum flow rate of approximately 250 L/Min under standard operating conditions.
