SKU: 96075898

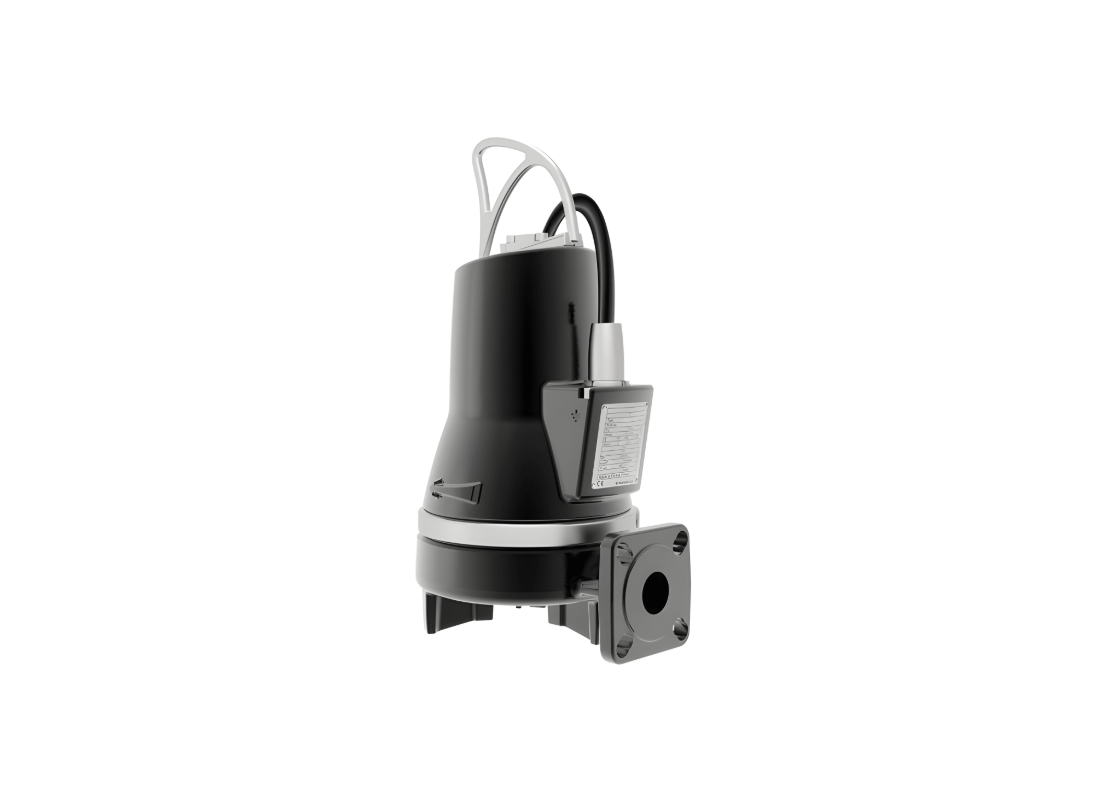

Grundfos SEG.40.09.EX.2.50B Cast Iron Sealed Plug Wastewater Pump for Submerged Setups with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting an advanced primary structural material choice and dense casting geometry, the Grundfos SEG.40.09.EX.2.50B delivers tremendous subterranean resilience. Grundfos SEG pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. Constructed from high-strength components, it aggressively excels in restrictive fluid environments.
Deep at the mechanical core, this industrial pump features an aggressive grinder system that destructs dense solids into fine particles, allowing seamless transfer through restricted municipal piping. The external housing surface remains uniformly smooth to prevent foul dirt from physically adhering to the bare chassis, extending operational lifespans.
Delivering formidable kinetic force directly into the internal fluid columns, the motor leverages exactly 0.9 kW of robust operational output. Engineered explicitly for commercial three-phase 415v grids, this highly reliable unit achieves a maximum head limit of 14.4 meters while continuously circulating a maximum flow of 250 L/Min effectively.
Developed with operational safety as a fundamental priority, this pumping solution is equipped with a heavily insulated electrical harness. The specialized power cable incorporates dedicated wires for thermal sensors buried deeply within the main motor winding. This strict arrangement constantly guards against internal temperature spikes.
Features
- Built with an extremely resilient 40 mm nominal diameter DIN outlet port configuration.
- Draws exactly 3 Amps of stable rated current during continuous maximum displacement.
- Designed lacking an internal start capacitor to maximize heavy-duty continuous reliability.
- Includes a rugged ten meter power cable ensuring versatile underground deployment ranges.
- Evaluated successfully under demanding ATEX II 2 G Ex db IIB T4/T3 Gb explosion criteria.
- Provides a formidable maximum operational pressure resilience exceeding 6 static bars.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 14.4 m |
| Power | 0.9 kW / 415v |
| Rated Current | 3 Amps |
| Suitable For | Submerged Setups |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
To overcome vertical elevation resistance, the Grundfos SEG.40.09.EX.2.50B develops a maximum pumping head of approximately 14.4 m.
How much electricity and current does this pump draw under load?
Electrical power for the SEG.40.09.EX.2.50B requires a 415 V three-phase connection, driving an efficient 0.9 kW motor that draws 3 Amps.
Which pumping tasks and system installations are ideal for this unit?
Suited for diverse installations, the SEG-40-09-EX-2-50B performs At the suction intake, incorporates an external cutting mechanism that fragments sanitary textiles and solids into minute slurry with dependable fluid propulsion.
How does this pump connect into wet well pipework?
Mechanical mounting for the SEG 40 09 EX 2 50B is configured around a standard G 40 for straightforward pit alignment.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the SEG/40/09/EX/2/50B sustains up to 250 L/Min of volumetric throughput.
