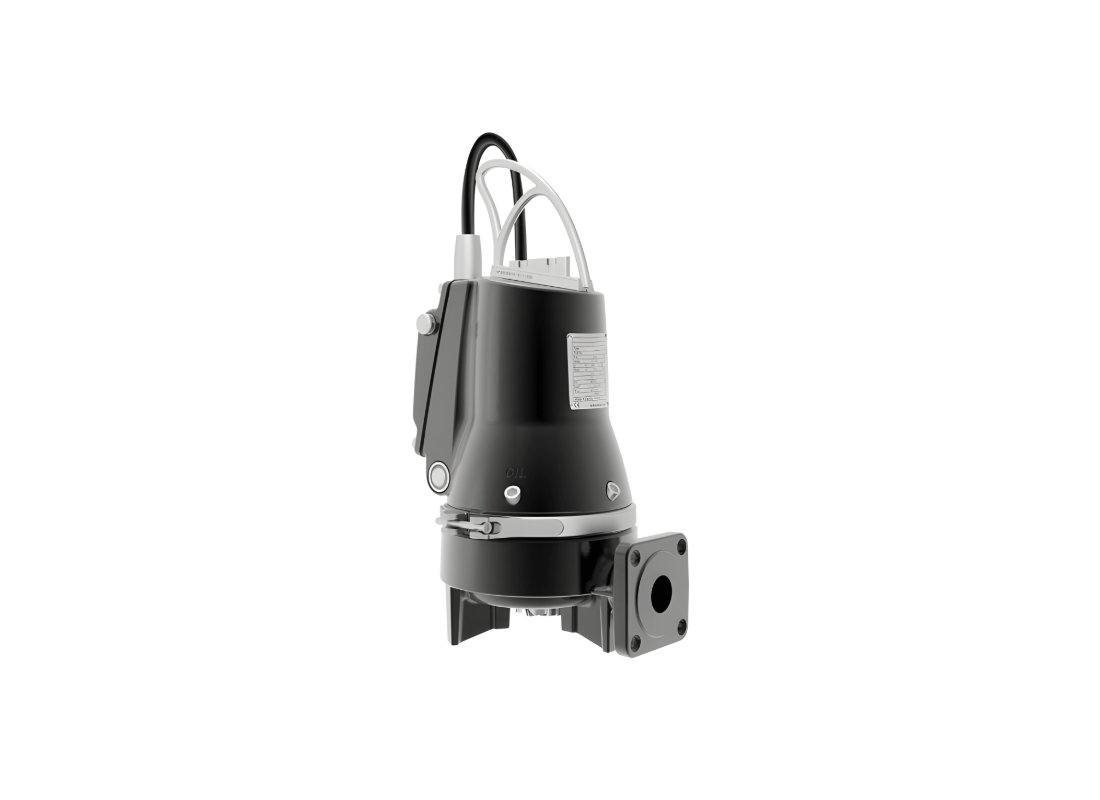

Grundfos SEG.40.12.E.EX.2.50B Cast Iron AUTOADAPT Wastewater Pump for Multiple Pumps with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Directly addressing continuous operating cost scaling and absolute system protection, the Grundfos SEG.40.12.E.EX.2.50B delivers exceptional commercial consistency. Grundfos SEG AUTOADAPT pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This technological solution decreases power consumption while improving fluid evacuation speeds.
Centered deep within the casing resides a dedicated grinder system explicitly configured to destruct volatile solids into highly manageable tiny pieces, successfully enabling frictionless transit through restricted piping structures. The outer casting surface is purposefully crafted to be entirely smooth, limiting the ability of organic dirt to physically adhere.
Producing a remarkably reliable 1.2 kW of pure rotational mechanical output, this submersible solution provides incredibly consistent internal hydraulic pressure. Calibrated explicitly for three-phase 415v electrical grids, the pump sustains a formidable maximum head of 20.7 meters while processing a continuous maximum flow of 250 L/Min effortlessly.
Setting an advanced standard for autonomous operations, the AUTOADAPT controller bypasses the requirement for external monitoring nodes. When multiple units operate in matching containment vessels, smart logic balances the workload. The power cable weaves thermal sensors directly into the motor windings for absolute heat protection.
Features
- Monitors critical operational sequences and refuses to start if the phase sequence is inverted.
- Pulls exactly 3.2 Amps of maximum continuous rated current during aggressive grinding cycles.
- Integrates a comprehensive random start delay mechanism resolving complex power grid shutdowns.
- Executes an autonomous self-calibration diagnostic check immediately after every active pump cycle.
- Deploys an independent anti-seizing routine preventing the primary bearing assembly from locking.
- Certified fully compliant under rigorous ATEX II 2G Ex db h ib IIB T4 Gb explosion proofing.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 20.7 m |
| Power | 1.2 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Multiple Pumps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which pumping tasks and system installations are ideal for this unit?
Suited for diverse installations, the Grundfos SEG.40.12.E.EX.2.50B performs Uphill sewage pumping through small conduits is facilitated by the patented cutter blades on , which shred fibrous matter rapidly with dependable fluid propulsion.
How deep can this pump be submerged underwater?
Routine operational boundaries allow the SEG.40.12.E.EX.2.50B to function across standard liquid temperatures with steady thermal stability.
What discharge flow rate does this pump maintain during peak operation?
Displacing fluid into connected headers, the SEG-40-12-E-EX-2-50B sustains up to 250 L/Min of volumetric throughput.
How much pumping height does this pump provide?
Vertical elevation capability on the SEG 40 12 E EX 2 50B reaches a maximum dynamic head of approximately 20.7 m under rated conditions.
What motor power rating and running current power this pump?
Powered by a dedicated 1.2 kW motor, the SEG/40/12/E/EX/2/50B connects to 415 V three-phase mains power with a rated current draw of 3.2 Amps.
