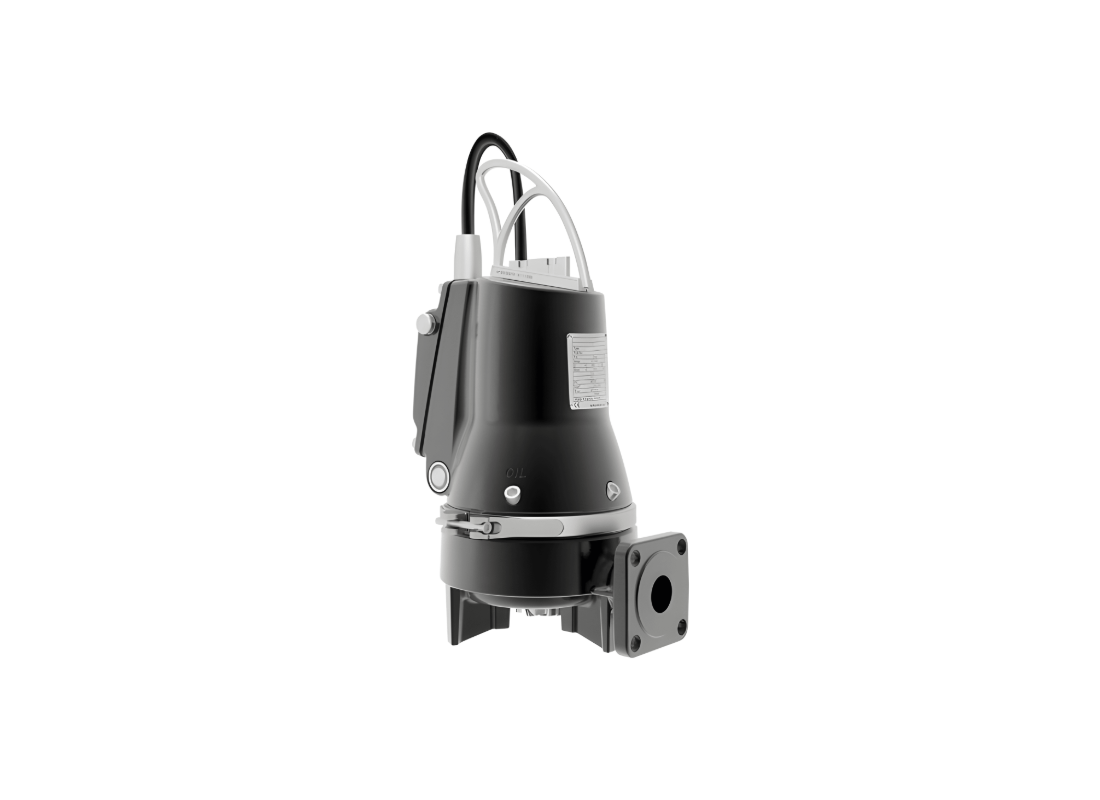

Grundfos SEG.40.15.E.EX.2.50B Cast Iron AUTOADAPT Wastewater Pump for Distributed Work with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Facing severe operational load challenges in pressurized wastewater networks, the Grundfos SEG.40.15.E.EX.2.50B delivers heavy-duty reliability. Grundfos SEG AUTOADAPT pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This unit provides highly effective fluid transfer where natural gravity drainage is structurally impossible.
The internal blueprint integrates an aggressive grinder system capable of destructing volatile solids into small manageable pieces, permitting easy transport through restrictive localized pipes. The central housing features dense cast iron providing immense resistance to abrasive matter. A smooth external casting definitively prevents foul dirt.
Operating with pristine hydraulic stability, the motor delivers exactly 1.5 kW of dynamic rated power while connecting safely via a totally sealed protective plug connection. Capable of achieving a maximum head of 25.8 meters and a continuous maximum flow of 250 L/Min, this three-phase 415v setup flawlessly maintains optimal internal fluid momentum.
Setting an advanced standard for autonomous operations, the AUTOADAPT controller bypasses the requirement for external monitoring nodes. When multiple units operate in matching containment vessels, smart logic balances the workload. The power cable weaves thermal sensors directly into the motor windings for absolute heat protection.
Features
- Requires exactly 3.8 Amps of continuous rated current while actively grinding dense biological solids.
- Engineered deliberately without a standard external electrical plug connector for hardwired terminals.
- Configured intelligently with an internal alarm relay supporting both normally open and closed states.
- Operates smoothly under heavily demanding maximum ambient environmental temperature limits of 40 degrees.
- Provides a completely sealed IP68 enclosure class rating preventing submerged subterranean fluid leaks.
- Utilizes precision molded EN-GJL-200 standard cast iron exclusively for the destructive grinder impeller.
SPECIFICATIONS
| Max Flow | 250 L/Min |
| Max Head | 25.8 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.8 Amps |
| Suitable For | Distributed Work |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What primary fluid transfer and circulation roles are designated for this pump?
Water management applications designate the Grundfos SEG.40.15.E.EX.2.50B for Community inflow variations are managed by via integrated autonomous logic that adjusts start delays automatically, supporting consistent property operation.
What maximum flow rate does this pump achieve during heavy influx?
Displacing fluid into connected headers, the SEG.40.15.E.EX.2.50B sustains up to 250 L/Min of volumetric throughput.
What maximum vertical water column can this pump maintain?
Vertical elevation capability on the SEG-40-15-E-EX-2-50B reaches a maximum dynamic head of approximately 25.8 m under rated conditions.
How much power does the motor consume during standard operation?
Powered by a dedicated 1.5 kW motor, the SEG 40 15 E EX 2 50B connects to 415 V three-phase mains power with a rated current draw of 3.8 Amps.
What primary water management tasks is this pump best suited for?
Everyday water management duties for the SEG/40/15/E/EX/2/50B focus on Sanitary waste is disintegrated by the rotating cutter head in into pumpable particulate matter before entering discharge pipes, providing reliable pumping performance.
