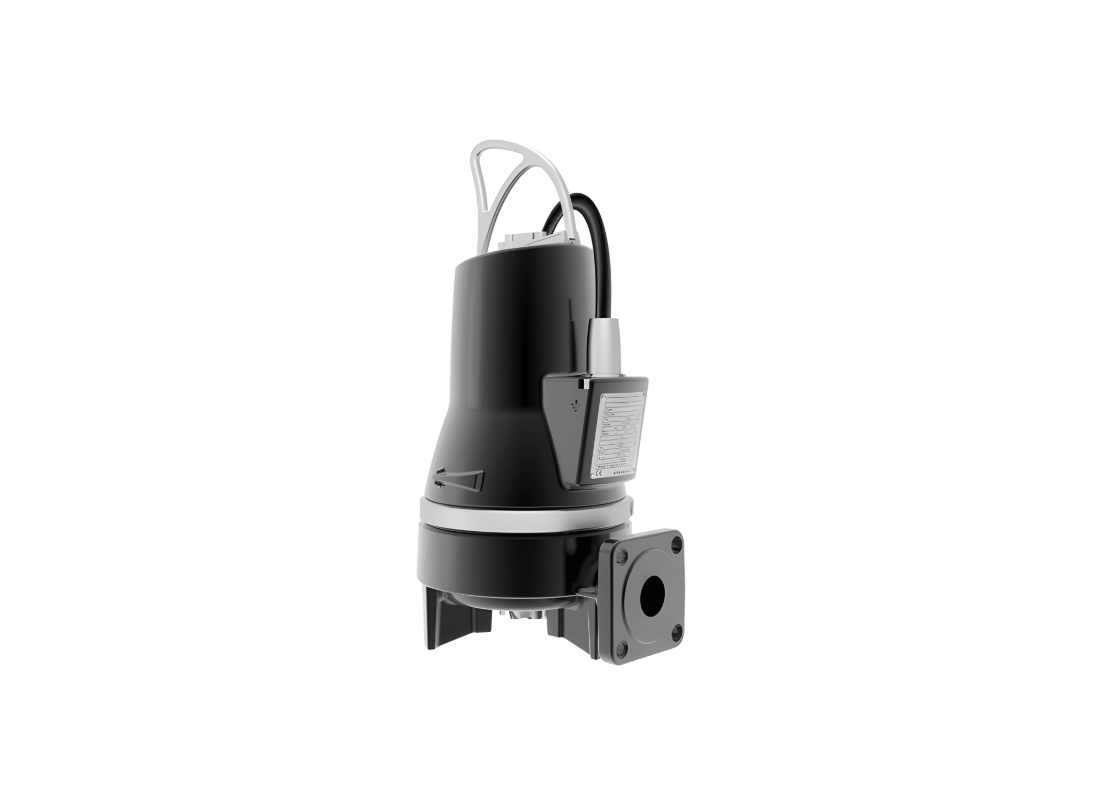

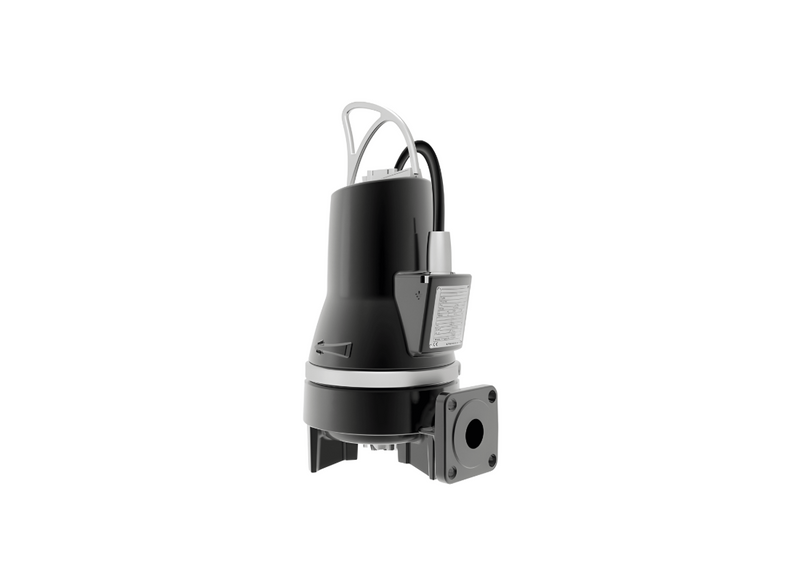

Grundfos SEG.40.26.E.EX.2.50B Cast Iron AUTOADAPT Wastewater Pump for Heavy Discharge with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing optimized internal fluid velocity paths, the Grundfos SEG.40.26.E.EX.2.50B establishes pure circulation stability. Grundfos SEG AUTOADAPT pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This profound system streamlines liquid momentum throughout sanitary pipelines, actively preventing dangerous and sudden pressure drops.
The heavy pumping mechanism features an aggressive grinder system that destructs incoming structural solids into small pieces, facilitating unobstructed evacuation sequences through restrictive diameter pathways. To preserve external cleanliness, the casing possesses a smooth surface that naturally prevents suspended organic dirt from permanently sticking.
Precision engineered to generate immense propulsion, this industrial model reliably outputs 2.6 kW of sustained rotational power. Designed for commercial three-phase 415v infrastructures, the submerged unit commands an impressive maximum head of 33.8 meters and actively transfers a maximum flow of 283 L/Min. The assembly uses a sealed power plug connection.
Setting an advanced standard for autonomous operations, the AUTOADAPT controller bypasses the requirement for external monitoring nodes. When multiple units operate in matching containment vessels, smart logic balances the workload. The power cable weaves thermal sensors directly into the motor windings for absolute heat protection.
Features
- Operates efficiently with a measured 6.1 Amps of rated continuous current under full load.
- Features a secondary CER/CARNBR shaft sealing architecture for supreme liquid isolation.
- Evaluated successfully under the demanding ATEX II 2G Ex db h ib IIB T4 Gb explosion standard.
- Engineered with a 40 mm nominal diameter DIN outlet port for standardized pipeline integration.
- Designed to achieve an impressive 81.9 percent motor efficiency while fully submerged.
- Operates smoothly at an internal rated speed of 2870 rpm for maximized biological shearing.
SPECIFICATIONS
| Max Flow | 283 L/Min |
| Max Head | 33.8 m |
| Power | 2.6 kW / 415v |
| Rated Current | 6.1 Amps |
| Suitable For | Heavy Discharge |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How high can this pump push fluid through discharge risers?
Vertical elevation capability on the Grundfos SEG.40.26.E.EX.2.50B reaches a maximum dynamic head of approximately 33.8 m under rated conditions.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 2.6 kW motor, the SEG.40.26.E.EX.2.50B connects to 415 V three-phase mains power with a rated current draw of 6.1 Amps.
What primary water management tasks is this pump best suited for?
Everyday water management duties for the SEG-40-26-E-EX-2-50B focus on At the intake port, the semi-open cutter arrangement on shears solids and fibers against a stationary cutting ring, providing reliable pumping performance.
What property water management tasks match this pump?
Suited for diverse installations, the SEG 40 26 E EX 2 50B performs Autonomous pumping in is governed by built-in electronic level sensors, eliminating external float switches with dependable fluid propulsion.
How much fluid can this pump evacuate during peak demand?
Peak fluid displacement on the SEG/40/26/E/EX/2/50B delivers up to 283 L/Min under rated operating conditions.
