SKU: 96075914

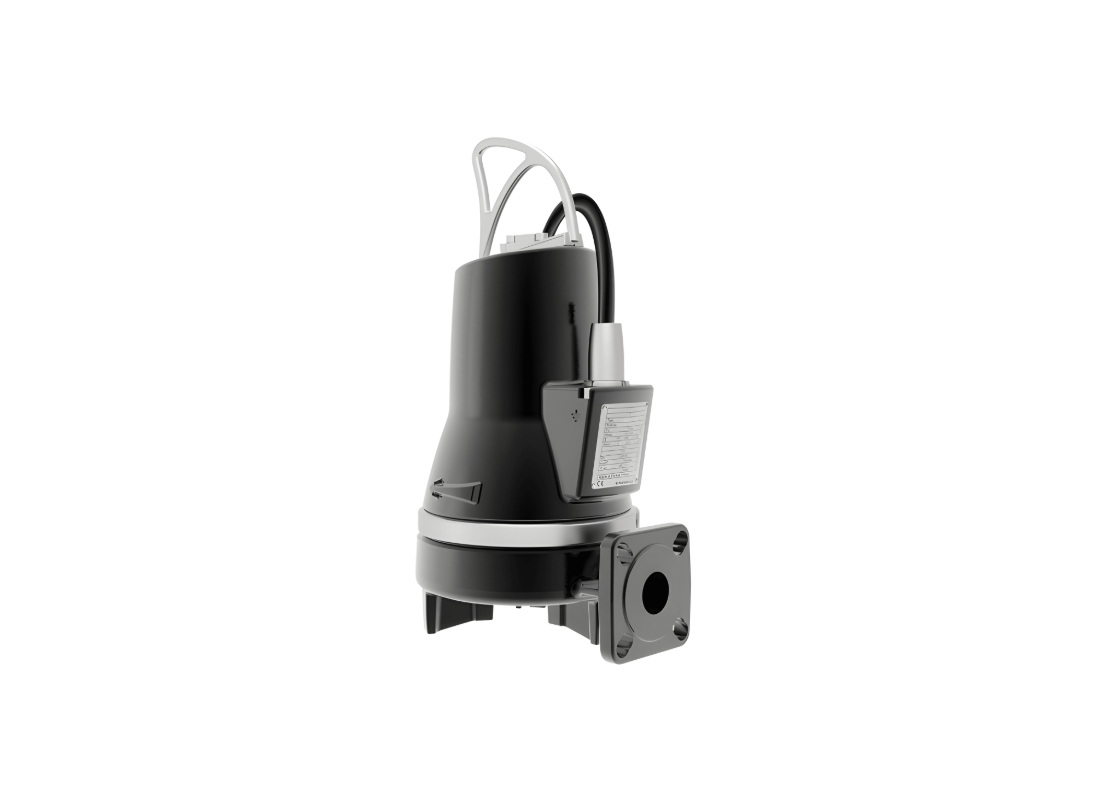

Grundfos SEG.40.26.EX.2.50B Cast Iron Sealed Plug Wastewater Pump for Pressure Mains with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Directly addressing continuous operating cost scaling and absolute system protection, the Grundfos SEG.40.26.EX.2.50B delivers exceptional commercial consistency. Grundfos SEG pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This technological solution decreases power consumption while improving fluid evacuation speeds.
Centered deep within the casing resides a dedicated grinder system explicitly configured to destruct volatile solids into highly manageable tiny pieces, successfully enabling frictionless transit through restricted piping structures. The outer casting surface is purposefully crafted to be entirely smooth, limiting the ability of organic dirt to physically adhere.
Producing a remarkably reliable 2.6 kW of pure rotational mechanical output, this submersible solution provides incredibly consistent internal hydraulic pressure. Calibrated explicitly for three-phase 415v electrical grids, the pump sustains a formidable maximum head of 33.8 meters while processing a continuous maximum flow of 283 L/Min effortlessly.
Developed with operational safety as a fundamental priority, this pumping solution is equipped with a heavily insulated electrical harness. The specialized power cable incorporates dedicated wires for thermal sensors buried deeply within the main motor winding. This strict arrangement constantly guards against internal temperature spikes.
Features
- Requires exactly 6 Amps of perfectly stable rated current during continuous maximum displacement scenarios.
- Built with an extremely resilient 40 millimeter nominal diameter DIN oriented internal outlet port configuration.
- Provides a formidable maximum operational internal structural pressure resilience drastically exceeding 6 static bars.
- Includes a distinctly rugged ten meter external power cable ensuring highly versatile underground deployment ranges.
- Designed lacking an internal starting capacitor mechanism to absolutely maximize heavy-duty continuous mechanical reliability.
- Evaluated successfully under incredibly demanding ATEX II 2 G Ex db IIB T4/T3 Gb explosion criteria.
SPECIFICATIONS
| Max Flow | 283 L/Min |
| Max Head | 33.8 m |
| Power | 2.6 kW / 415v |
| Rated Current | 6 Amps |
| Suitable For | Pressure Mains |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical connection and motor power run this pump?
Powered by a dedicated 2.6 kW motor, the Grundfos SEG.40.26.EX.2.50B connects to 415 V three-phase mains power with a rated current draw of 6 Amps.
What primary fluid transfer and circulation roles are designated for this pump?
Everyday water management duties for the SEG.40.26.EX.2.50B focus on pressurized conduits, providing reliable pumping performance.
What connection layout and port dimensions are featured on this unit?
Connecting via a standard guide rail auto-coupling, the SEG-40-26-EX-2-50B aligns cleanly with system plumbing headers.
How much water flow can this pump deliver per minute?
Peak fluid displacement on the SEG 40 26 EX 2 50B delivers up to 283 L/Min under rated operating conditions.
What is the maximum vertical lift capacity of this pump?
Fluid elevation through vertical risers reaches up to 33.8 m with the SEG/40/26/EX/2/50B under standard duty points.
