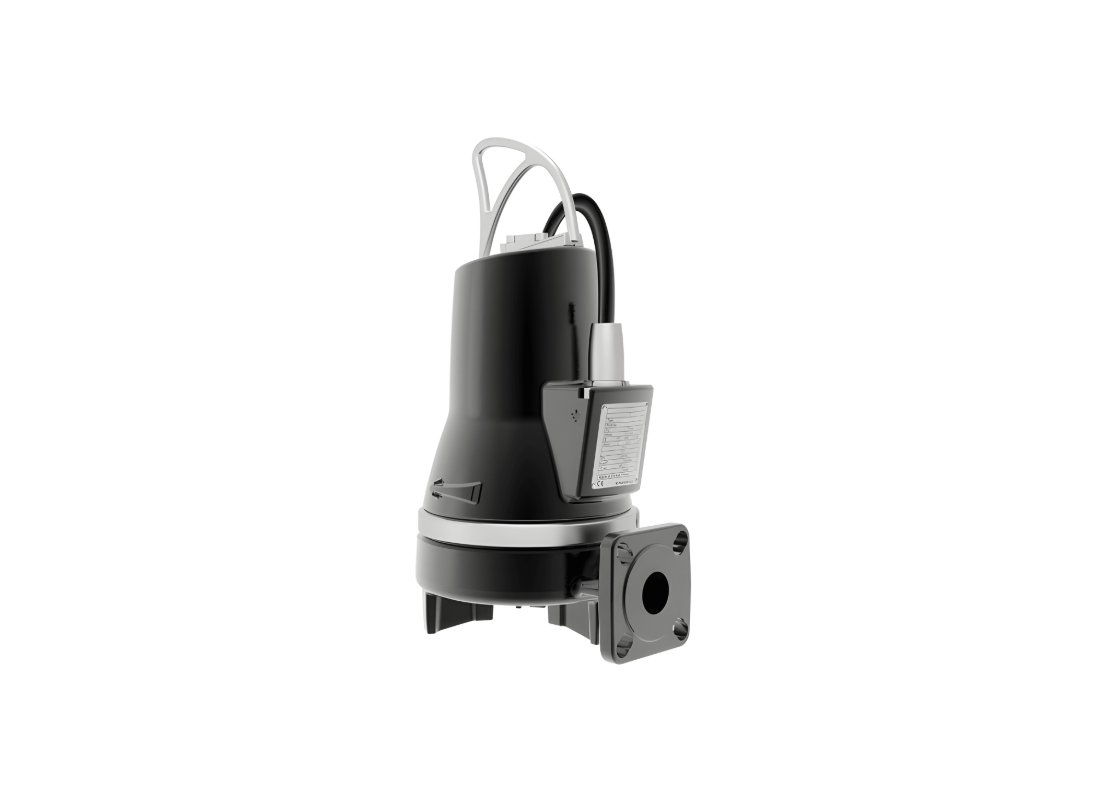

Grundfos SEG.40.31.EX.2.50B Cast Iron Explosion-Proof Wastewater Pump for Raw Wastewater with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting an advanced primary structural material choice and dense casting geometry, the Grundfos SEG.40.31.EX.2.50B delivers tremendous subterranean resilience. Grundfos SEG pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. Constructed from high-strength components, it aggressively excels in restrictive fluid environments.
Deep at the mechanical core, this industrial pump features an aggressive grinder system that destructs dense solids into fine particles, allowing seamless transfer through restricted municipal piping. The external housing surface remains uniformly smooth to prevent foul dirt from physically adhering to the bare chassis, extending operational lifespans.
Delivering formidable kinetic force directly into the internal fluid columns, the motor leverages exactly 3.1 kW of robust operational output. Engineered explicitly for commercial three-phase 415v grids, this highly reliable unit achieves a maximum head limit of 37 meters while continuously circulating a maximum flow of 283 L/Min effectively.
Developed with operational safety as a fundamental priority, this pumping solution is equipped with a heavily insulated electrical harness. The specialized power cable incorporates dedicated wires for thermal sensors buried deeply within the main motor winding. This strict arrangement constantly guards against internal temperature spikes.
Features
- Draws exactly 7 Amps of perfectly stable rated current during continuous maximum biological displacement.
- Constructed internally with incredibly dense EN 1561 standard iron for extreme external durability.
- Engineered fully without an integrated starter plug to safely allow complex localized terminal wiring.
- Operates efficiently without requiring internal start capacitors, increasing overall electromechanical resilience.
- Evaluated successfully under demanding ATEX II 2 G Ex db IIB T4/T3 Gb explosion resistance criteria.
- Delivers highly impressive eighty-four percent motor efficiency while fully submerged under maximum liquid strain.
SPECIFICATIONS
| Max Flow | 283 L/Min |
| Max Head | 37 m |
| Power | 3.1 kW / 415v |
| Rated Current | 7 Amps |
| Suitable For | Raw Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What connection layout and port dimensions are featured on this unit?
Connecting via a standard guide rail auto-coupling, the Grundfos SEG.40.31.EX.2.50B aligns cleanly with system plumbing headers.
How much water volume can this unit move through the pipework?
Peak fluid displacement on the SEG.40.31.EX.2.50B delivers up to 283 L/Min under rated operating conditions.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 37 m with the SEG-40-31-EX-2-50B under standard duty points.
Does this pump run on standard household power or three-phase power?
It operates on 415 V three-phase power, with the SEG 40 31 EX 2 50B utilizing a durable 3.1 kW motor rated at 7 Amps.
What property water management tasks match this pump?
System installations deploy the SEG/40/31/EX/2/50B for Velocity through narrow discharge lines is maintained by the high-torque cutting blades of , which pulverize solids at entry, maintaining steady circulation and reliable line pressure.
