SKU: 99274387

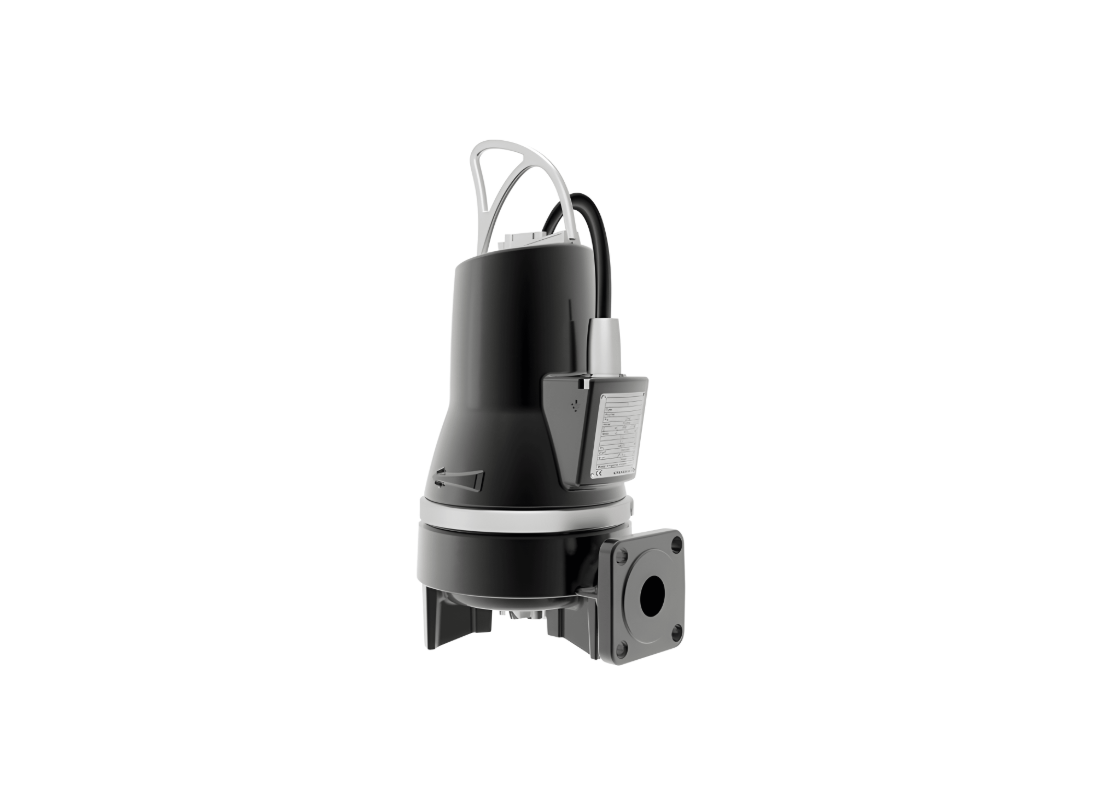

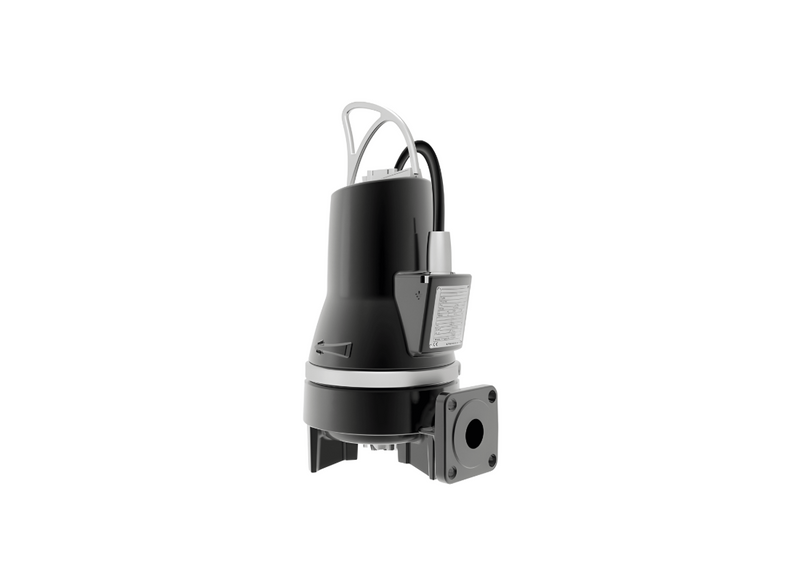

Grundfos SEG.50.31.EX.2.50B Cast Iron Sealed Plug Wastewater Pump for Small Pipes with Semi-open Grinder
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Directly addressing continuous operating cost scaling and absolute system protection, the Grundfos SEG.50.31.EX.2.50B delivers exceptional commercial consistency. Grundfos SEG pumps are specifically designed for pressurized pumping of wastewater with discharge from toilets. This technological solution decreases power consumption while improving fluid evacuation speeds.
Centered deep within the casing resides a dedicated grinder system explicitly configured to destruct volatile solids into highly manageable tiny pieces, successfully enabling frictionless transit through restricted piping structures. The outer casting surface is purposefully crafted to be entirely smooth, limiting the ability of organic dirt to physically adhere.
Producing a remarkably reliable 3.1 kW of pure rotational mechanical output, this submersible solution provides incredibly consistent internal hydraulic pressure. Calibrated explicitly for three-phase 415v electrical grids, the pump sustains a formidable maximum head of 23.8 meters while processing a continuous maximum flow of 516 L/Min effortlessly.
Developed with operational safety as a fundamental priority, this pumping solution is equipped with a heavily insulated electrical harness. The specialized power cable incorporates dedicated wires for thermal sensors buried deeply within the main motor winding. This strict arrangement constantly guards against internal temperature spikes.
Features
- Pulls exactly 7 Amps of maximum continuous rated current during highly aggressive deep trench organic grinding cycles.
- Built with a highly expanded 50 millimeter nominal diameter DIN oriented internal outlet port pipe configuration.
- Includes a distinctly rugged ten meter external power cable seamlessly ensuring highly versatile underground deployment depths.
- Certified fully compliant under extremely rigorous ATEX II 2 G Ex db IIB T4/T3 Gb hazardous environment explosion proofing standards.
- Operates smoothly at an internal rated operational speed of 2900 rpm for absolutely maximizing incoming biological solid shearing.
- Delivers highly impressive eighty-four percent internal motor efficiency while fully submerged under maximum physical liquid strain.
SPECIFICATIONS
| Max Flow | 516 L/Min |
| Max Head | 23.8 m |
| Power | 3.1 kW / 415v |
| Rated Current | 7 Amps |
| Suitable For | Small Pipes |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum flow capacity of this pump per minute?
Moving liquid through the system, the Grundfos SEG.50.31.EX.2.50B maintains an operational throughput of up to 516 L/Min during peak demand.
How high can this pump lift water vertically?
Dynamic lift generated by the SEG.50.31.EX.2.50B reaches a maximum elevation head of approximately 23.8 m across discharge lines.
What voltage supply and motor power does this pump need?
Connecting across 415 V three-phase lines, the SEG-50-31-EX-2-50B draws approximately 7 Amps with an efficient 3.1 kW motor.
Where is this pump commonly installed and utilized?
Primary tasks for the SEG 50 31 EX 2 50B include Municipal sewage transfer is streamlined by the intake shredder on , converting raw solids into a fine pumpable slurry, delivering efficient water management across residential and rural systems.
How does this pump connect to standard plumbing and flanged lines?
Discharge pipework interfaces directly with the SEG/50/31/EX/2/50B through a standard standard connection for quick field installation.
