SKU: 99774688

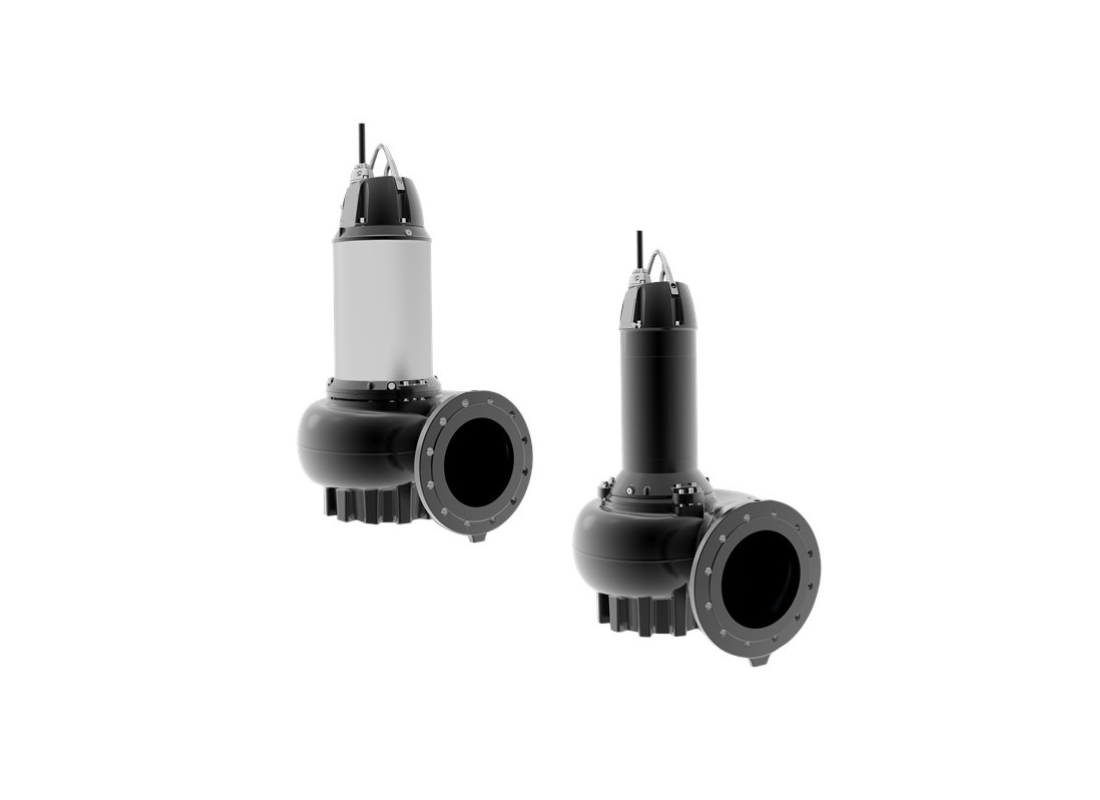

Grundfos SEV.80.80.170.2.52H.N.51D.A.T Cast Iron 2-Pole Wastewater Pump for garages with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing stable internal fluid velocity paths and robust hydraulic configuration, the SEV.80.80.170.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump is engineered to assist demanding fluid displacement in blocks of flats and continuous industrial effluent applications. The internal pathway design is structured to handle challenging municipal sewage protocols without compromising physical integrity. This model is suitable for extensive water drainage operations across underground car wash areas.
Driven by a 17 kW / 415v three-phase power unit, the hydraulic system supports operation in scenarios requiring a maximum head of 49 m and a peak flow capacity reaching approximately 2586 L/Min. The structural port mapping utilizes a 100 mm inlet combined with an 80 mm outlet to direct raw wastewater effectively. Electrical current is securely regulated, registering at 33 Amps under standard full-load capacity metrics.
The pump architecture operates with a substantial net weight of 304 kg, delivering extreme stability against high-pressure fluid transients. Cast iron EN 1561 EN-GJL-250 forms the primary housing, chosen to withstand exposure to liquids ranging up to 40 degrees Celsius. This specific model is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well, ensuring continuous infrastructure readiness.
Maintenance parameters are meticulously configured, featuring a dedicated double shaft seal housed inside a proprietary cartridge design for expedited field swaps. The system also includes an external cable entry connector, developed for safe and immediate disconnection of the main electrical supply lines without removing the top motor housing. These design choices are intended to support long-term facility uptime.
Features
- Advanced SuperVortex impeller fabricated from cast iron EN 1563 EN-GJS-500-7.
- Built-in internal moisture sensing technology for continuous cavity monitoring.
- IP68 certified motor enclosure for permanent underwater operations.
- Primary and secondary sealing utilizing silicon carbide and carbon components.
- Two-pole motor configuration designed for dynamic rotational speed.
- Internal thermal protection mechanism via integrated thermistors.
SPECIFICATIONS
| Max Flow | 2586 L/Min |
| Max Head | 49 m |
| Power | 17 kW / 415v |
| Rated Current | 33 Amps |
| Suitable For | Public Buildings |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this unit move through the pipework?
At full operating capacity, the Grundfos SEV.80.80.170.2.52H.N.51D.A.T moves up to 2586 L/Min to keep liquid levels controlled during peak inflow.
What maximum vertical elevation head can this pump achieve?
Under rated operating head, the SEV.80.80.170.2.52H.N.51D.A.T can lift water to a maximum dynamic head of approximately 49 m through vertical risers.
Does this pump run on standard household power or three-phase power?
Running on 415 V three-phase power supplies, the SEV-80-80-170-2-52H-N-51D-A-T is driven by a 17 kW motor rated at 33 Amps.
What property water management tasks match this pump?
Routine operational tasks matching the SEV 80 80 170 2 52H N 51D A T encompass Large wastewater solids traverse freely thanks to an expansive 80 mm spherical through-let designed into the SuperVortex channel across connected networks.
What mounting system enables fast installation and retrieval of this pump?
Installation of the SEV/80/80/170/2/52H/N/51D/A/T is streamlined using a standard guide rail auto-coupling, enabling fast docking onto existing discharge lines.
