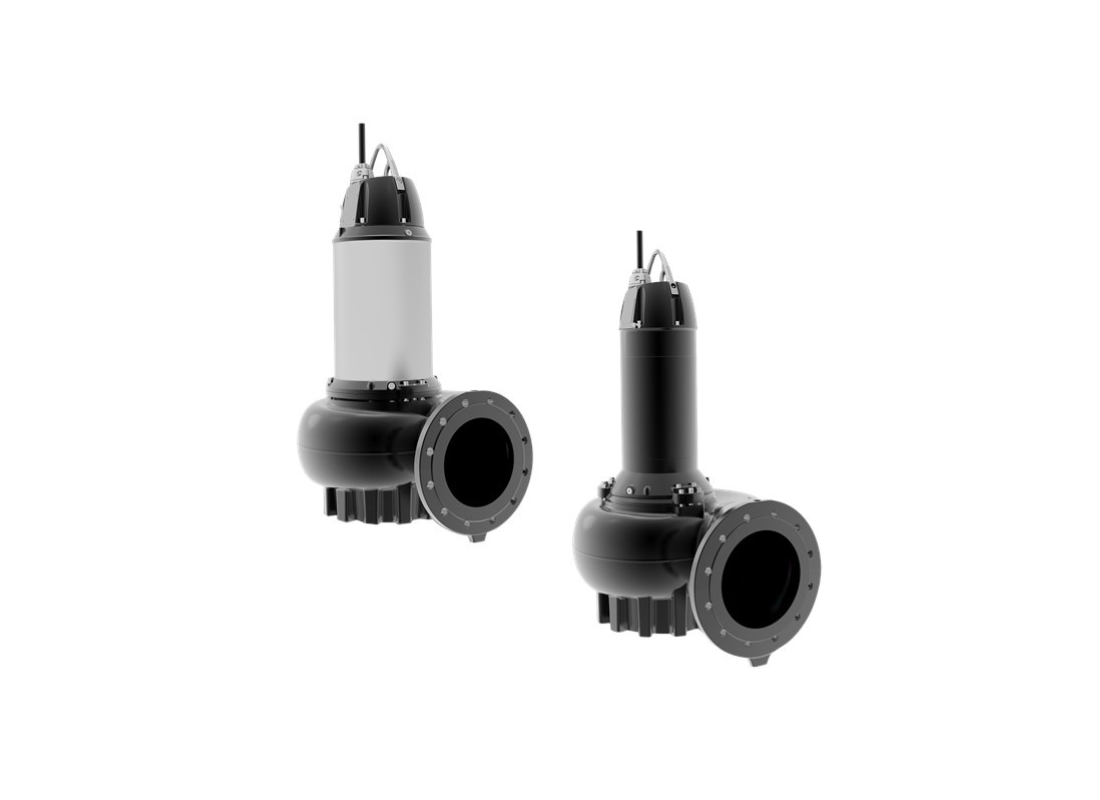

Addressing long-term operating efficiency configurations and rigorous safety protection containment, the SEV.80.80.185.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump is configured for deployment in heavy-duty municipal pumping stations and public restaurant complexes. Designed to manage continuous industrial effluent transfer, the structural integrity of the pump helps manage sustained fluid handling tasks while maintaining baseline operational readiness across diverse commercial environments.
The mechanical output relies on an 18.5 kW / 415v motor layout, engineered for generating a maximum head capacity of 53 m and facilitating a peak liquid flow of approximately 2700 L/Min. The system integrates a 100 mm inlet alongside an 80 mm outlet, mapping an internal velocity corridor capable of processing heavy sewage. System current is precisely metered at 36 Amps, maintaining electrical stability during intense pumping phases.
With a heavy-duty net weight of 295 kg, the device maintains essential base stability within dynamic underwater environments. The housing is primarily cast from high-density cast iron EN 1561 EN-GJL-250, supporting internal fluid temperatures ranging from 0 up to 40 degrees Celsius. The architecture is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well.
To streamline ongoing service protocols, the pump contains a highly specialized double shaft seal within a sealed cartridge structure. This approach permits immediate seal replacement in active field settings. The top-tier cable entry connector acts as a secondary maintenance advantage, allowing technicians to uncouple the power supply safely without entirely opening or removing the sensitive motor enclosure compartment.
Features
- SuperVortex impeller casting featuring an 80 mm free-passage tolerance.
- Class H electrical insulation for elevated internal thermal protection.
- Integrated mechanical moisture sensor for internal breach detection.
- IP68 waterproofing standard applied to the main casing assembly.
- Heavy-duty silicon carbide applied across all shaft sealing interfaces.
- Internal thermistor networks for active motor temperature regulation.
