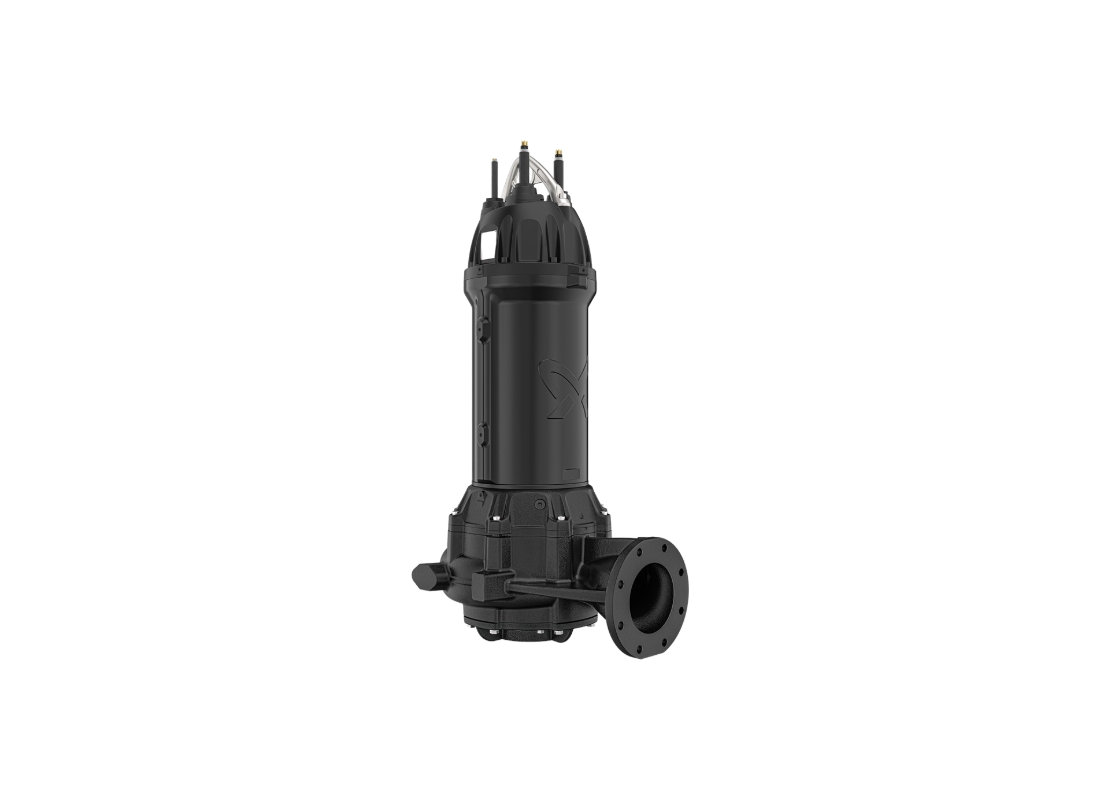

Grundfos SL.56H.210.4.50D.150 Cast Iron High-Head Industrial Wastewater Pump with Open S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Designed for industrial wastewater transfer in demanding environments, the Grundfos SL.56H.210.4.50D.150 is intended for permanent submerged installation. This cast iron unit holds CE EN12050-1 certification and is suitable for treatment facilities and industrial sumps. It is developed for handling untreated wastewater containing solids at temperatures up to 40°C.
The pump features a 21 kW 4-pole motor operating at 1490 rpm on a 3 x 415 V supply. It achieves a maximum flow up to 7860 L/min and a maximum head up to 40 m with a rated current of 52.5 Amps. The system is rated for continuous S1 duty, with thermal management provided by the surrounding liquid during operation.
The hydraulic system uses an Open S-tube impeller with a 340.8 mm actual diameter to handle solids-laden untreated wastewater. The nominal duty head is 23.26 m. The hydraulic design incorporates a DN 200 inlet and a DN 150 (6") outlet, supporting high-volume wastewater transfer while reducing the risk of clogging in industrial collection systems.
Construction features an EN-GJL-250 cast iron pump housing and motor casing with double mechanical shaft seals. Protection is provided by integrated PTO sensors for motor protection and monitoring. The unit is supplied with a 10-metre S1BC4N8-F EMC power cable and an IP68 enclosure suitable for installation depths up to 30 metres.
FEATURES
- Open S-tube impeller with 340.8 mm actual diameter for managing untreated wastewater containing solids.
- EN-GJL-250 cast iron pump housing and motor casing for structural durability in industrial submerged service.
- Double mechanical shaft seal arrangement with SiC/SiC primary seal and Silicon Carbide/Carbon secondary seal.
- Integrated PTO sensors for motor protection and monitoring to ensure operational reliability and safety.
- Supplied with a 10-metre S1BC4N8-F EMC power cable for reliable electrical connection.
- IP68 enclosure suitable for installation depths up to 30 metres and 10 bar maximum operating pressure.
- Compatible with the Grundfos auto-coupling system (97695489) for simplified maintenance and installation.
- Class H motor insulation with support for up to 30 starts per hour during continuous S1 duty cycles.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 7860 L/Min |
| Max Head | 40 m |
| Power | 21 kW / 415v |
| Rated Current | 52.5 Amps |
| Suitable For | Industrial Wastewater |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 200 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical voltage and motor kilowatt output drive this unit?
Running on 415 V three-phase power supplies, the Grundfos SL.56H.210.4.50D.150 is driven by a 21 kW motor rated at 52.5 Amps.
What property water management tasks match this pump?
Routine operational tasks matching the SL.56H.210.4.50D.150 encompass fibrous debris and solids up to 44 mm in diameter across connected networks.
What mounting system enables fast installation and retrieval of this pump?
Installation of the SL-56H-210-4-50D-150 is streamlined using a standard auto-coupling, enabling fast docking onto existing discharge lines.
What is the maximum flow capacity of this pump per minute?
Fluid evacuation capacity for the SL 56H 210 4 50D 150 peaks at approximately 7860 L/Min, providing dependable high-volume drainage.
How high can this pump lift water vertically?
Pumping performance for the SL/56H/210/4/50D/150 provides up to 40 m of vertical dynamic lift, depending on system friction and line sizing.
