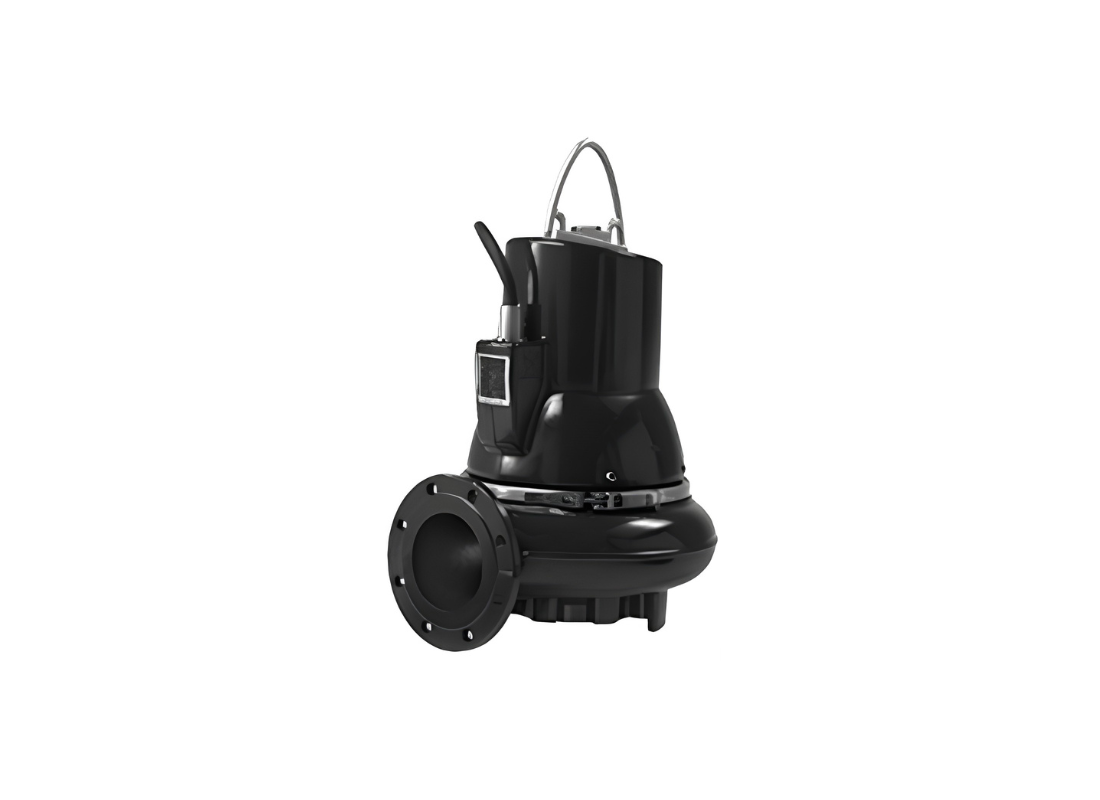

Municipal wastewater systems and centralized lift stations are the primary applications for the Grundfos SL1.100.100.75.4.50B.C, a high-capacity submersible pump certified under CE EN12050-1. This cast iron unit is intended for permanent installation in civil wet wells and is developed for handling raw effluents containing large solids in high-demand municipal networks.
The unit features a 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V supply with a rated current of 14.4 Amps. It achieves a maximum head up to 19.5 m and maximum flow up to 4866 L/min. The motor is designed for continuous S1 duty in untreated wastewater with temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
An S-tube impeller provides a 100 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. Hydraulic connections include a DN 150 inlet and a 4" (100 mm) outlet with DIN flanges. This single-vane hydraulic path facilitates the conveying of raw effluents through municipal discharge piping.
Built with an EN-GJL-250 cast iron pump housing and motor casing, the unit includes a double mechanical SIC/SIC seal system. Integrated PTC sensors and moisture sensors are used for seal and motor monitoring. Motor safety is provided by winding-embedded thermal switches, 10 metres of LYNIFLEX power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for processing wastewater with high solids content.
- 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 14.4 Amps rated current.
- DN 150 inlet and 4" (100 mm) discharge connection for high-volume fluid trajectories in municipal networks.
- Double SIC/SIC mechanical shaft seals with an oil chamber for redundant moisture defence for the stator.
- Integrated PTC sensors and moisture detection for advanced motor health and thermal monitoring.
- Built-in thermal switches within the stator windings for automatic protection against electrical damage.
- 10-metre rugged LYNIFLEX power cable and IP68 enclosure for continuous operation in deep wet wells.
- CE EN12050-1 certified for use in municipal wastewater systems and centralized lift stations.
