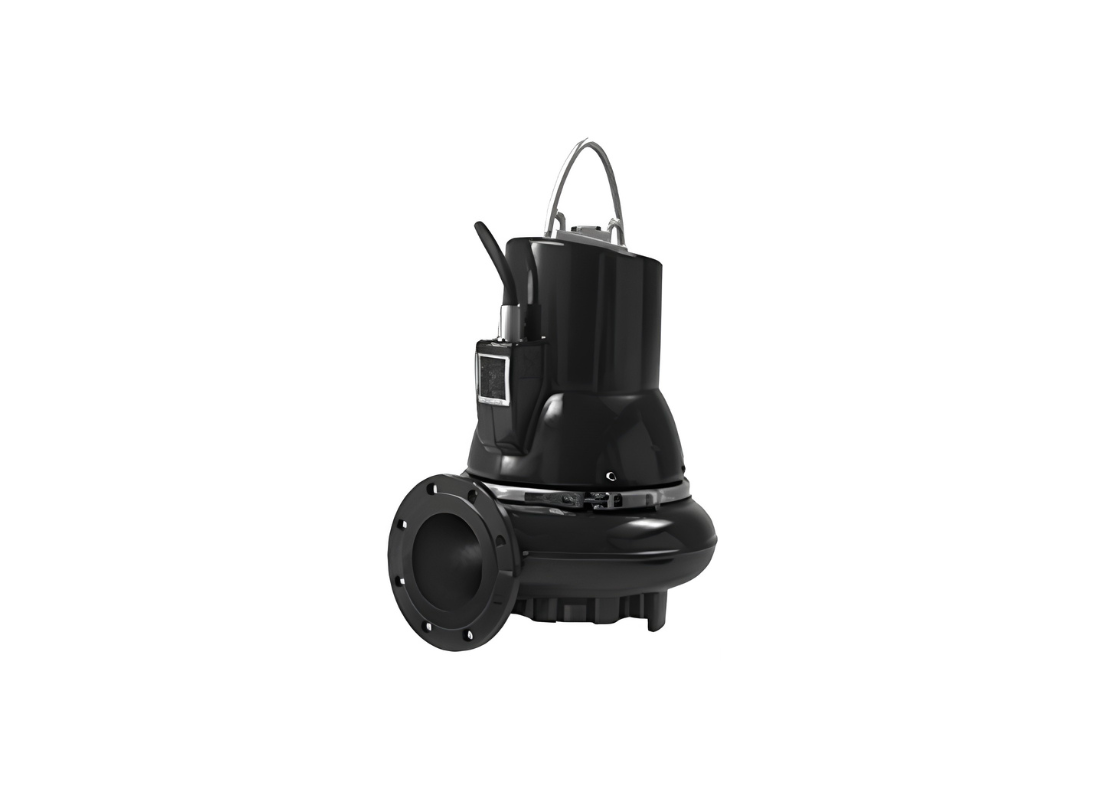

Grundfos SL1.100.150.75.4.50B.C Cast Iron 4-Pole Wastewater Pump for High-Volume Transfer with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume transfer in civil infrastructure is the primary application for the Grundfos SL1.100.150.75.4.50B.C, a submersible wastewater pump intended for permanent installation. Holding CE EN12050-1 approval, this unit is built for municipal wet wells and basins prone to untreated wastewater containing large solids. It is developed for handling raw effluents in high-demand networks.
Operating on a 3 x 415V supply with a rated current of 14.4 Amps, this model features a 7.5 kW 4-pole motor operating at 1462 rpm. It achieves a maximum head up to 19.4 m and maximum flow up to 4998 L/min. The motor is designed for continuous S1 duty in untreated wastewater at temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 100 mm while helping reduce the risk of clogging. The hydraulic design features a DN 150 inlet and a 6" (150 mm) outlet with DIN flange standards. This configuration supports high-volume fluid transfer in municipal wastewater systems.
Construction features EN-GJL-250 cast iron for the pump housing and motor casing. Protection includes a double SIC/SIC mechanical shaft seal arrangement and integrated PTC thermal sensors for motor monitoring. Integrated moisture sensors are included for seal and motor monitoring, along with a 10-metre LYNIFLEX cable and IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for processing large solids-laden wastewater without clogging.
- 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 14.4 Amps rated current.
- DN 150 inlet and 6" (150 mm) discharge connection for large-scale wastewater relocation.
- Double mechanical SIC/SIC shaft seals with an oil chamber for redundant moisture defence for the shaft.
- Integrated PTC sensors and moisture detection for advanced motor health and active thermal monitoring.
- Built-in thermal switches within the stator windings for automatic protection against electrical overheating.
- 10-metre rugged LYNIFLEX power cable and IP68 moisture protection for deep submerged operation.
- CE EN12050-1 certified for use in high-volume wastewater transfer and demanding relocation sites.
SPECIFICATIONS
| Max Flow | 4998 L/Min |
| Max Head | 19.4 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.4 Amps |
| Suitable For | High-Volume Transfer |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Can this pump clear unscreened raw sewage and fibrous waste?
Spherical solids and particulate up to 100 mm pass freely through the Grundfos SL1.100.150.75.4.50B.C, thanks to its debris-resistant runner.
What connection layout and port dimensions are featured on this unit?
Discharge pipework interfaces directly with the SL1.100.150.75.4.50B.C through a standard guide rail auto-coupling for quick field installation.
How much fluid can this pump evacuate during peak demand?
At full operating capacity, the SL1-100-150-75-4-50B-C moves up to 4998 L/Min to keep liquid levels controlled during peak inflow.
How many meters of dynamic lift does this pump provide?
Under rated operating head, the SL1 100 150 75 4 50B C can lift water to a maximum dynamic head of approximately 19.4 m through vertical risers.
How much electricity and current does this pump draw under load?
Running on 415 V three-phase power supplies, the SL1/100/150/75/4/50B/C is driven by a 7.5 kW motor rated at 14.4 Amps.
