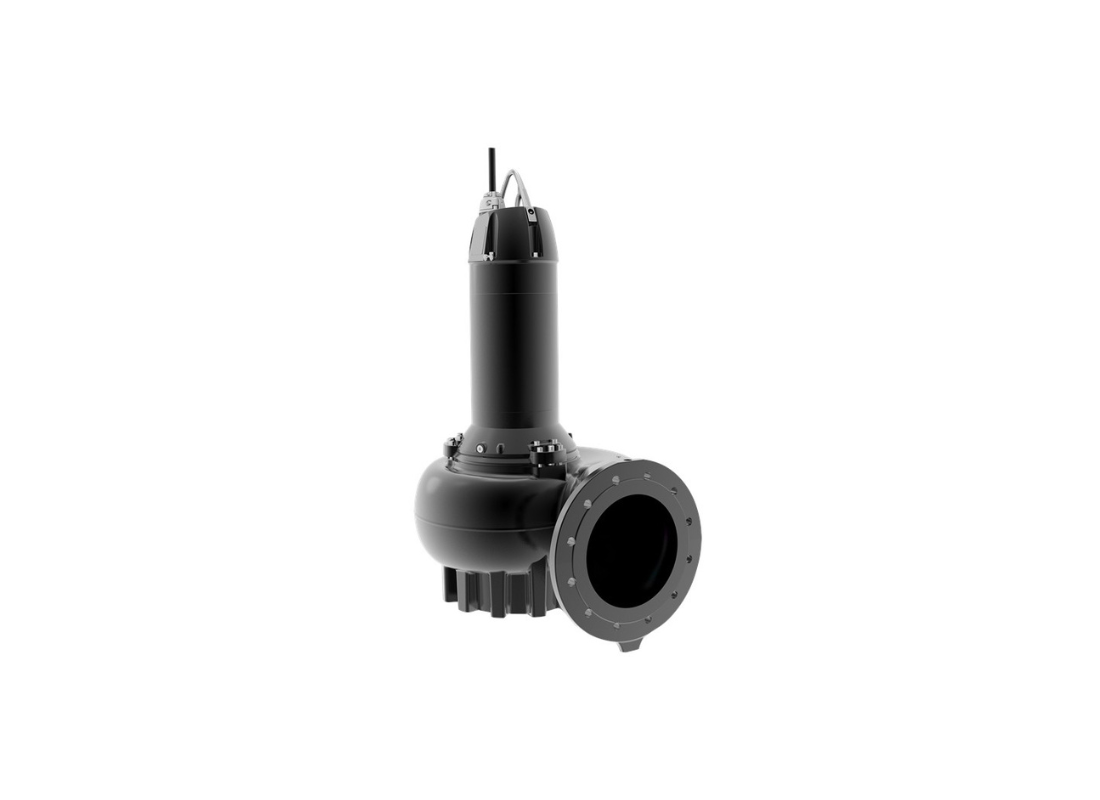

Sprawling wastewater plants constantly generate immense fluid loads requiring massive extraction channels. The SL1.110.200.100.4.52M.N.51D.A.T tackles these severe volume demands directly by deploying an enormous 200 mm outlet and matching 200 mm inlet. This submersible asset rapidly purges raw sewage from flooded basins, establishing an invincible protective barrier against municipal flooding.
A central advantage lies within the cast iron fluid chamber, which securely contains a balanced S-Tube impeller. By strictly scaling the internal tolerance to permit a 110 mm free passage, the pump prevents solid-laden sludge and large debris from accumulating inside the volute. This structural capability is vital for eliminating systemic bottlenecks.
Powering this fluid velocity is a durable 10 kW Grundfos 4-pole motor drawing cleanly from a 415v three-phase grid. The drive assembly converts electrical energy into heavy fluid motion, reaching a maximum head of approximately 13 m and an immense 6180 L/Min flow rate. This power translates directly into phenomenal thermodynamic stability.
Protecting the commercial investment against submersed threats, the system incorporates moisture sensors and motor-protection thermistors directly into its sealed core. These dedicated barriers continuously track the casing climate for hazardous liquid leaks or thermal overloading to prevent disruptions.
Features
- Features an advanced double shaft seal constructed in a highly modular cartridge format to permit safe fluid sealing replacements without requiring specialized heavy tools.
- Incorporates a dedicated quick-release cable entry connector that actively allows the main fifteen-meter waterproof power cord to be fully disconnected without removing the upper motor cover.
- Constructed using an EN 1561 EN-GJL-250 cast iron motor casing and heavy pump volute to assure maximum mechanical resilience and passive heat dissipation in submersed settings.
- Utilizes a profoundly durable secondary shaft seal constructed from a tough silicon carbide and carbon friction material combination to effectively shield the internal core.
- Rated to safely operate at a maximum continuous installation depth of twenty meters while firmly preserving an absolute eight bar maximum internal operating pressure tolerance.
- Engineered to easily endure extreme continuous submerged fluid temperatures ranging from ten up to forty degrees Celsius within unyielding municipal processing setups.
