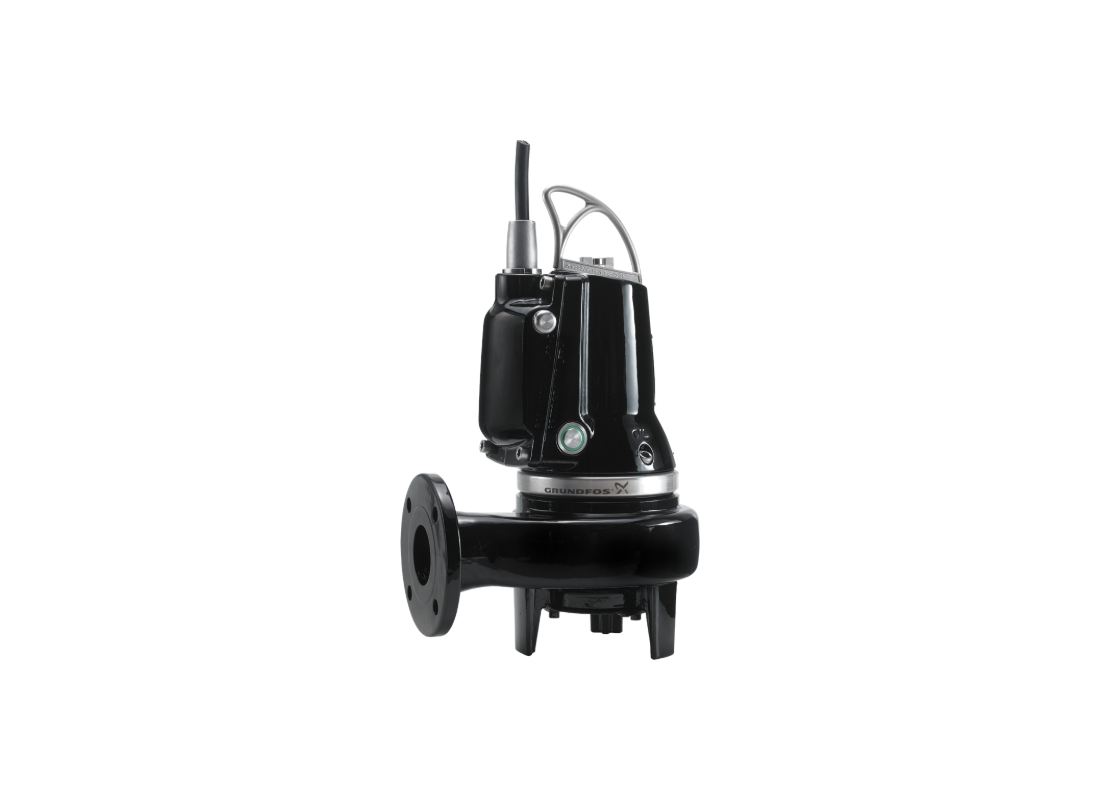

Grundfos SL1.50.65.11.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Drainage with Single Channel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing long-term operating cost scaling, the SL1.50.65.11.E.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage delivers reliable energy efficiency. Built to operate consistently in continuous submerged installations, the system supports dedicated commercial wastewater transfer stations.
Constructed with an EN-JL-1030 cast iron pump housing, the internal architecture withstands prolonged mechanical stress. The heavy-duty cast iron motor house ensures substantial protection for delicate components while fully submerged. A specialized SiC/SiC primary shaft seal provides a resilient barrier against fluid ingress, protecting the drive shaft in harsh applications.
This submersible wastewater pump provides a maximum flow of 834 L/Min and a maximum head of 12.6 m. Powered by a 1.1 kW motor requiring a 415v three-phase power supply, the unit operates at a rated current of 3.1 Amps. With a net weight of 59.5 kg, the unit is configured to be suitable for guide rail installations using an automatic coupling arrangement.
Engineered for hazardous environments, this explosion-proof configuration incorporates AUTOADAPT technology, allowing the unit to run autonomously without external control boxes. The EN 12050-2 approval confirms its capacity to handle unscreened sewage. A stainless-steel clamp assembling system permits rapid disassembly, streamlining routine inspections.
Features
- Revolutionary S-tube impeller provides free spherical passage of solids up to 50 mm.
- Operates at a rated speed of 2830 rpm with a direct-on-line starting method.
- Motor efficiency reaches 67% at full operational load capacity.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m Lyniflex power cable for secure electrical connection.
- Net weight of the complete pump assembly is documented at 59.5 kg.
SPECIFICATIONS
| Max Flow | 834 L/Min |
| Max Head | 12.6 m |
| Rated Current | 3.1 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 12.6 m with the Grundfos SL1.50.65.11.E.Ex.2.50B under standard duty points.
Does this pump run on standard household power or three-phase power?
It operates on 415 V three-phase power, with the SL1.50.65.11.E.Ex.2.50B utilizing a durable 1.1 kW motor rated at 3.1 Amps.
What is the maximum spherical solids clearance for this pump?
To prevent clogging from wastewater solids and fibrous waste, the SL1-50-65-11-E-Ex-2-50B provides dedicated passage for particles up to 50 mm.
What everyday water supply duties are best performed by this pump?
Everyday water management duties for the SL1 50 65 11 E Ex 2 50B focus on Built-in level sensing architecture in eliminates separate control cabinets by monitoring basin levels directly, providing reliable pumping performance.
What maximum flow rate does this pump achieve during heavy influx?
Moving liquid through the system, the SL1/50/65/11/E/Ex/2/50B maintains an operational throughput of up to 834 L/Min during peak demand.
