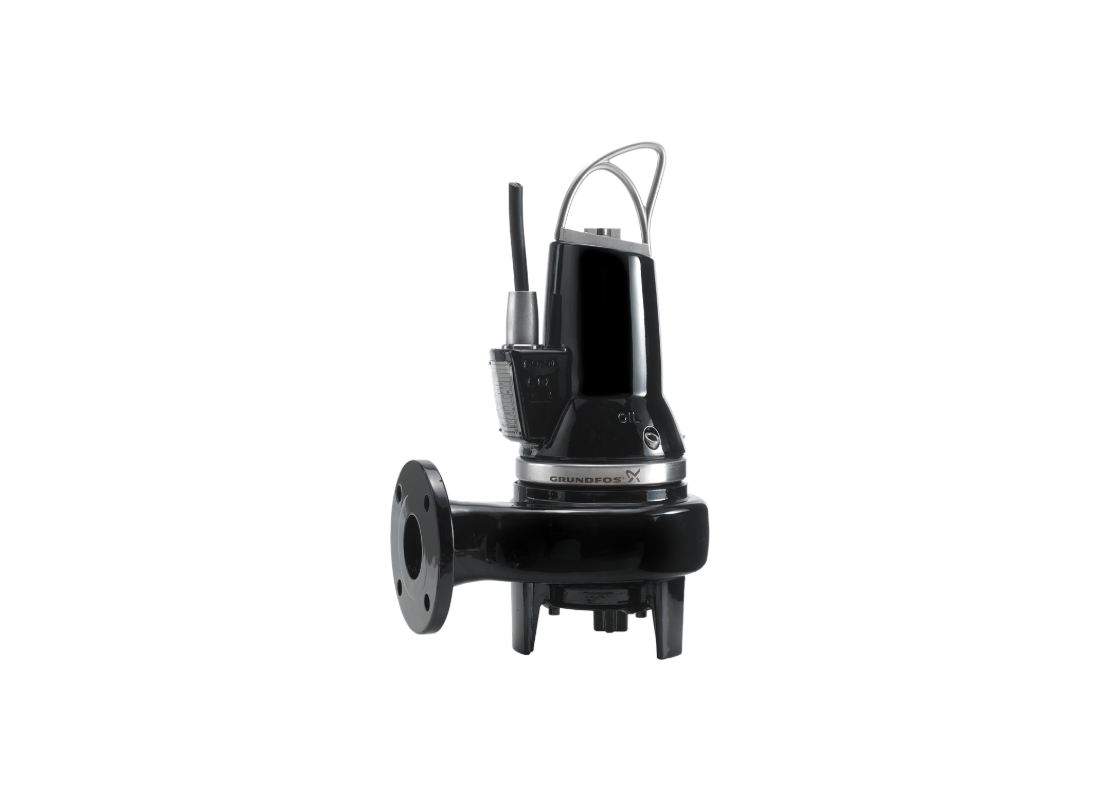

Grundfos SL1.50.65.40.A.EX.2.50B.C Cast Iron 2-Pole Wastewater Pump for Industrial Effluent with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial effluent and municipal wastewater transfer are the primary applications for the Grundfos SL1.50.65.40.A.EX.2.50B.C, an explosion-proof submersible pump certified under CE EN12050-2 and IECEX for hazardous zones. This model is suitable for permanent installation in collection reservoirs and sumps for handling untreated wastewater.
The model features a 4 kW 2-pole motor running at 2930 rpm. Operating on a 3 x 415V supply with a rated current of 8.2 Amps, it provides a maximum head up to 25.8 m and a maximum flow up to 1164 L/min. The motor is rated for continuous S1 duty in untreated wastewater at temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 50 mm while helping reduce the risk of clogging. It utilises a DN 65 inlet and a DN 65 (2.5") outlet with DIN flange standards. This design supports the transfer of solids through high-resistance discharge piping in industrial facilities.
The pump housing and motor casing are constructed from EN-GJL-250 cast iron. Protection includes a double SIC/SIC mechanical seal and integrated PTC sensors for motor protection. Integrated moisture and water-in-oil sensors are used for seal and motor monitoring, and the unit features a 10-metre LYNIFLEX power cable and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- Explosion-proof EX certified construction for safe deployment in hazardous processing zones and industrial environments.
- S-tube impeller with 50 mm free passage for reliable processing of wastewater with high solids content.
- 4 kW 2-pole motor operating at 2930 rpm on a 3 x 415V three-phase supply with 8.2 Amps rated current.
- High-head performance up to 25.8 m for high-pressure wastewater relocation in industrial facilities.
- DN 65 inlet and DN 65 (2.5") discharge connection with DIN flange standards for industrial piping systems.
- Double SIC/SIC mechanical shaft seals with oil chamber providing redundant protection for the motor and shaft.
- Integrated PTC sensors and moisture detection for advanced motor health and seal monitoring.
- 10-metre rugged LYNIFLEX power cable and IP68 enclosure for continuous submerged operation in industrial sumps.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 25.8 m |
| Power | 4 kW / 415v |
| Rated Current | 8.2 Amps |
| Suitable For | Industrial Effluent |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What voltage supply and motor power does this pump need?
Under full load conditions, the motor in the Grundfos SL1.50.65.40.A.EX.2.50B.C delivers 4 kW on a 415 V three-phase line drawing 8.2 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Built with a resilient high-grade alloy body, the SL1.50.65.40.A.EX.2.50B.C maintains material durability against fluid abrasion and wear.
What connection layout and port dimensions are featured on this unit?
Plumbing integration on the SL1-50-65-40-A-EX-2-50B-C utilizes a dedicated auto-coupling layout for reliable pipeline connection.
How much fluid throughput does this pump move under full load?
Discharge throughput on the SL1 50 65 40 A EX 2 50B C reaches a maximum flow rate of approximately 1164 L/Min under standard operating conditions.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the SL1/50/65/40/A/EX/2/50B/C develops a maximum pumping head of approximately 25.8 m.
