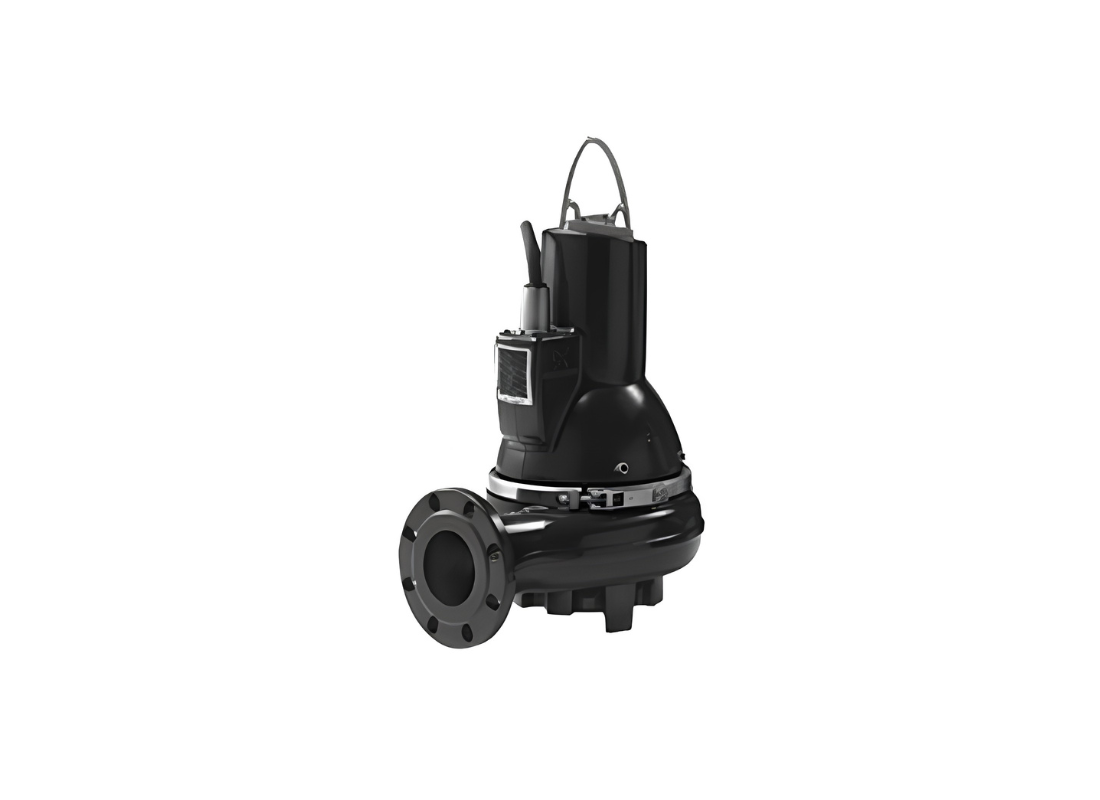

Industrial wastewater transfer stations utilise the Grundfos SL1.80.100.15.4.50B.C for pumping untreated wastewater containing large solids. Holding CE EN12050-1 approval, this cast iron model is intended for permanent installation in wet wells and basins in municipal and industrial applications.
Operating on a 3 x 415V supply with a rated current of 3.9 Amps, the 1.5 kW 4-pole motor runs at 1451 rpm. It achieves a maximum head up to 8.4 m and maximum flow up to 2118 L/min. This model is rated for continuous S1 submerged duty in untreated wastewater at temperatures up to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The hydraulic design incorporates an S-tube impeller providing an 80 mm free passage for untreated wastewater containing solids. The pump features a DN 100 inlet and a DN 100 (4") outlet with DIN flange standards. This configuration supports the discharge of contaminated media through high-volume transfer systems.
The pump housing and motor casing are constructed from EN-GJL-250 cast iron. Sealing is provided by a double SIC/SIC mechanical arrangement in a primary oil chamber. Integrated moisture sensors are used for seal and motor monitoring, along with winding-embedded thermal switches and 10 metres of 07RN8-F power cable. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for handling solids-laden wastewater without clogging in transfer stations.
- 1.5 kW 4-pole motor operating at 1451 rpm on a 3 x 415V three-phase supply with 3.9 Amps rated current.
- DN 100 inlet and DN 100 (4") discharge connection for volume-intensive fluid relocation in transfer networks.
- Double mechanical SIC/SIC shaft seals in an oil chamber providing a redundant moisture barrier for the motor.
- Integrated moisture sensors for monitoring of internal mechanical components during deep submersion.
- Built-in thermal switches within the motor winding for automatic electrical safety and heat regulation.
- 10-metre heavy-duty 07RN8-F power cable and IP68 enclosure for reliable deep-well operation in transfer stations.
- CE EN12050-1 certified for use in industrial wastewater transfer and municipal collection stations.
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
