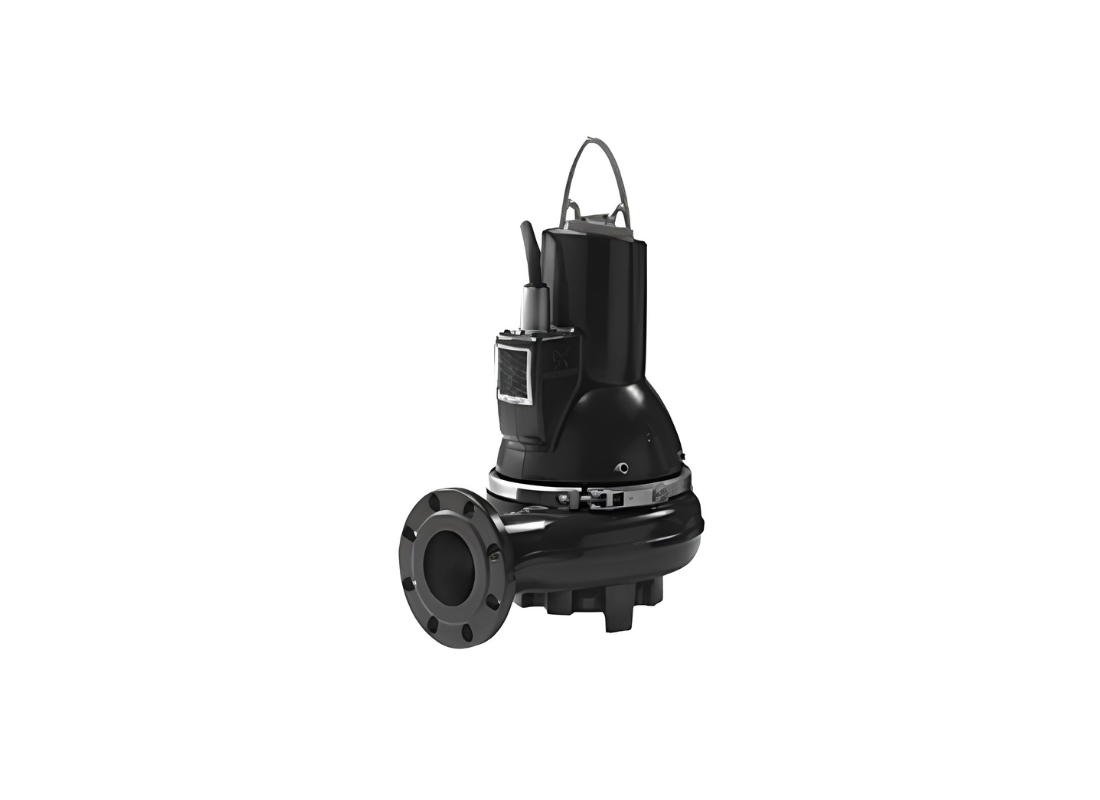

Municipal lift stations and wastewater handling are the primary applications for the Grundfos SL1.80.100.22.4.50B.C. Certified under CE EN12050-1, this submersible pump is designed for permanent installation in basins and wet wells. It is intended for conveying raw effluents containing large solids in high-volume municipal environments.
The model features a 2.2 kW 4-pole motor operating at 1462 rpm on a 3 x 415V supply with a rated current of 5.4 Amps. It provides a maximum head up to 11.4 m and maximum flow up to 2334 L/min. The motor is designed for continuous S1 submerged service in liquids between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 80 mm while helping reduce the risk of clogging. The hydraulic design features a DN 100 inlet and a DN 100 (4") outlet with DIN flange connections. This single-vane design supports consistent fluid transfer in municipal collection networks.
Built with an EN-GJL-250 cast iron pump housing and motor casing, the unit includes a double mechanical SIC/SIC seal arrangement. Integrated moisture sensors are used for seal and motor monitoring. Protection also includes thermal switches in the windings, 10 metres of 07RN8-F power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for processing contaminated fluids without clogging in lift stations.
- 2.2 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 5.4 Amps rated current.
- DN 100 inlet and DN 100 (4") discharge connection for volume-intensive wastewater relocation.
- Double SIC/SIC mechanical shaft seals in an oil chamber for redundant moisture defence for the stator.
- Integrated moisture sensors for promonitoring of seal and motor integrity in deep sumps.
- Built-in thermal switches within the stator windings for active protection against electrical overheating.
- 10-metre heavy-duty 07RN8-F power cable and IP68 moisture protection for reliable submerged service.
- CE EN12050-1 certified for use in municipal lift stations and high-volume wastewater collection networks.
