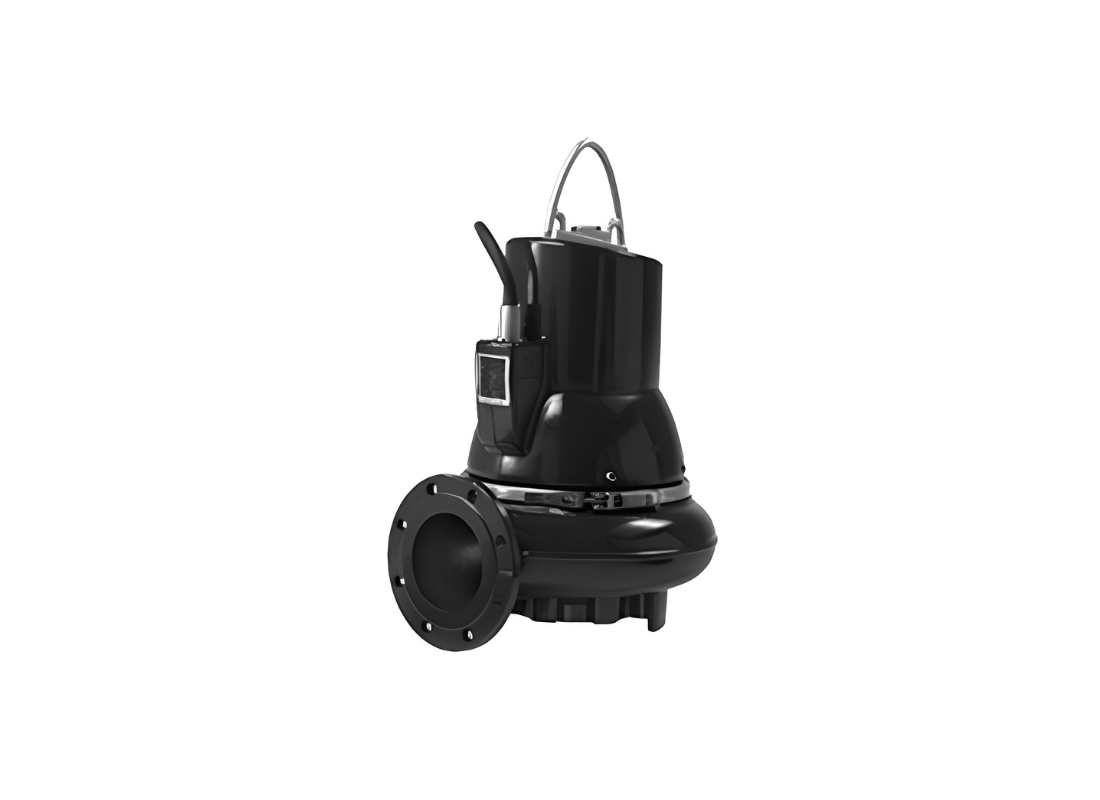

Grundfos SLV.100.100.30.4.50B.C Cast Iron 4-Pole Submersible Pump for Wastewater with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Encountering heavy continuous fluid transfer loads in immense wastewater operations naturally demands absolute stability. The SLV.100.100.30.4.50B.C is an ultra-durable non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage safely across incredibly rigorous subterranean tasks.
Anchoring the robust physical framework is a phenomenally thick EN-GJL-250 cast iron exterior containment shell that effectively neutralizes deep vibration signatures. Unscreened waste flows continuously straight into a vast 100 millimeter intake connection and completely out of an identically sized 100 millimeter discharge port freely.
To constantly manipulate massive volumes of highly viscous material, the system is empowered by a superior 3-phase 415v electrical infrastructure establishing a 3 kW power input. The internal mechanism carefully manages intense electrical loads precisely at 6.9 Amps to securely command an approximate maximum fluid flow of 1914 L/Min.
The entire kinetic layout strictly prioritizes paramount environmental safety across treacherous submerged deployments. By forcefully overcoming severe vertical liquid resistance, the mechanism steadily secures an approximate maximum head measuring 11.6 meters. The thermal switch protection completely isolates the core motor winding from heat.
Features
- Engineered carefully with a specialized SuperVortex impeller calibrated to safely allow the passage of solid materials strictly up to 100 millimeters.
- Uses an exclusive stainless-steel clamp assembling system ensuring absolutely fast and effortless pump housing separation for mandatory service.
- Utilizes a high-grade dual silicon carbide primary shaft seal configuration (SIC/SIC) to comprehensively eliminate internal chamber liquid leaks.
- Provides top-tier ingress defense through an industrial IP68 enclosure class rating accompanied perfectly by an H level thermal insulation class.
- Calibrated to spin steadily at 1453 rpm, effectively balancing immense raw fluid processing capacity with unparalleled long-term mechanical longevity.
- Fitted securely with an extended 10 meter 07RN8-F electrical cable explicitly engineered for challenging deep water chemical infrastructure immersions.
SPECIFICATIONS
| Max Flow | 1914 L/Min |
| Max Head | 11.6 m |
| Power | 3 kW / 415v |
| Rated Current | 6.9 Amps |
| Suitable For | Maximum-Solids Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
Peak fluid displacement on the Grundfos SLV.100.100.30.4.50B.C delivers up to 1914 L/Min under rated operating conditions.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 11.6 m with the SLV.100.100.30.4.50B.C under standard duty points.
How much electricity and current does this pump draw under load?
It operates on 415 V three-phase power, with the SLV-100-100-30-4-50B-C utilizing a durable 3 kW motor rated at 6.9 Amps.
What is the maximum spherical solids clearance for this pump?
To prevent clogging from wastewater solids and fibrous waste, the SLV 100 100 30 4 50B C provides dedicated passage for particles up to 100 mm.
What mounting system enables fast installation and retrieval of this pump?
For rapid positioning and retrieval, the SLV/100/100/30/4/50B/C features a standard auto-coupling suited for guide rail auto-coupling pedestals.
