SKU: 98626065

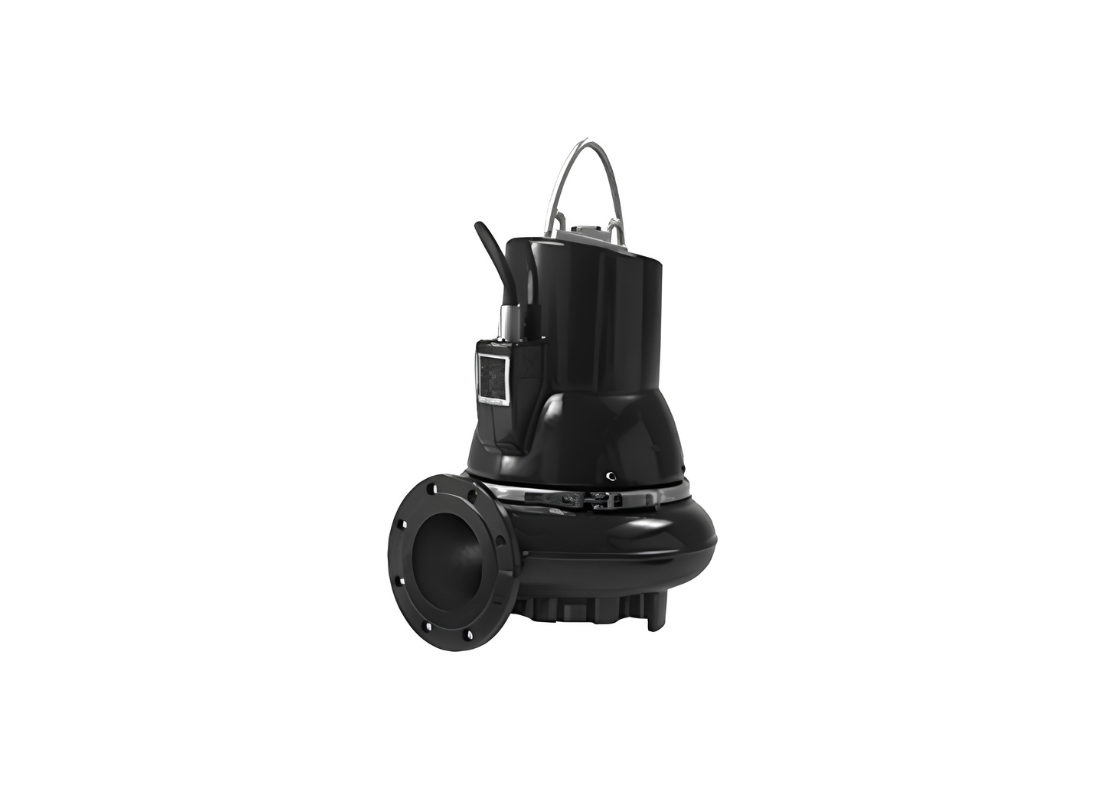

Grundfos SLV.100.100.55.4.50B.C Cast Iron 4-Pole Submersible Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Establishing absolute authority over intense operational demands, the SLV.100.100.55.4.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It completely masters continuous submerged workloads across highly complex deep subterranean municipal water networks.
To securely channel incredibly volatile process liquids, the heavy commercial unit relies strictly on a meticulously engineered internal pathway. Raw suspended materials are aggressively drawn directly from a massive 100 millimeter suction port entirely through to an identical 100 millimeter discharge connection, virtually eliminating internal drag.
Operating under severe environmental tension requires a vastly superior 3-phase 415v electrical framework capable of harnessing a 5.5 kW power input. The massive motor actively regulates heavy current loads at exactly 10.9 Amps, smoothly converting rotational kinetic torque to secure an approximate maximum flow measuring 2166 L/Min.
Providing unparalleled critical infrastructure defense, this highly precise mechanism completely dominates heavy fluids aggressively pushing vertically to conquer an approximate maximum head of 17.2 meters. The integration of continuous PTC thermal protection systems guarantees the core entirely avoids isolated heat buildup to preserve hardware limits.
Features
- Fitted exclusively with an advanced SuperVortex impeller structured perfectly to cleanly process concentrated solid materials flawlessly up to 100 millimeters.
- Integrates an advanced quick-release stainless-steel clamp assembling system allowing completely instant structural separation of the motor and pump casing.
- Protected entirely by a resilient silicon carbide mechanical shaft seal interface (SIC/SIC) heavily shielding the interior rotational drive components.
- Constructed directly to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class operational thermal rating profile.
- Designed securely with a precise 1463 rpm rated speed motor architecture that maximizes extended reliability alongside incredible fluid handling capacity.
- Connected exclusively via a heavily sheathed 10 meter LYNIFLEX electrical cable structured carefully to survive brutal long-term liquid subterranean immersions.
SPECIFICATIONS
| Max Flow | 2166 L/Min |
| Max Head | 17.2 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.9 Amps |
| Suitable For | Untreated Stormwater with heavy debris |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water flow can this pump deliver per minute?
Discharge throughput on the Grundfos SLV.100.100.55.4.50B.C reaches a maximum flow rate of approximately 2166 L/Min under standard operating conditions.
What is the maximum vertical lift capacity of this pump?
To overcome vertical elevation resistance, the SLV.100.100.55.4.50B.C develops a maximum pumping head of approximately 17.2 m.
What electrical supply parameters are needed for this pump motor?
Electrical power for the SLV-100-100-55-4-50B-C requires a 415 V three-phase connection, driving an efficient 5.5 kW motor that draws 10.9 Amps.
What water temperature range and installation depth are supported?
Routine operational boundaries allow the SLV 100 100 55 4 50B C to function across standard liquid temperatures with steady thermal stability.
What auto-coupling mounting base connects this pump to discharge risers?
Mechanical mounting for the SLV/100/100/55/4/50B/C is configured around a standard auto-coupling for straightforward pit alignment.
