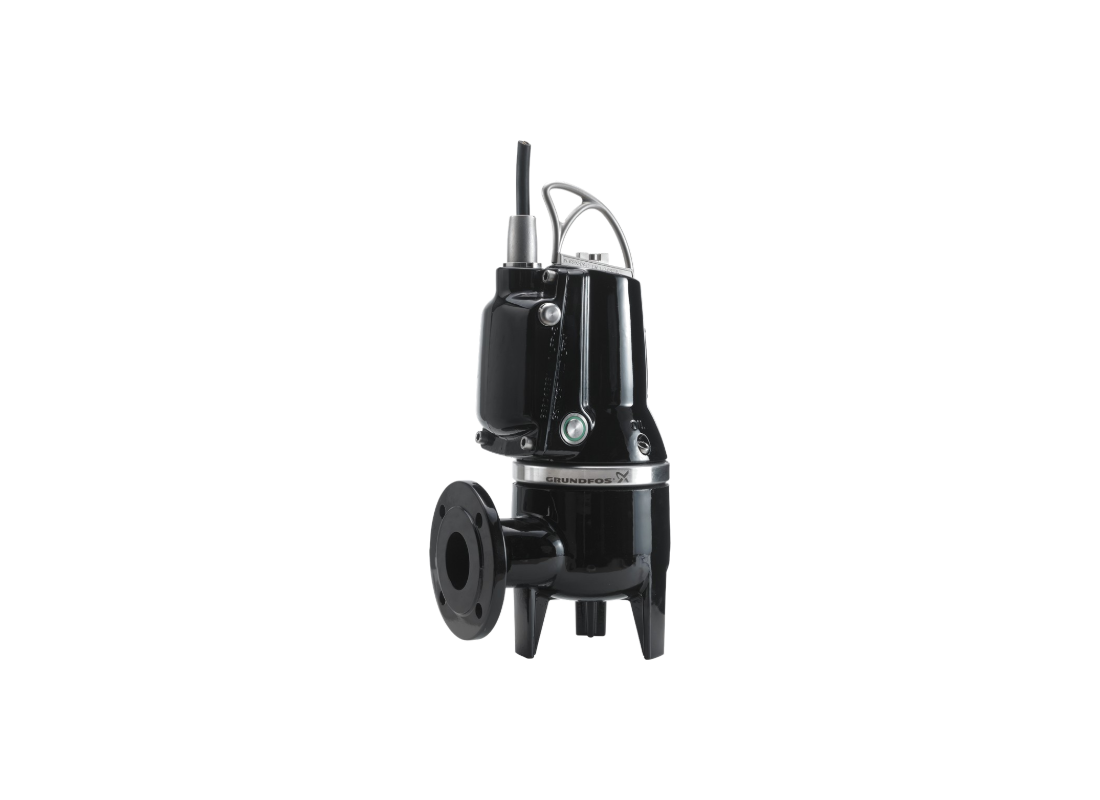

Grundfos SLV.65.65.11.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Drainage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Constructed with an EN-JL-1030 cast iron pump housing, the SLV.65.65.11.E.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage withstands challenging mechanical stress. The cast iron motor house delivers robust protection for internal drive components while operating fully submerged.
By maintaining a specialized hydraulic configuration, this system manages liquid transfer in municipal facilities. Developed to guide fluid efficiently, it operates optimally in continuous applications. A SiC/SiC primary shaft seal acts as a barrier against fluid ingress, supporting long-term operation across rigorous commercial drainage stations.
Evaluating fluid velocity paths, this submersible wastewater pump achieves a maximum flow of 483.6 L/Min and a maximum head of 10.1 m. The assembly is powered by a 1.1 kW motor requiring a 415v three-phase power supply, operating at 3.1 Amps. With a net weight of 52.5 kg, it is suitable for guide rail installations using an automatic coupling arrangement.
Engineered for energy management, this explosion-proof pump features AUTOADAPT technology for autonomous operation without external control boxes. The EN 12050-1 approval confirms its capacity to handle sewage. A stainless-steel clamp system permits straightforward maintenance access, streamlining routine service inspections in hazardous zones.
Features
- Efficient SuperVortex impeller provides passage of long fibres and solids up to 65 mm.
- Operates at a rated speed of 2830 rpm with a direct-on-line starting method.
- Motor efficiency reaches 67% at full operational load capacity.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m Lyniflex power cable for secure electrical connection.
- Net weight of the complete pump assembly is documented at 52.5 kg.
SPECIFICATIONS
| Max Flow | 483.6 L/Min |
| Max Head | 10.1 m |
| Rated Current | 3.1 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Where is this pump typically deployed across residential and rural systems?
Routine operational tasks matching the Grundfos SLV.65.65.11.E.Ex.2.50B encompass Recessed entirely outside the primary flow channel, the runner in allows solids up to 65 mm to clear the volute freely across connected networks.
Where is this pump commonly installed and utilized?
Primary tasks for the SLV.65.65.11.E.Ex.2.50B include Built-in level monitoring logic in adapts pumping intervals dynamically to community inflow surges without external float switches, delivering efficient water management across residential and rural systems.
What discharge flow rate does this pump maintain during peak operation?
Fluid evacuation capacity for the SLV-65-65-11-E-Ex-2-50B peaks at approximately 483.6 L/Min, providing dependable high-volume drainage.
How much pumping height does this pump provide?
Pumping performance for the SLV 65 65 11 E Ex 2 50B provides up to 10.1 m of vertical dynamic lift, depending on system friction and line sizing.
What motor power rating and running current power this pump?
Under full load conditions, the motor in the SLV/65/65/11/E/Ex/2/50B delivers 1.1 kW on a 415 V three-phase line drawing 3.1 Amps.
