SKU: 96104193

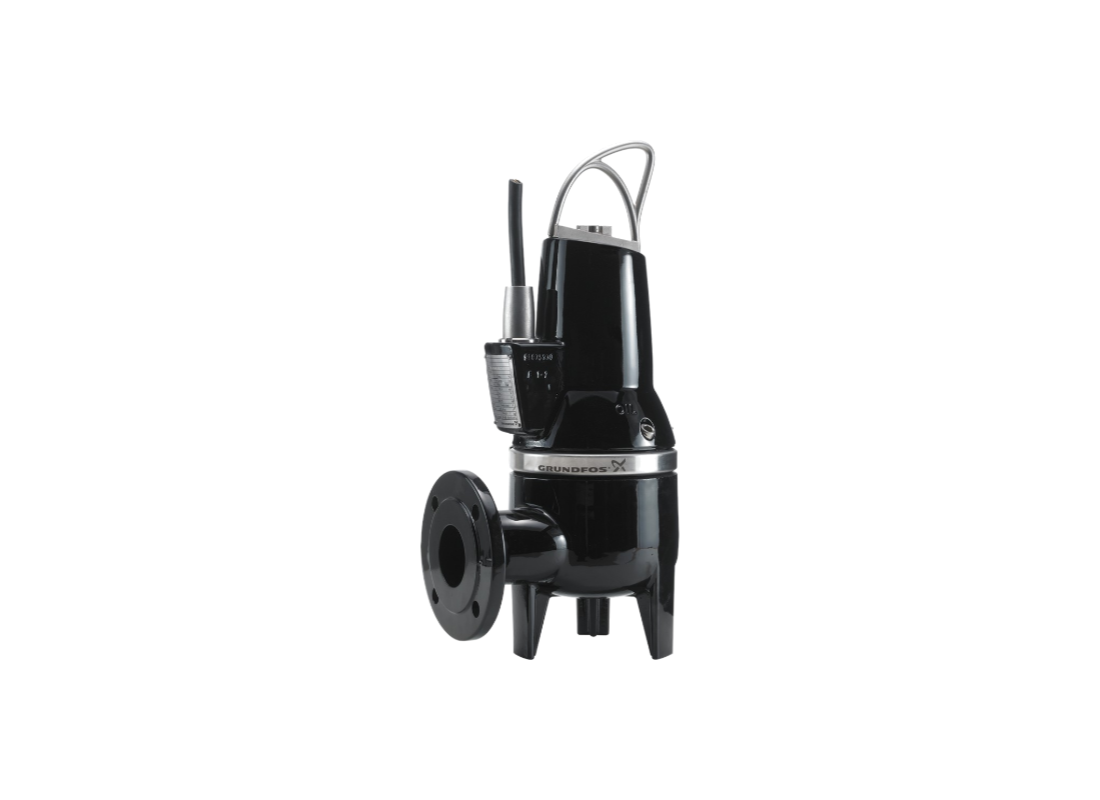

Grundfos SLV.65.65.15.Ex.2.50B Cast Iron 65mm Wastewater Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Evaluating internal fluid velocity paths, the SLV.65.65.15.Ex.2.50B non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage excels in fluid optimization. Engineered for stable hydraulic circulation, the assembly supports continuous submerged operations in municipal drainage stations.
Constructed with an EN-GJL-250 cast iron pump housing, the architecture is formulated to endure aggressive fluid dynamics over time. The heavy-duty cast iron motor house provides structural protection for internal mechanisms while operating underwater. A precision-engineered SiC/SiC primary shaft seal provides a barrier against fluid ingress in raw sewage applications.
This submersible wastewater pump achieves a maximum flow of 750 L/Min and a maximum head of 10.6 m. Driven by a 1.5 kW motor requiring a 415v three-phase power supply, it operates continuously at a rated current of 3.8 Amps. Registering a net weight of 48.2 kg, it is highly suitable for guide rail installations using an automatic coupling arrangement.
Designed for industrial standards, this explosion-proof configuration supports facility safety in hazardous environments. The EN 12050-1 approval verifies its structural capacity to handle unscreened raw sewage. Utilizing a unique clamp assembling system, the pump enables rapid maintenance access, reducing service downtime during facility evaluations.
Features
- Efficient SuperVortex impeller provides passage of long fibres and solids up to 65 mm.
- Operates at a rated speed of 2720 rpm with a direct-on-line starting method.
- Motor is protected by an IP68 enclosure class and insulation class F rating.
- Suitable for guide rail installations using an automatic coupling arrangement.
- Equipped with a 10 m H07RN-F power cable for flexible electrical connection.
- Net weight of the complete pump assembly is documented at 48.2 kg.
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 10.6 m |
| Rated Current | 3.8 Amps |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What mounting system enables fast installation and retrieval of this pump?
Installation of the Grundfos SLV.65.65.15.Ex.2.50B is streamlined using a standard auto-coupling, enabling fast docking onto existing discharge lines.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the SLV.65.65.15.Ex.2.50B peaks at approximately 750 L/Min, providing dependable high-volume drainage.
What maximum vertical water column can this pump maintain?
Pumping performance for the SLV-65-65-15-Ex-2-50B provides up to 10.6 m of vertical dynamic lift, depending on system friction and line sizing.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the SLV 65 65 15 Ex 2 50B delivers 1.5 kW on a 415 V three-phase line drawing 3.8 Amps.
Is the pump body built to withstand harsh and corrosive liquids?
Built with a resilient high-grade alloy body, the SLV/65/65/15/Ex/2/50B maintains material durability against fluid abrasion and wear.
