SKU: 98626529

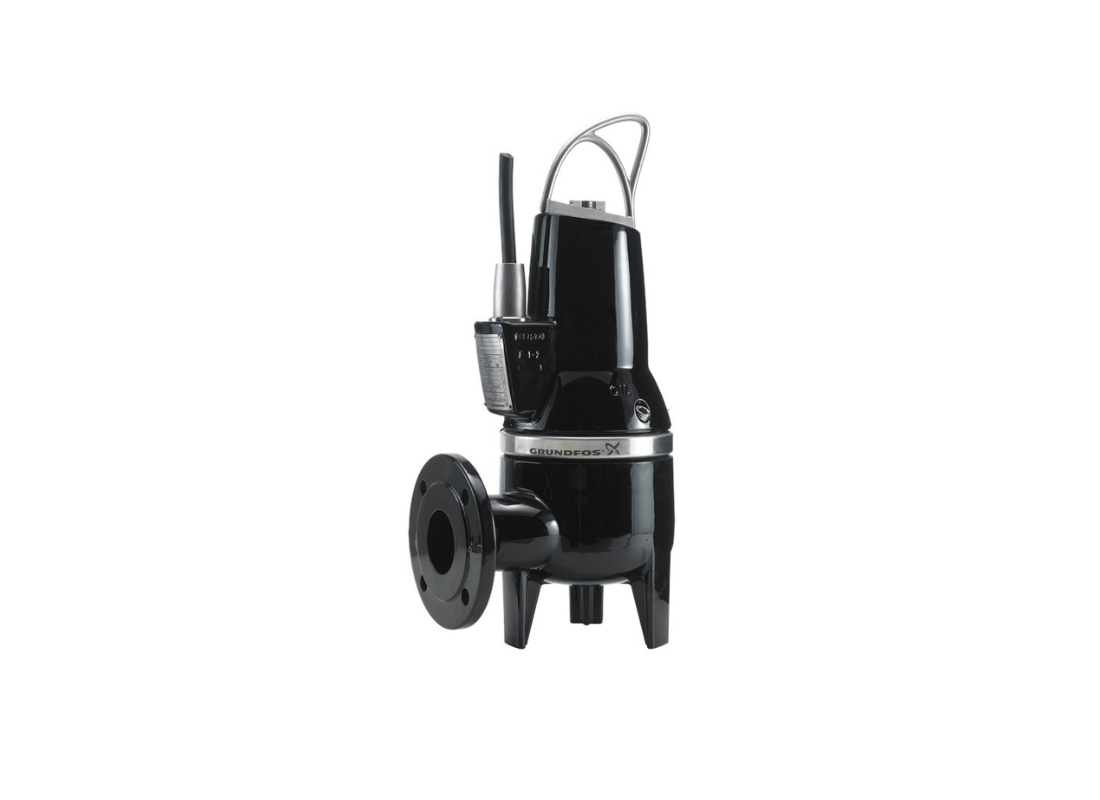

Grundfos SLV.65.65.22.A.EX.2.50B.C Cast Iron 2-Pole Submersible Pump for Wastewater with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Facing the rigorous environmental demands of modern fluid management, the SLV.65.65.22.A.EX.2.50B.C serves as a heavy-duty non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. This engineered solution delivers absolute reliability for continuous submerged operations.
The architectural casting design features a highly resilient EN-GJL-250 cast iron pump housing, forming a reinforced containment foundation. This robust metal structure mitigates rotational vibration while precisely guiding fluid streams from the 80 millimeter inlet through to the 65 millimeter outlet port to ensure long-term stability.
To maximize internal hydraulic circulation, the system relies on a dynamically balanced 3-phase 415v electrical framework drawing a 2.2 kW power input at 4.7 Amps. This optimized kinetic transfer mechanism translates directly into high-volume fluid propulsion, achieving an approximate maximum flow capacity of 750 L/Min continuously.
Addressing long-term operating costs and safety containment, the architecture features an advanced explosion-proof classification and thermal switch standard to protect the motor in sensitive zones. By pushing against an approximate maximum head of 18.6 meters, it maintains strict fluid velocity boundaries without mechanical degradation.
Features
- Engineered with an efficient SuperVortex impeller to safely allow passage of long fibres and solids up to 65 millimeters.
- Constructed with a unique stainless-steel clamp assembling system that enables rapid disassembly for field service and inspection.
- Utilizes a high-endurance silicon carbide primary shaft seal configuration (SIC/SIC) to protect internal chamber integrity.
- Equipped with an integrated moisture sensor and water-in-oil sensor to actively monitor the internal motor status.
- Features an IP68 rated enclosure class paired with an H insulation class motor for superior operational safety.
- Supplied with a flexible 10 meter LYNIFLEX power cable to accommodate deep submerged installation environments.
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 18.6 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.7 Amps |
| Suitable For | Hazardous/Explosive Domestic Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this pump displace through its outlet?
At full operating capacity, the Grundfos SLV.65.65.22.A.EX.2.50B.C moves up to 750 L/Min to keep liquid levels controlled during peak inflow.
How much vertical head pressure can this pump generate?
Under rated operating head, the SLV.65.65.22.A.EX.2.50B.C can lift water to a maximum dynamic head of approximately 18.6 m through vertical risers.
What kind of power supply does this pump require to run?
Running on 415 V three-phase power supplies, the SLV-65-65-22-A-EX-2-50B-C is driven by a 2.2 kW motor rated at 4.7 Amps.
Which pumping tasks and system installations are ideal for this unit?
Routine operational tasks matching the SLV 65 65 22 A EX 2 50B C encompass Smooth solids movement is facilitated in by its SuperVortex runner, providing a generous 65 mm spherical clearance across connected networks.
How does this pump connect into wet well pipework?
Installation of the SLV/65/65/22/A/EX/2/50B/C is streamlined using a standard auto-coupling, enabling fast docking onto existing discharge lines.
