SKU: 98625991

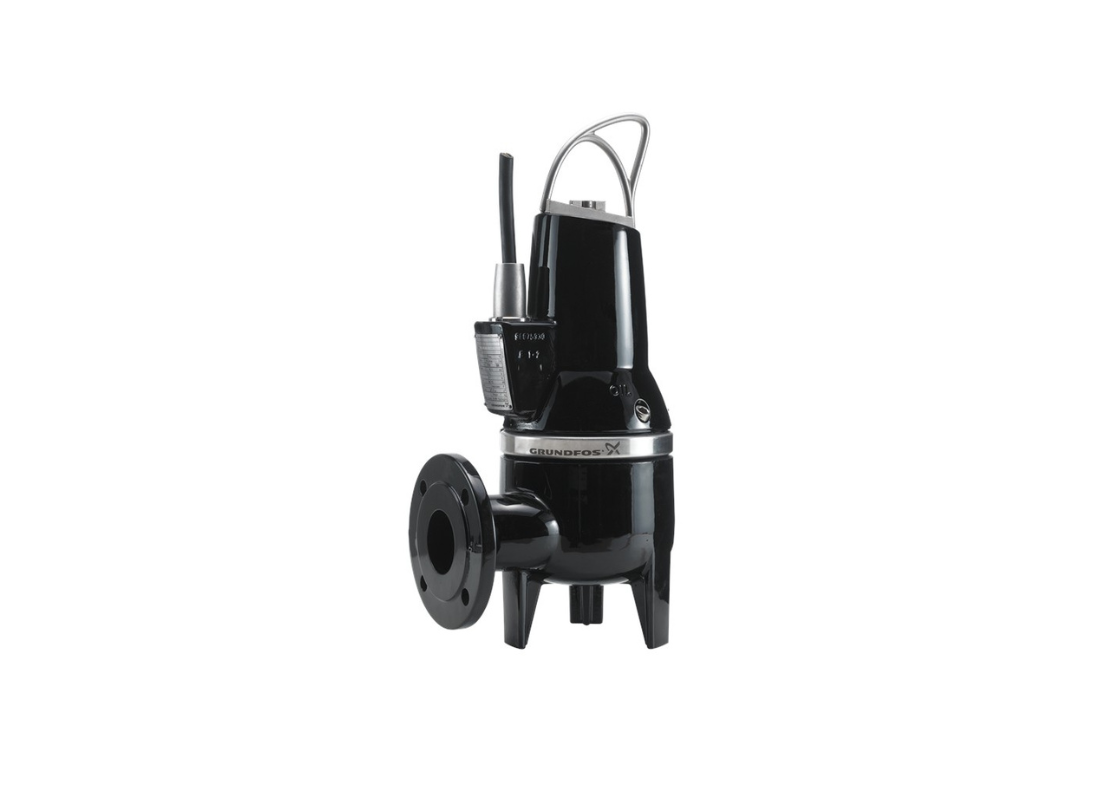

Grundfos SLV.65.80.30.2.50B.C Cast Iron 2-Pole Submersible Pump for Wastewater Handling with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Start by establishing the explicit operational load challenge encountered in intense settings. The SLV.65.80.30.2.50B.C operates as an extremely rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It handles absolute continuous operational loads with total structural confidence.
Highlighting a primary structural material choice, the heavy-duty unit is cast from superior EN-GJL-250 grade iron. This incredibly thick metal architecture nullifies external shockwaves and seamlessly directs aggressive fluids straight from the large 80 millimeter inlet port directly out through the corresponding 80 millimeter discharge flange.
Detailing hydraulic configuration and circulation stability, the assembly leverages a precise 3-phase 415v electrical framework generating a potent 3 kW power input. Safely drawing 6.4 Amps during runtime, the internal mechanism smoothly converts the electrical power to reach an approximate maximum flow volume of 750 L/Min.
Addressing the safety protection containment requirements of deep submerged installations, this model drives intense fluids upwards to an approximate maximum head of 23.1 meters. The thermal switch protection matrix guarantees the internal motor avoids destructive heat buildup even when deployed into the harshest available pumping environments.
Features
- Equipped with an advanced SuperVortex impeller layout guaranteeing the unhindered passage of solid debris up to 65 millimeters.
- Uses an exclusive stainless-steel clamp assembling system ensuring fast and effortless pump housing separation for service.
- Utilizes a high-grade dual silicon carbide primary shaft seal configuration (SIC/SIC) to eliminate internal chamber leaks.
- Monitored autonomously by embedded internal moisture sensors designed to preemptively detect structural casing compromises.
- Provides top-tier ingress defense through an IP68 enclosure class rating accompanied by an H level thermal insulation class.
- Fitted securely with an extended 10 meter heavy-duty 07RN8-F cable jacket engineered for challenging deep water immersion.
SPECIFICATIONS
| Max Flow | 750 L/Min |
| Max Head | 23.1 m |
| Power | 3 kW / 415v |
| Rated Current | 6.4 Amps |
| Suitable For | Standard Residential Blackwater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid throughput does this pump move under full load?
Discharge throughput on the Grundfos SLV.65.80.30.2.50B.C reaches a maximum flow rate of approximately 750 L/Min under standard operating conditions.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the SLV.65.80.30.2.50B.C develops a maximum pumping head of approximately 23.1 m.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the SLV-65-80-30-2-50B-C requires a 415 V three-phase connection, driving an efficient 3 kW motor that draws 6.4 Amps.
Can this pump pass dirty wastewater and solid debris without blocking?
Internal hydraulic clearances in the SLV 65 80 30 2 50B C allow spherical waste up to 65 mm to move through the chamber without lodging.
What auto-coupling mounting base connects this pump to discharge risers?
Mechanical mounting for the SLV/65/80/30/2/50B/C is configured around a standard guide rail auto-coupling for straightforward pit alignment.
