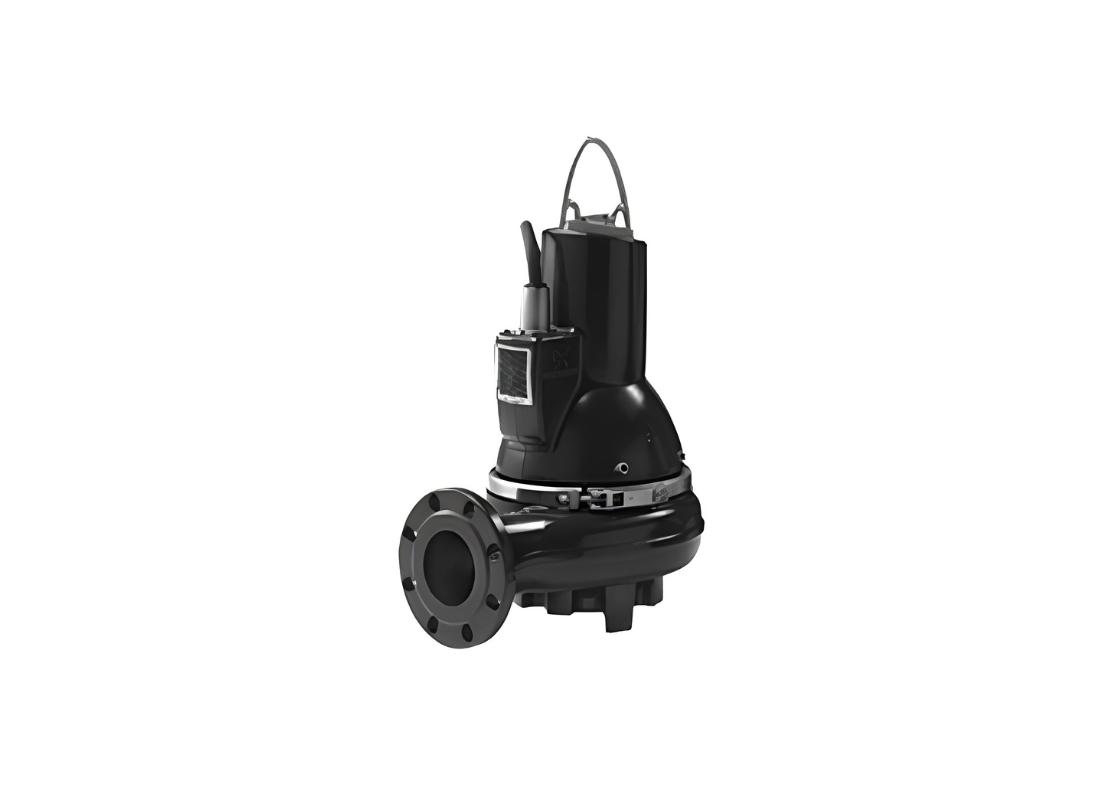

Grundfos SLV.80.100.11.4.50B.C Cast Iron 4-Pole Submersible Pump for Sewage Handling with SuperVortex Impeller

Highlighting a profoundly resilient material foundation, the SLV.80.100.11.4.50B.C incorporates a spectacularly dense EN-GJL-250 cast iron exterior architecture. Designed explicitly as a rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage, this specific machine flawlessly tackles rigorous environmental conditions.

The precisely manufactured dimensional layout is specifically optimized to effortlessly facilitate dense raw material transfers. Thick unscreened waste liquids are drawn powerfully through an 80 millimeter flanged suction inlet and immediately ejected out of a substantially wider 100 millimeter discharge port, actively averting structural clogs and catastrophic system bottlenecks.

Generating absolute physical authority over severe submerged liquid volumes, the sophisticated motor heavily relies on a balanced 3-phase 415v electrical supply matrix. Needing only a 1.1 kW power input while carefully drawing 2.9 Amps during continuous runtime, the rotational assembly produces an approximate maximum flow output measuring precisely 984 L/Min confidently.

Guaranteeing unyielding fluid optimization across challenging subterranean operations, the reinforced structure forces heavy suspended liquids vertically to achieve an approximate maximum head of 7.2 meters. With integrated embedded thermal controls continuously monitoring the winding matrix, the apparatus flawlessly avoids destructive temperature spikes to prolong the operational lifecycle.

Features

• Engineered around a high-capacity SuperVortex impeller to safely allow passage of raw debris and solids up to 80 millimeters.
• Uses an exclusive stainless-steel clamp assembling system ensuring fast and effortless pump housing separation for service.
• Utilizes a high-grade dual silicon carbide primary shaft seal configuration (SIC/SIC) to entirely eliminate internal chamber leaks.
• Includes dedicated internal moisture sensor arrays for accurate early-warning monitoring of submerged structural casing conditions.
• Provides top-tier ingress defense through an IP68 enclosure class rating accompanied by an H level thermal insulation rating.
• Calibrated to spin steadily at 1452 rpm, effectively balancing intense raw flow capacity with long-term mechanical longevity.
• Fitted securely with an extended 10 meter heavy-duty 07RN8-F cable jacket engineered for challenging deep water immersions.
