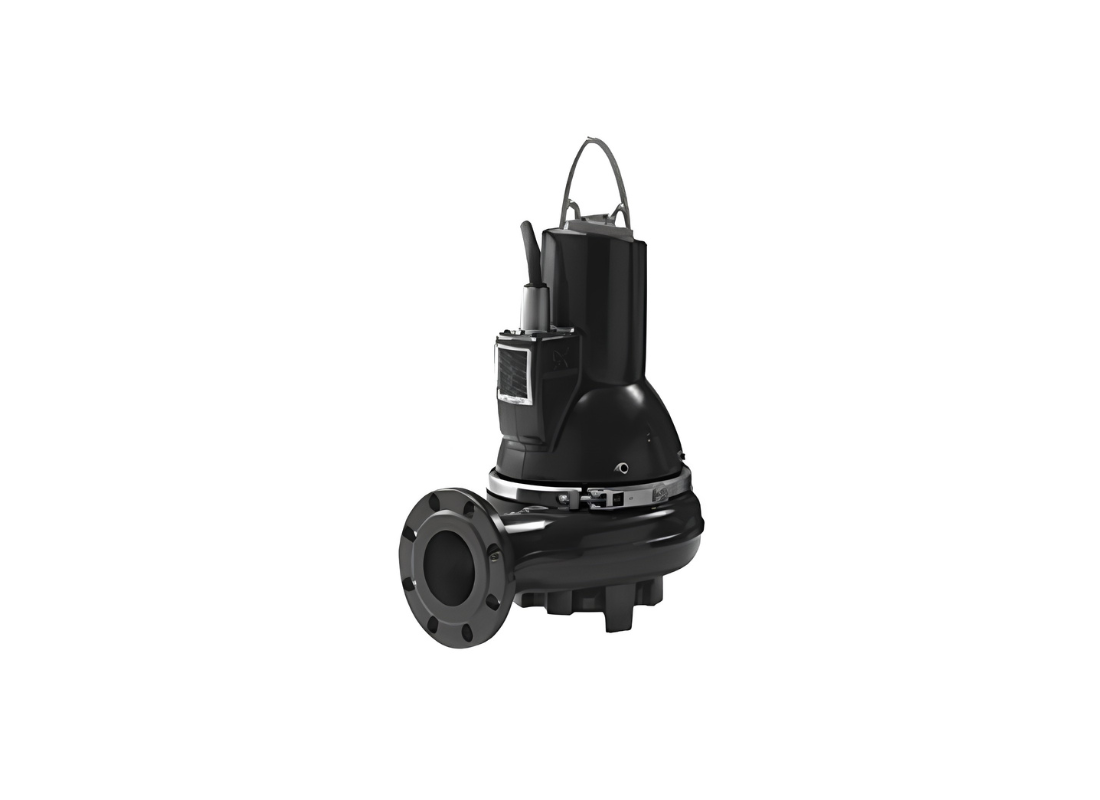

Grundfos SLV.80.100.22.4.50B.C Cast Iron 4-Pole Submersible Pump for Wastewater with SuperVortex Impeller

Rising to conquer brutal continuous fluid burdens within immense municipal layouts, the SLV.80.100.22.4.50B.C performs exceptionally as an ultra-durable non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The physical assembly tackles continuous operational tension with total structural confidence.

Fully optimizing internal mechanical pathways to evade destructive clogging, the dimensional cast iron housing leverages a widely expanded discharge configuration. Highly viscous untreated sludge travels forcefully into an 80 millimeter flanged suction port and accelerates rapidly outward via a heavy 100 millimeter outlet flange, thereby dramatically minimizing destructive internal turbulence.

Providing profound kinetic capabilities against extreme submerged environmental forces, the primary core houses a highly refined 3-phase 415v electrical framework responsible for delivering a 2.2 kW power input. The internal mechanism carefully restricts the intense electrical consumption precisely at 5.4 Amps, seamlessly producing an approximate maximum flow capacity of 1332 L/Min.

Completely mitigating the profound physical risks associated with intense depth installations, this powerful piece of machinery easily dominates vertical liquid resistance to establish an approximate maximum head of 12.6 meters. Complete with dedicated internal thermal protection systems, the motor assembly actively neutralizes devastating core heat buildup across its extensive lifetime.

Features

• Fitted with an advanced SuperVortex impeller to cleanly process concentrated long fibres and solid materials up to 80 millimeters.
• Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and heavy cast pump head.
• Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) heavily shielding the core rotational drive components.
• Includes dedicated internal moisture sensor arrays for highly accurate early-warning monitoring of extreme submerged structural conditions.
• Constructed to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class thermal rating profile.
• Designed with a 1462 rpm rated speed motor architecture that continuously maximizes long-term reliability and physical handling capacity.
• Secured exclusively with a heavily sheathed 10 meter 07RN8-F electrical cable structured to survive brutal long-term liquid exposures.
