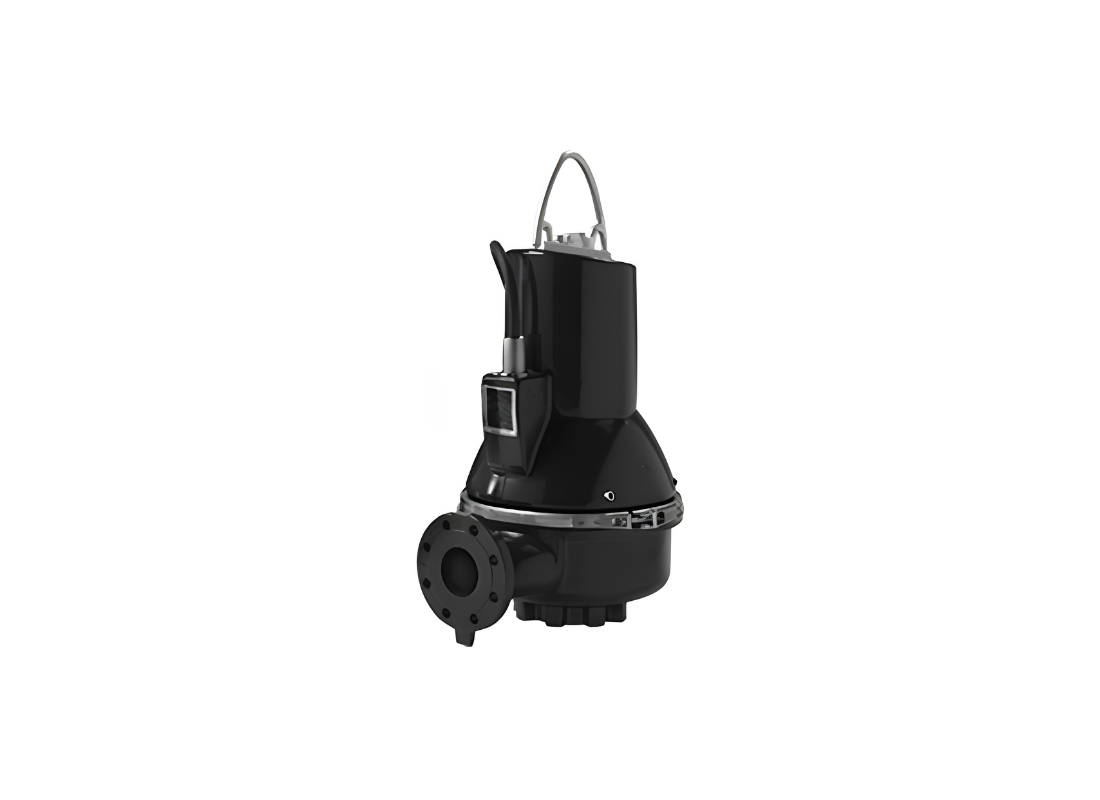

Grundfos SLV.80.80.11.4.50B.C Cast Iron 4-Pole Submersible Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a primary structural material choice, the SLV.80.80.11.4.50B.C integrates an ultra-durable EN-GJL-250 cast iron housing. Acting as a rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage, this massive assembly effortlessly resists severe mechanical degradation during intermittent and continuous submerged operations.
Detailing the internal fluid velocity paths, this elite pumping solution utilizes a carefully optimized piping layout. The overall dimensional architecture connects an 80 millimeter flanged suction port with a matching 80 millimeter discharge outlet. This precisely engineered port geometry prevents critical bottlenecks while aggressively moving dense materials.
By addressing long-term operating cost scaling and energy efficiency, the 3-phase 415v configuration produces a low-consumption 1.1 kW power input. Operating smoothly at 2.9 Amps, the internal motor effectively translates electrical potential into active fluid displacement, effortlessly generating an approximate maximum flow output measuring 966 L/Min.
The meticulously balanced structural foundation systematically overcomes environmental vertical resistance, actively achieving an approximate maximum head of 8.1 meters. Maintaining strict thermal and kinetic stability, this configuration ensures the entire structural foundation avoids premature mechanical wear frequently seen in intensive submerged use cases.
Features
- Engineered around a high-capacity SuperVortex impeller to safely allow passage of raw debris and solids up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and pump head.
- Defended by a highly resilient silicon carbide mechanical shaft sealing ring (SIC/SIC) shielding the core rotational components.
- Includes dedicated internal moisture sensor arrays for accurate early-warning monitoring of submerged structural conditions.
- Constructed to rigorous IP68 enclosure specifications while maintaining an H class motor winding thermal insulation profile.
- Designed with a 1452 rpm rated speed motor architecture that maximizes long-term reliability and physical fluid handling capacity.
- Provided securely with an extended 10 meter heavy-duty 07RN8-F cable jacket engineered for challenging deep water immersions.
SPECIFICATIONS
| Max Flow | 966 L/Min |
| Max Head | 8.1 m |
| Power | 1.1 kW / 415v |
| Rated Current | 2.9 Amps |
| Suitable For | Raw Sewage, Thick Sludge |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
At full operating capacity, the Grundfos SLV.80.80.11.4.50B.C moves up to 966 L/Min to keep liquid levels controlled during peak inflow.
How many meters of dynamic lift does this pump provide?
Under rated operating head, the SLV.80.80.11.4.50B.C can lift water to a maximum dynamic head of approximately 8.1 m through vertical risers.
How much electricity and current does this pump draw under load?
Running on 415 V three-phase power supplies, the SLV-80-80-11-4-50B-C is driven by a 1.1 kW motor rated at 2.9 Amps.
Where is this pump typically deployed across residential and rural systems?
Routine operational tasks matching the SLV 80 80 11 4 50B C encompass Swirling vortex action produced by moves solids up to 80 mm freely across its recessed SuperVortex chamber across connected networks.
How is this pump mounted for quick inspection and servicing?
Installation of the SLV/80/80/11/4/50B/C is streamlined using a standard guide rail auto-coupling, enabling fast docking onto existing discharge lines.
