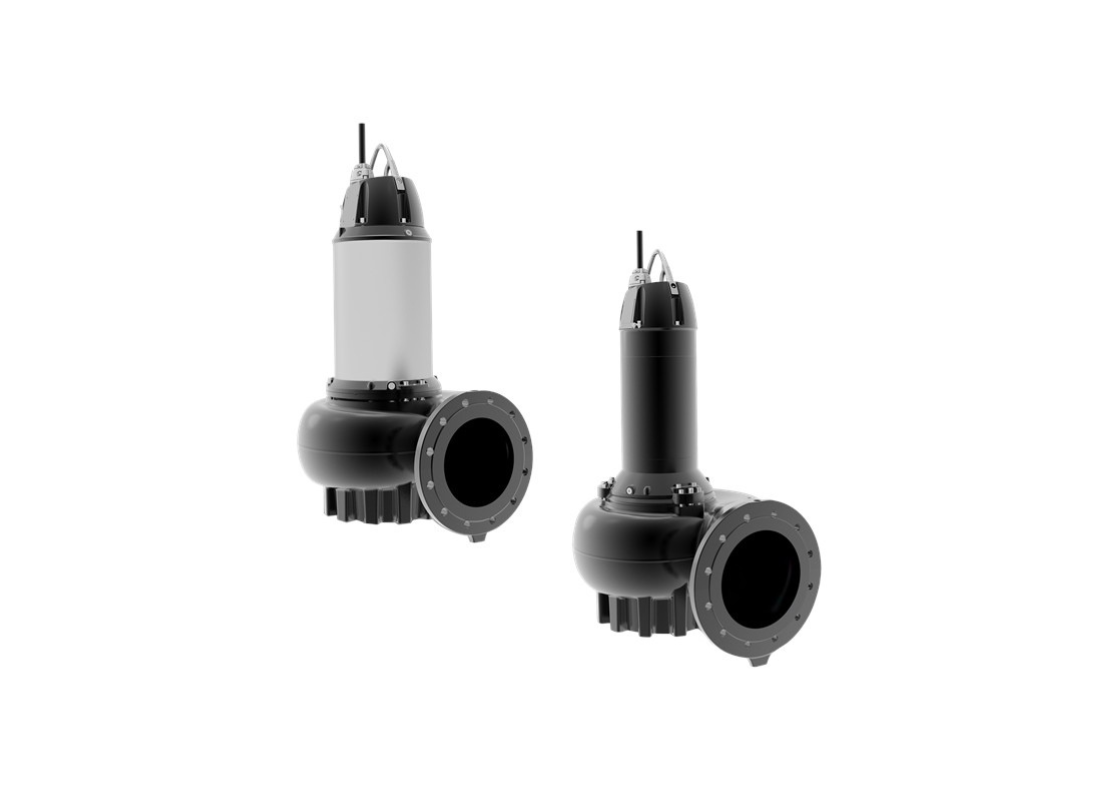

Grundfos SLV.80.80.130.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for Car Parks with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Public networks face the demanding requirements of transferring dense sewage without incurring blockages. The SLV 80 80 130 2 52H N 51D A T submersible pump integrates an 80 mm outlet designed for intense throughput. Supplying an 80 mm free passage, this 13 kW system handles raw municipal effluent, supporting efficient drainage operations.
Running on a three-phase 415v electrical supply, the unit achieves a maximum flow capacity of approximately 2286 L/Min. This supports proper tank circulation. The heavy-duty pump reaches a maximum head of 42 m, elevating dense sewage from subterranean basins to treatment levels using its advanced SuperVortex impeller.
The core casing is built from durable cast iron to withstand aggressive subsurface forces. A 100 mm inlet actively feeds the internal volute, accommodating thick raw sludge. To combat unexpected water intrusion, specialized moisture sensors continuously monitor the housing cavity, safeguarding the critical motor assembly.
Routine serviceability is prioritized within this industrial layout. A double shaft seal deployed via a unique cartridge design provides structural containment while allowing swift manual replacements. Operators utilize a direct cable entry connector for rapid isolation, allowing the mechanism to perform reliably in sewage applications.
Features
- Constructed using EN 1561 EN-GJL-250 cast iron for the primary pump housing and internal motor enclosure
- Incorporates an EN 1563 EN-GJS-500-7 cast iron impeller engineered for continuous heavy sewage management
- Designed with a maximum installation depth of 20 m to accommodate expansive municipal subterranean lift stations
- Features a dedicated IP68 enclosure class rating coupled with Class H insulation for the electric motor
- Utilizes a precisely balanced mechanical primary shaft seal constructed from rugged silicon carbide
- Includes a 15 m long S1BN8-F power cable to ensure flexible electrical connectivity across deep site locations
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 264 kg
SPECIFICATIONS
| Max Flow | 2286 L/Min |
| Max Head | 42 m |
| Power | 13 kW / 415v |
| Rated Current | 26 Amps |
| Suitable For | Wastewater, Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this unit move through the pipework?
Peak fluid displacement on the Grundfos SLV.80.80.130.2.52H.N.51D.A.T delivers up to 2286 L/Min under rated operating conditions.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 42 m with the SLV.80.80.130.2.52H.N.51D.A.T under standard duty points.
Does this pump run on standard household power or three-phase power?
It operates on 415 V three-phase power, with the SLV-80-80-130-2-52H-N-51D-A-T utilizing a durable 13 kW motor rated at 26 Amps.
What maximum particle diameter can safely pass through the casing?
To prevent clogging from wastewater solids and fibrous waste, the SLV 80 80 130 2 52H N 51D A T provides dedicated passage for particles up to 80 mm.
How does this pump connect into wet well pipework?
For rapid positioning and retrieval, the SLV/80/80/130/2/52H/N/51D/A/T features a standard guide rail auto-coupling suited for guide rail auto-coupling pedestals.
