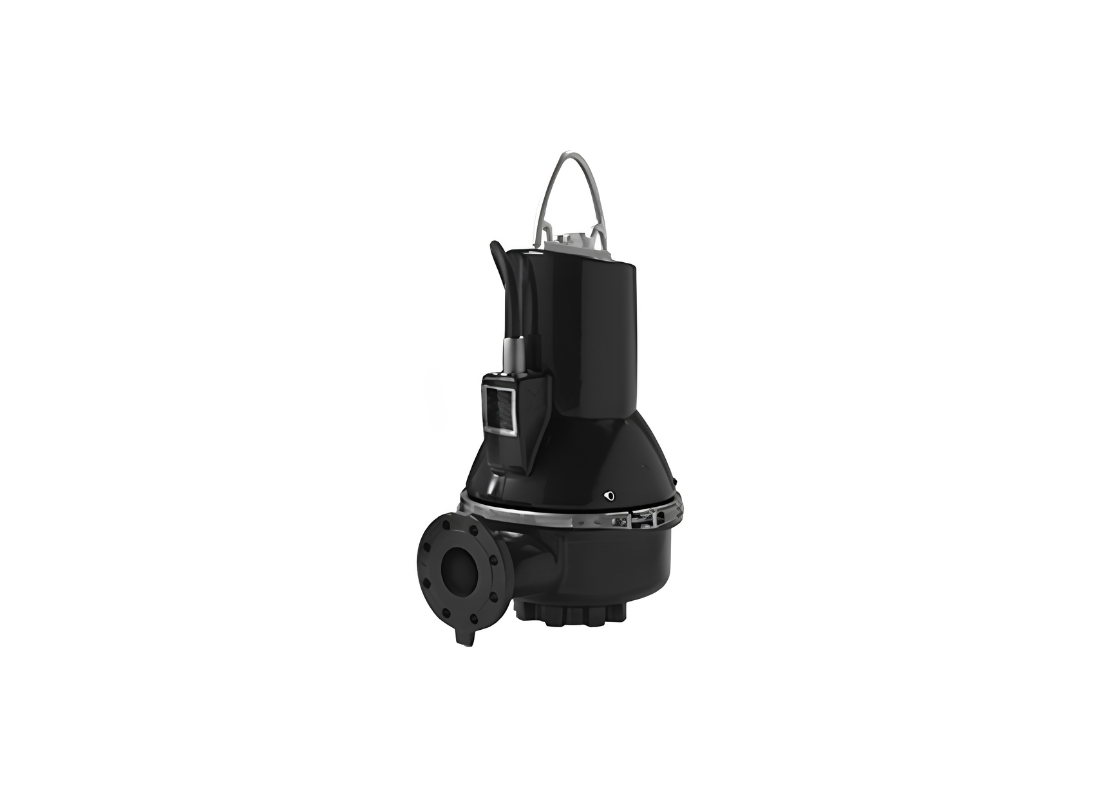

Grundfos SLV.80.80.22.4.50B.C Cast Iron 4-Pole Submersible Pump for Wastewater with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Establishing the explicit operational load challenge encountered in deep municipal settings, the SLV.80.80.22.4.50B.C operates as a highly durable non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It consistently handles absolute continuous operational loads with total structural confidence and environmental safety.
Highlighting a primary structural material choice, the heavy-duty commercial unit is cast from superior EN-GJL-250 grade iron. This incredibly thick containment architecture actively nullifies external mechanical shockwaves and seamlessly directs highly aggressive fluids straight from a wide 80 millimeter inlet port directly out through the corresponding 80 millimeter discharge flange.
Detailing hydraulic configuration and circulation stability, the formidable assembly leverages a precisely balanced 3-phase 415v electrical infrastructure generating a potent 2.2 kW power input. Safely regulating consumption at 5.4 Amps during maximum runtime, the internal rotational mechanism smoothly converts energy to reach an approximate maximum flow volume of 1164 L/Min.
Addressing the safety protection containment requirements of intense submerged installations, this specific model effortlessly drives thick liquids upwards to conquer an approximate maximum head of 13.1 meters. The integrated thermal switch protection matrix guarantees the core motor winding avoids destructive temperature spikes, greatly extending the operational lifespan of the hardware.
Features
- Fitted with an advanced SuperVortex impeller to process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) shielding the core rotational components.
- Includes dedicated internal moisture sensor arrays for accurate monitoring of deep subterranean submerged conditions.
- Constructed to rigorous IP68 enclosure specifications while maintaining an H class insulation thermal rating profile.
- Designed with a 1462 rpm rated speed motor that maximizes long-term reliability and heavy physical fluid handling capacity.
- Secured exclusively with a 10 meter 07RN8-F cable casing structured to survive long-term liquid chemical exposures.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 13.1 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5.4 Amps |
| Suitable For | Thick Activated Sludge |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum flow capacity of this pump per minute?
Displacing fluid into connected headers, the Grundfos SLV.80.80.22.4.50B.C sustains up to 1164 L/Min of volumetric throughput.
How high can this pump lift water vertically?
Vertical elevation capability on the SLV.80.80.22.4.50B.C reaches a maximum dynamic head of approximately 13.1 m under rated conditions.
What voltage supply and motor power does this pump need?
Powered by a dedicated 2.2 kW motor, the SLV-80-80-22-4-50B-C connects to 415 V three-phase mains power with a rated current draw of 5.4 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Manufactured with quality materials, the SLV 80 80 22 4 50B C incorporates high-grade alloy for dependable longevity and resistance to fluid erosion.
What connection layout and port dimensions are featured on this unit?
Connecting via a standard auto-coupling, the SLV/80/80/22/4/50B/C aligns cleanly with system plumbing headers.
