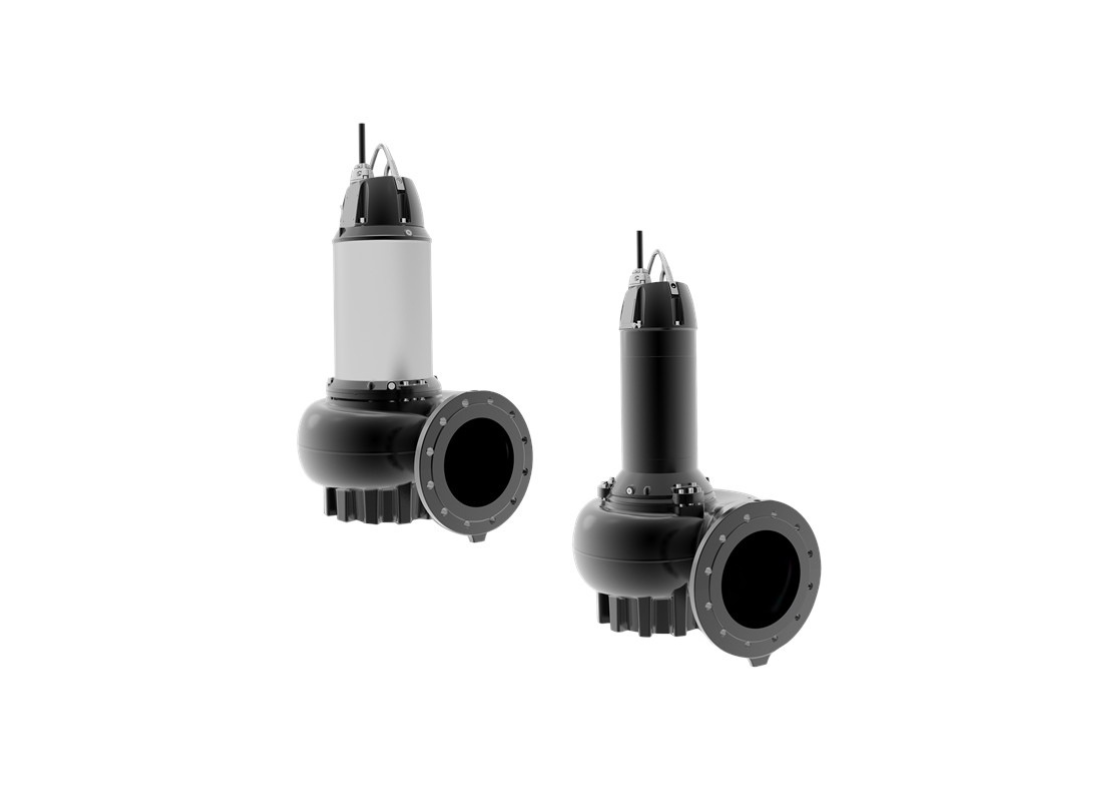

Grundfos SLV.80.80.220.2.52H.N.51D.A.T Cast Iron 2-Pole Wastewater Pump for Garages with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Forged from resilient cast iron, the SLV 80 80 220 2 52H N 51D A T submersible pump is engineered to endure demanding sub-surface environments. Utilizing a specialized 80 mm outlet to transfer heavily laden effluent, this 22 kW platform supports pipeline flow.
Fluid evacuation requirements in deep underground car parks demand rapid turnover, which this unit answers with a maximum flow of approximately 2934 L/Min. Powered through a three-phase 415v connection, the SuperVortex impeller enables the machine to deliver a peak head of 59 m under pressure.
An expansive 100 mm inlet diameter acts as the primary fluid pathway, ingesting raw slurry without choking internal clearances. To protect these operational components, sensitive moisture sensors reside inside the main enclosure to track liquid ingress, protecting against stator electrical failure.
Minimizing facility downtime is an objective achieved through a dual cartridge double shaft seal, which operators can swap quickly. An innovative cable entry connector enhances this modular approach, making this mechanical assembly easy to maintain even deep within flooded subterranean basins.
Features
- Manufactured utilizing EN 1561 EN-GJL-250 grade cast iron for enhanced structural cavity rigidity
- Equipped with an EN 1563 EN-GJS-500-7 cast iron impeller capable of handling dense solid municipal waste
- Optimized for deep operational immersion with an officially rated maximum installation depth of 20 m
- Powered by a high-efficiency motor carrying Class H insulation paired with an IP68 enclosure rating
- Incorporates a highly resilient primary mechanical shaft seal forged from tough silicon carbide
- Fitted with an industrial S1BN8-F flexible power cable extending 15 m to simplify remote electrical hookups
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 278 kg
SPECIFICATIONS
| Max Flow | 2934 L/Min |
| Max Head | 59 m |
| Power | 22 kW / 415v |
| Rated Current | 41 Amps |
| Suitable For | Municipal Pumping |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow rate does this pump achieve during heavy influx?
Moving liquid through the system, the Grundfos SLV.80.80.220.2.52H.N.51D.A.T maintains an operational throughput of up to 2934 L/Min during peak demand.
What maximum vertical water column can this pump maintain?
Dynamic lift generated by the SLV.80.80.220.2.52H.N.51D.A.T reaches a maximum elevation head of approximately 59 m across discharge lines.
How much power does the motor consume during standard operation?
Connecting across 415 V three-phase lines, the SLV-80-80-220-2-52H-N-51D-A-T draws approximately 41 Amps with an efficient 22 kW motor.
What materials are used to construct the pump casing and impeller?
Durable high-grade alloy construction gives the SLV 80 80 220 2 52H N 51D A T exceptional structural strength and long-term protection against corrosive fluids.
What size discharge flange or connection is fitted to this pump?
Discharge pipework interfaces directly with the SLV/80/80/220/2/52H/N/51D/A/T through a standard auto-coupling for quick field installation.
