SKU: 98625947

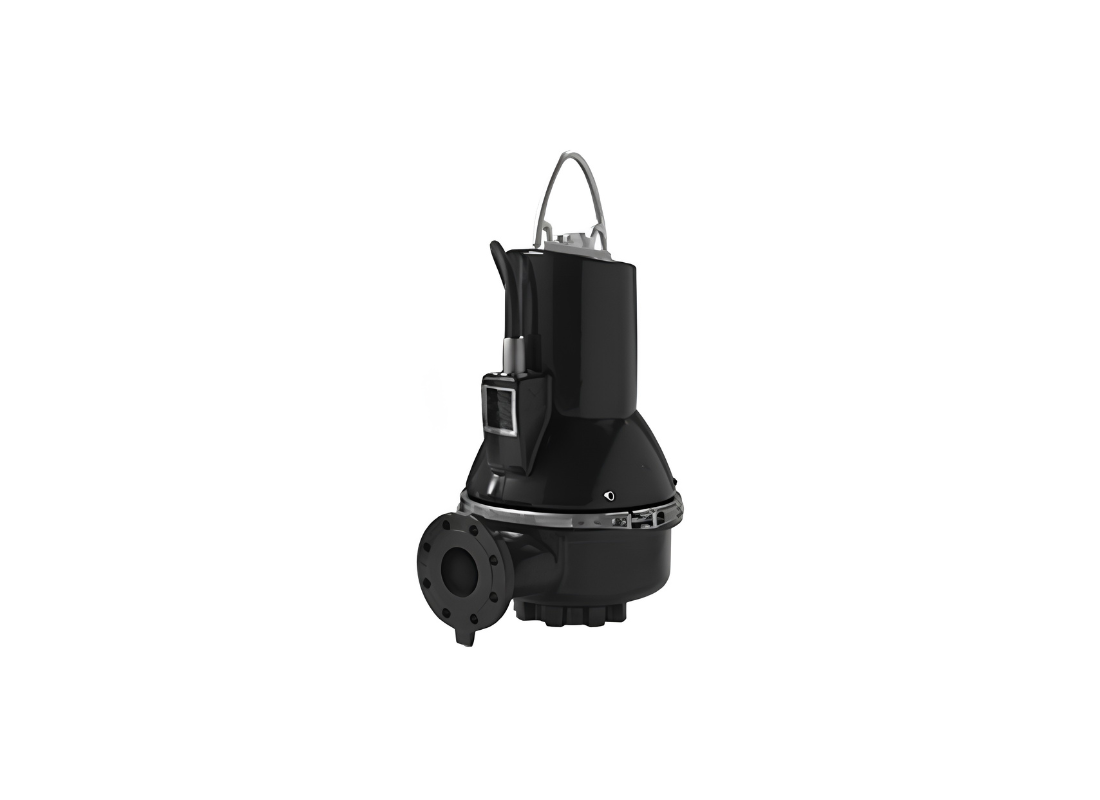

Grundfos SLV.80.80.60.2.50B.C Cast Iron 2-Pole Submersible Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing internal hydraulic stability and chamber dynamics, the SLV.80.80.60.2.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The unit handles extreme continuous operational stresses with unyielding physical reliability and confidence.
The heavy containment housing leverages incredibly dense EN-GJL-250 casting elements to effectively nullify intense vibration signatures. The sophisticated dimensional layout effortlessly channels volatile fluids directly from an oversized 80 millimeter inlet strictly out of the matching 80 millimeter discharge connection without delay.
Establishing total dominion over severe submerged densities, the massive rotational assembly requires a highly potent 3-phase 415v electrical framework to accommodate a 6 kW power input. The motor tightly regulates current around 12.3 Amps to smoothly translate kinetic energy into an approximate maximum flow of 1416 L/Min.
Long-term operating cost scaling and absolute environmental defense are addressed by the integrated PTC thermal switch protection matrix. By pushing extreme liquid loads aggressively upwards to overcome an approximate maximum head of 28.9 meters, the equipment securely maintains core temperature bounds and strict fluid velocities over time.
Features
- Driven by an optimized SuperVortex impeller capable of passing highly destructive solid materials up to 80 millimeters.
- Employs a specialized stainless-steel clamp assembling system to expedite motor detachment without requiring custom tools.
- Defended by an industrial-grade silicon carbide primary shaft sealing ring (SIC/SIC) to completely block liquid from the motor shaft.
- Certified with an industrial IP68 waterproof enclosure class ensuring total isolation during continuous submerged duty.
- Designed to operate at an intensive 2940 rpm, effectively maximizing raw physical liquid handling capacity over extended durations.
- Features an extended 10 meter LYNIFLEX submersible grade electrical cable to connect safely inside complex deep water containment.
SPECIFICATIONS
| Max Flow | 1416 L/Min |
| Max Head | 28.9 m |
| Power | 6 kW / 415v |
| Rated Current | 12.3 Amps |
| Suitable For | High-Velocity Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume can this unit move through the pipework?
At full operating capacity, the Grundfos SLV.80.80.60.2.50B.C moves up to 1416 L/Min to keep liquid levels controlled during peak inflow.
What maximum vertical elevation head can this pump achieve?
Under rated operating head, the SLV.80.80.60.2.50B.C can lift water to a maximum dynamic head of approximately 28.9 m through vertical risers.
Does this pump run on standard household power or three-phase power?
Running on 415 V three-phase power supplies, the SLV-80-80-60-2-50B-C is driven by a 6 kW motor rated at 12.3 Amps.
What materials make this pump durable against corrosion and wear?
High-grade high-grade alloy components in the SLV 80 80 60 2 50B C protect internal passages against corrosive fluid contact.
What auto-coupling mounting base connects this pump to discharge risers?
Installation of the SLV/80/80/60/2/50B/C is streamlined using a standard guide rail auto-coupling, enabling fast docking onto existing discharge lines.
