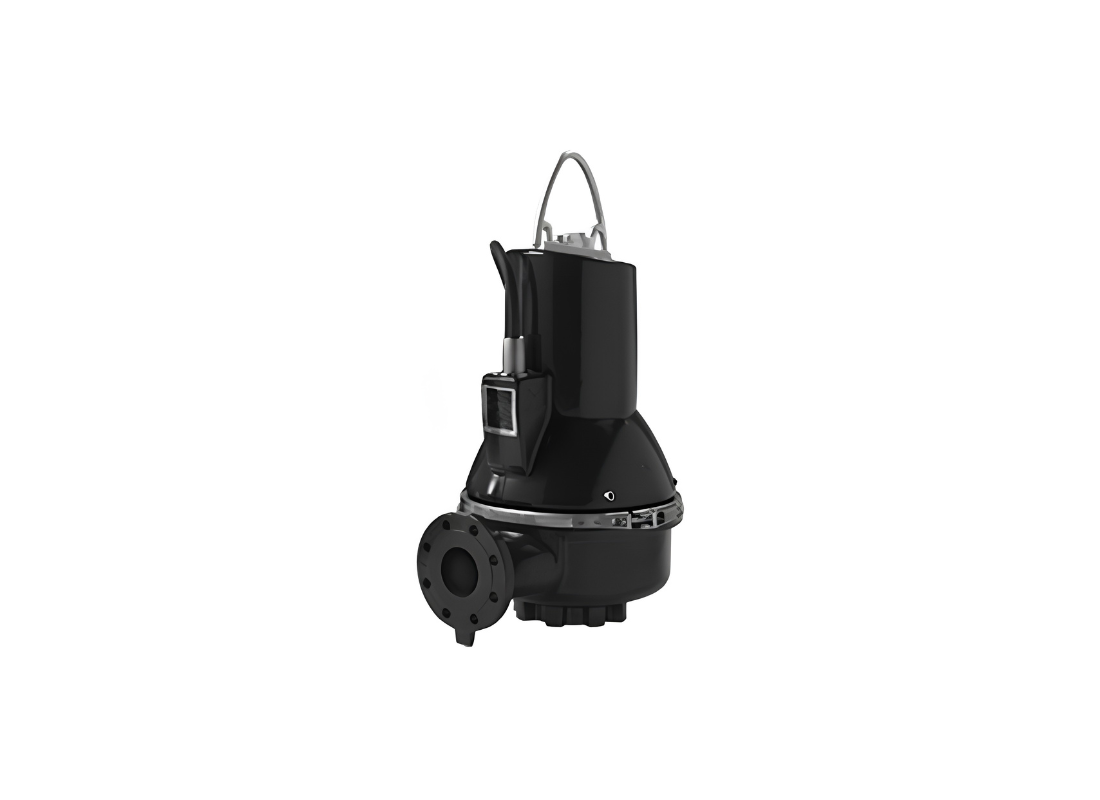

Grundfos SLV.80.80.75.2.50B.C Cast Iron 2-Pole Submersible Pump for Wastewater Handling with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing demanding long-term operational scaling and critical infrastructure protection, the SLV.80.80.75.2.50B.C acts as an extremely rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. Its meticulous engineering actively curtails downtime across municipal arrays.
By isolating the explicit environmental challenge, this formidable apparatus conquers uniquely severe liquid densities utilizing a sophisticated 3-phase 415v electrical framework. Reliably channeling 14.9 Amps to process a massive 7.5 kW power input, the internal mechanism continuously propels an approximate maximum flow of 1500 L/Min.
The entire exterior foundation is securely anchored by dense cast iron materials crafted to completely resist severe mechanical degradation. Unscreened liquids and damaging suspended solids are directed effortlessly straight from the 80 millimeter flanged suction opening entirely through to a matching 80 millimeter pressurized outlet port.
Systematic kinetic stability guarantees the structure avoids premature friction wear even when deployed into the harshest available submerged networks. Successfully conquering an approximate maximum head of 33.8 meters, the embedded thermal switch grid prevents localized motor heat buildup, definitively preserving long-term structural limits.
Features
- Engineered with an efficient SuperVortex impeller to safely allow passage of long fibres and solid materials up to 80 millimeters.
- Constructed with a unique stainless-steel clamp assembling system that enables rapid disassembly for crucial field service inspections.
- Utilizes a high-endurance silicon carbide primary shaft seal configuration (SIC/SIC) to flawlessly protect internal chamber integrity.
- Features a premium IP68 rated enclosure class paired flawlessly with an H insulation class motor for superior operational defense.
- Calibrated to spin steadily at a rapid 2921 rpm, effectively balancing intense raw flow propulsion with mechanical structural longevity.
- Supplied with a flexible 10 meter LYNIFLEX electrical cable highly jacketed to comfortably accommodate deep subterranean environments.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 33.8 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.9 Amps |
| Suitable For | Abrasive Industrial Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What peak fluid displacement volume can this pump deliver?
Moving liquid through the system, the Grundfos SLV.80.80.75.2.50B.C maintains an operational throughput of up to 1500 L/Min during peak demand.
What total dynamic head can this pump overcome in vertical pipework?
Dynamic lift generated by the SLV.80.80.75.2.50B.C reaches a maximum elevation head of approximately 33.8 m across discharge lines.
What electrical connection and motor power run this pump?
Connecting across 415 V three-phase lines, the SLV-80-80-75-2-50B-C draws approximately 14.9 Amps with an efficient 7.5 kW motor.
What primary water management tasks is this pump best suited for?
Primary tasks for the SLV 80 80 75 2 50B C include Wastewater contaminants up to 80 mm traverse cleanly through the vortex generated by its SuperVortex profile, delivering efficient water management across residential and rural systems.
What size discharge flange or connection is fitted to this pump?
Discharge pipework interfaces directly with the SLV/80/80/75/2/50B/C through a standard guide rail auto-coupling for quick field installation.
