SKU: 09001K06

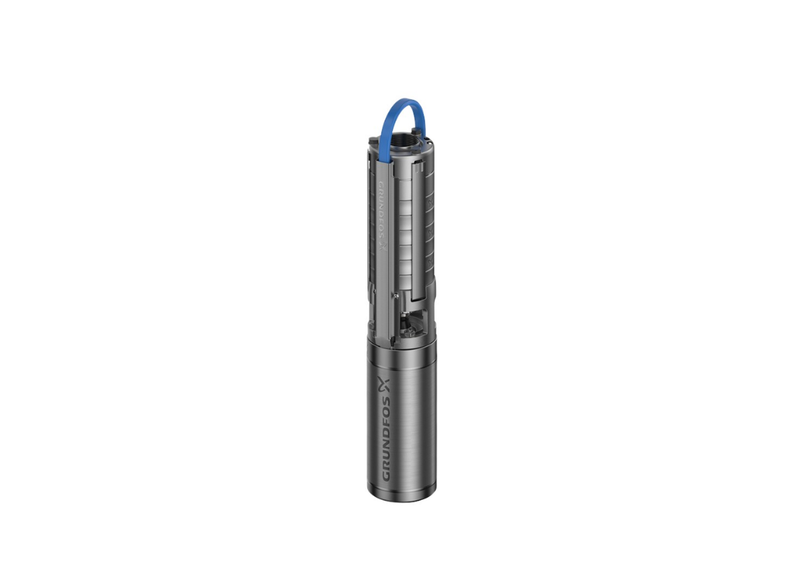

Grundfos SP 2A-6 304 Stainless Steel 4" Submersible Bore Pump with MS402 4W Motor
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos SP 2A-6 is a 4" all stainless steel submersible bore pump designed for pumping clean groundwater in domestic, irrigation and light commercial applications.
Constructed from AISI 304 stainless steel, the SP series delivers excellent corrosion resistance and long service life. The pump is fitted with a 0.37 kW MS402 4" submersible motor featuring internal thermal protection and lip seal shaft design for reliable performance.
Suitable for vertical or horizontal installation, the SP 2A-6 is ideal for raw water supply, irrigation systems, pressure boosting and groundwater lowering. The integrated non-return valve and stainless steel impellers ensure smooth, efficient operation.
FEATURES
- 4" multi-stage submersible bore pump
- Rated flow: 2 m³/h (33 L/Min)
- Rated head: 24 m
- Maximum head: 35 m
- 6 stages
- AISI 304 stainless steel pump construction
- Stainless steel impellers
- MS402 4" motor
- 0.37 kW rated motor output
- Internal thermal protection
- Lip seal shaft design
- Direct-on-line (DOL) starting
- Built-in non-return valve
- Drinking water approved
- IP68 motor protection
- Minimum bore diameter: 105 mm
SPECIFICATIONS
| Max Flow | 33 L/Min |
| Max Head | 35 m |
| Power | 0.37 kW / 240v |
| Rated Current | 3.8 Amps |
| Suitable For | Groundwater Supply / Irrigation / Pressure Boosting |
| Body Material | Stainless Steel (AISI 304) |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much water volume and dynamic lift does this pump generate?
Rated for dependable performance, the Grundfos SP 2A-6 304 provides up to 33 L/Min in flow and up to 35 m in head, depending on operating conditions.
How much electricity and current does this pump draw under load?
Electrical power for the SP 2A-6 304 requires a 240v connection, driving an efficient 0.37 kW motor that draws 2A.
What materials protect the wetted parts against aggressive chemical attack?
Structural defense on the SP-2A-6-304 is provided by a rugged Stainless Steel casing designed to withstand heavy mechanical stress.
What everyday water supply duties are best performed by this pump?
Water management applications designate the SP 2A 6 304 for Formed to fit domestic utility skids, SP 2A 6 serves deep borehole groundwater lifting across agricultural acreage and rural livestock networks, supporting consistent property operation.
How long is the official factory warranty for this pump?
Backed by Grundfos engineering, the SP/2A/6/304 carries an official 2 Years warranty with genuine manufacturer support.
