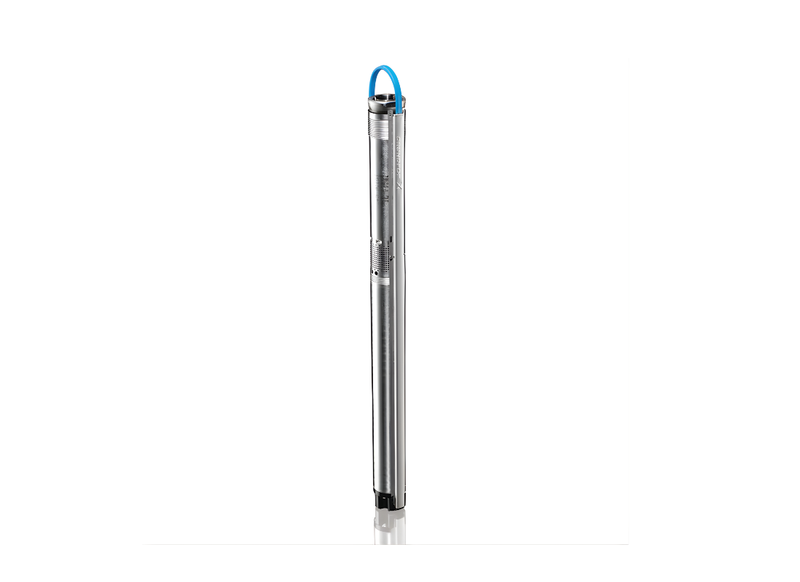

Grundfos SQN 1-35N Compact 3" Submersible Bore Pump with Motor Protection
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The Grundfos SQ 1-35 N is a high-efficiency 3" multi-stage submersible bore pump designed for domestic water supply, tank filling, irrigation and environmental applications.
Featuring floating composite impellers with tungsten carbide/ceramic bearings, the SQ series delivers reliable performance and long service life. The permanent magnet motor ensures high efficiency across a wide load range while providing built-in protection against dry running, overload, over/undervoltage, upthrust and overheating.
With soft-start capability and integrated non-return valve, the SQ 1-35 N offers smooth operation and reduced mechanical stress during start-up.
Designed for installation in boreholes as small as 76 mm, this compact stainless steel pump is ideal for residential and light agricultural applications requiring dependable groundwater supply.
FEATURES
- 3" multi-stage submersible bore pump
- Rated head: 34 m
- Maximum head: 46 m
- Rated flow: 1 m³/h (16.7 L/Min)
- Permanent magnet motor
- Built-in soft start
- Dry-run protection
- Overload and voltage protection
- Upthrust protection
- Built-in non-return valve
- Stainless steel construction (AISI 316)
- Minimum bore diameter: 76 mm
- IP68 motor protection
SPECIFICATIONS
| Max Flow | 28 L/Min |
| Max Head | 46 m |
| Power | 0.7 kW / 240v |
| Rated Current | 5.3 Amps |
| Suitable For | Domestic Water Supply / Irrigation / Bore Applications |
| Body Material | Stainless Steel (AISI 316) |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of water volume and pressure head does this pump provide?
Achieving strong system delivery, the Grundfos SQN 1-35N develops a maximum flow rate of 28 L/Min and a maximum dynamic head of 46 m across its operating curve.
Does this pump run on standard household power or three-phase power?
Running on 240v power supplies, the SQN 1-35N is driven by a 0.7 kW motor rated at 5.3 Amps.
What connection layout and port dimensions are featured on this unit?
Plumbing integration on the SQN-1-35N utilizes a dedicated standard connection layout for reliable pipeline connection.
Where is this pump commonly installed and utilized?
Primary tasks for the SQN 1 35N include clean groundwater extraction from narrow boreholes into domestic storage tanks, delivering efficient water management across residential and rural systems.
Does this pump include an official manufacturer warranty?
You receive a certified 2 Years manufacturer warranty with the SQN/1/35N, giving you long-term protection and support.
