SKU: 96109225

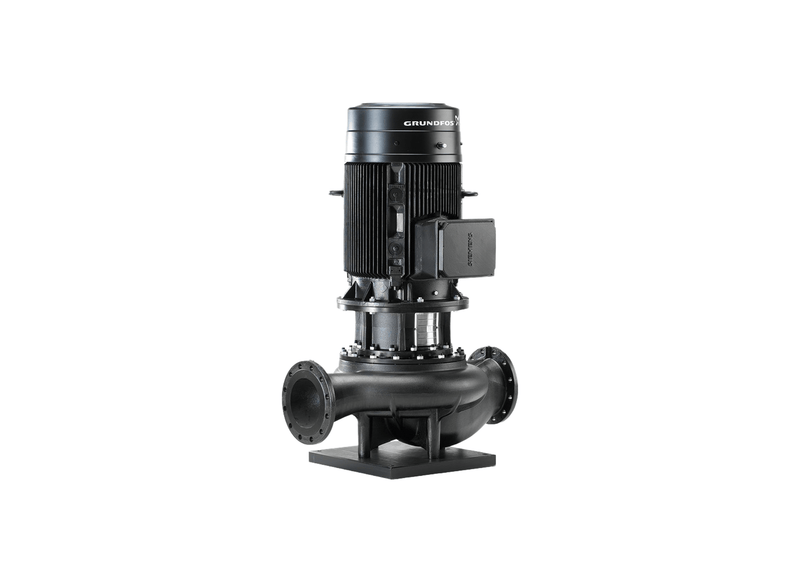

Grundfos TP 100-310/2 Cast Iron 15kW Three Phase Inline Centrifugal Pump with Bronze Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The TP 100-310/2 single-stage in-line pump delivers a rated hydraulic flow capacity of 2483 L/Min with a maximum operational head threshold of 31 m. Designed with opposite suction and discharge ports, the unit connects into commercial plumbing pipework using standardized DN 100 flanged connections and compact dimensions.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision bronze impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 194 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 415 V three-phase supply rated at 28 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 100 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- Internal hydraulic rotor assembly incorporating a precision manufactured bronze impeller.
- Rated hydraulic output capacity achieving 31 m maximum head and 2483 L/Min flow rate.
- Standardized DN 100 flanged connection ports for commercial HVAC and heating installation.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 2483 L/Min |
| Max Head | 31 m |
| Power | 15 kW / 415v |
| Rated Current | 28 Amps |
| Suitable For | Campus chilled-water systems |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What metallurgy is selected for the pump body to resist abrasive wear?
Durable high-grade alloy construction gives the Grundfos TP 100-310/2 exceptional structural strength and long-term protection against corrosive fluids.
What peak dynamic elevation does this pump develop?
To overcome vertical elevation resistance, the TP 100-310/2 develops a maximum pumping head of approximately 31 m.
How much water volume can this unit move through the pipework?
At full operating capacity, the TP-100-310-2 moves up to 2483 L/Min to keep liquid levels controlled during peak inflow.
Which casing and impeller materials provide long service life in this pump?
Structural defense on the TP 100 310 2 is provided by a rugged EN-GJL-250 casing designed to withstand heavy mechanical stress.
Does this pump run on standard household power or three-phase power?
Running on 415 V three-phase power supplies, the TP/100/310/2 is driven by a 15 kW motor rated at 28.0 Amps.
