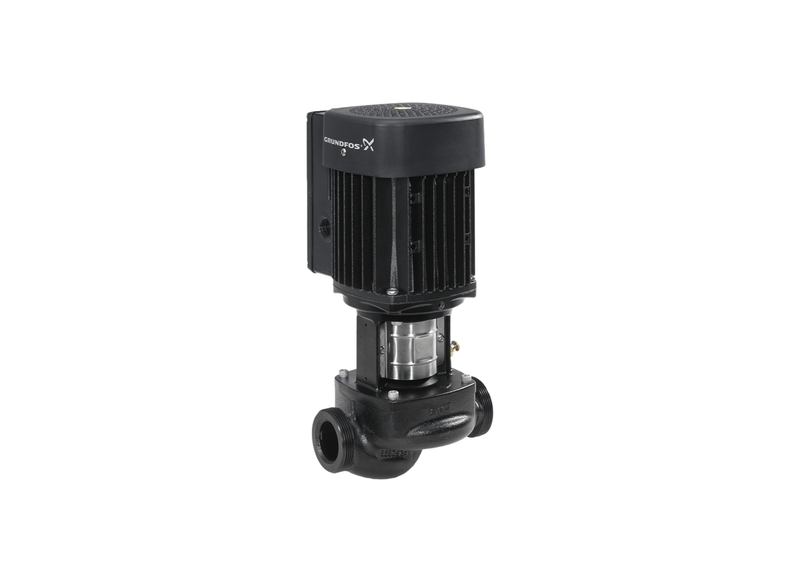

Grundfos TP 32-90/2 Cast Iron 0.37kW Single Phase Inline Centrifugal Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Hydraulic performance in the TP 32-90/2 single-stage centrifugal inline pump reaches a rated flow volume of 146 L/Min alongside a maximum operational head of 9 m. The unit mounts directly in line with system pipework using standardized DN 32 flanged connection ports for efficient installation.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision composite impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 13 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 240 V single-phase supply rated at 2.60 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 32 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- Standardized DN 32 flanged connection ports for commercial HVAC and heating installation.
- Internal hydraulic rotor assembly incorporating a precision manufactured composite impeller.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- Rated hydraulic output capacity achieving 9 m maximum head and 146 L/Min flow rate.
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 146 L/Min |
| Max Head | 9 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.6 Amps |
| Suitable For | Small heating loops |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 32 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Displacing fluid into connected headers, the Grundfos TP 32-90/2 sustains up to 146 L/Min through a 32 mm flanged connection of volumetric throughput.
Is the pump body built to withstand harsh and corrosive liquids?
Durable Cast Iron construction gives the TP 32-90/2 exceptional structural strength and long-term protection against corrosive fluids.
What are the power requirements and running amperage for this pump?
Powered by a dedicated 0.37 kW motor, the TP-32-90-2 connects to 240v single-phase mains power with a rated current draw of 2.6 Amps.
How deep can this pump be submerged underwater?
Operating comfortably across temperatures -25°C to 120°C, the TP 32 90 2 supports diverse fluid circuits.
What is the maximum vertical lift capacity of this pump?
Under rated operating head, the TP/32/90/2 can lift water to a maximum dynamic head of approximately 9 m through vertical risers.
