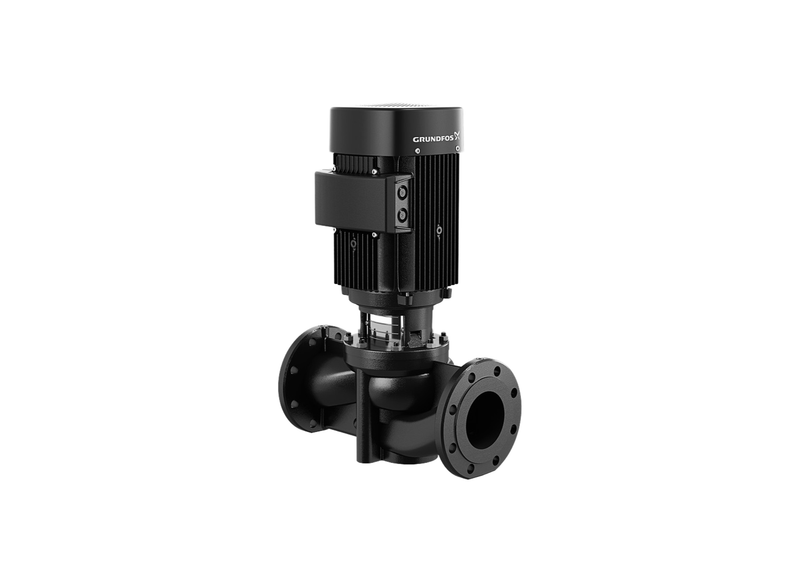

Grundfos TP 40-60/2 Cast Iron 0.25kW Three Phase Inline Centrifugal Pump with Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Thermal protection in the TP 40-60/2 inline pump is provided by Class F motor insulation, an IP55 enclosure rating, and internal PTC thermistor sensors. The drive motor delivers 0.25 kW output power to achieve a maximum hydraulic head of 6 m under peak system demand.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision stainless steel impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 19.9 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 415 V three-phase supply rated at 1.12 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 40 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- Internal hydraulic rotor assembly incorporating a precision manufactured stainless steel impeller.
- Rated hydraulic output capacity achieving 6 m maximum head and 173 L/Min flow rate.
- Standardized DN 40 flanged connection ports for commercial HVAC and heating installation.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 173 L/Min |
| Max Head | 6 m |
| Power | 0.25 kW / 415v |
| Rated Current | 1.12 Amps |
| Suitable For | Underfloor heating |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What materials make this pump durable against corrosion and wear?
High-grade Cast Iron components in the Grundfos TP 40-60/2 protect internal passages against corrosive fluid contact.
What electrical supply parameters are needed for this pump motor?
It operates on 415v three-phase power, with the TP 40-60/2 utilizing a durable 0.25 kW motor rated at 1.12 Amps.
What are the maximum installation depth and liquid temperature boundaries?
Thermal ratings for the TP-40-60-2 accommodate working liquid temperatures -25°C to 120°C under standard operating pressure.
How much pumping height does this pump provide?
Pumping performance for the TP 40 60 2 provides up to 6 m of vertical dynamic lift, depending on system friction and line sizing.
What peak fluid displacement volume can this pump deliver?
Moving liquid through the system, the TP/40/60/2 maintains an operational throughput of up to 173 L/Min during peak demand.
