SKU: 98585759

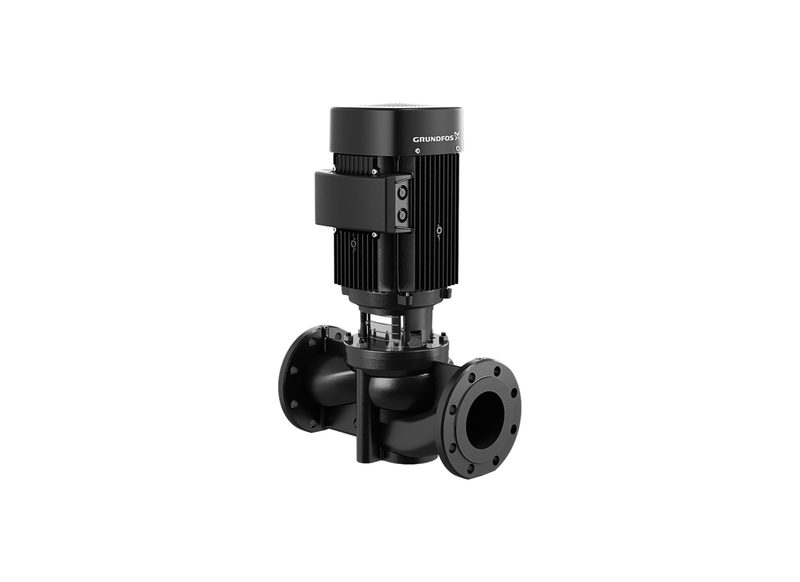

Grundfos TP 65-120/2 Cast Iron 1.1kW Three Phase Inline Centrifugal Pump with Stainless Steel Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The TP 65-120/2 in-line pump combines a 1.1 kW electric motor with an inline volute casing featuring opposite DN 65 flanged ports. Hydraulic performance delivers a rated flow volume of 428 L/Min and a maximum head limit of 12 m in mechanical installations.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision stainless steel impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 32.6 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 415 V three-phase supply rated at 4.35 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 65 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- Internal hydraulic rotor assembly incorporating a precision manufactured stainless steel impeller.
- Rated hydraulic output capacity achieving 12 m maximum head and 428 L/Min flow rate.
- Standardized DN 65 flanged connection ports for commercial HVAC and heating installation.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 428 L/Min |
| Max Head | 12 m |
| Power | 1.1 kW / 415v |
| Rated Current | 4.35 Amps |
| Suitable For | Condenser-water circulation |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor power rating and running current power this pump?
Under full load conditions, the motor in the Grundfos TP 65-120/2 delivers 1.1 kW on a 415v line drawing 4.35 Amps.
What submersion depth limits and fluid temperatures apply to this pump?
Tested for thermal durability, the TP 65-120/2 tolerates working fluid temperatures -25°C to 120°C.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 12 m with the TP-65-120-2 under standard duty points.
How much water volume can this pump displace through its outlet?
Discharge throughput on the TP 65 120 2 reaches a maximum flow rate of approximately 428 L/Min under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the TP/65/120/2 are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
