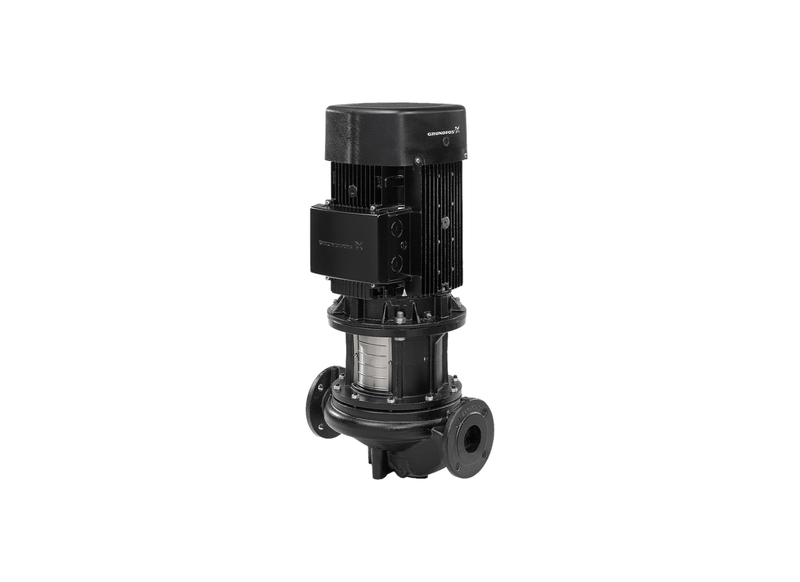

Grundfos TP 65-210/2 Cast Iron 3kW Three Phase Inline Centrifugal Pump with Bronze Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Continuous water movement across commercial heating networks relies on the TP 65-210/2 inline pump, delivering 772 L/Min rated flow. The 415 V electric motor draws 11 Amps nominal current to achieve a maximum head of 21 m across peak load periods.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision bronze impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 63.3 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 415 V three-phase supply rated at 11 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 65 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- Rated hydraulic output capacity achieving 21 m maximum head and 772 L/Min flow rate.
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- Internal hydraulic rotor assembly incorporating a precision manufactured bronze impeller.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
- Standardized DN 65 flanged connection ports for commercial HVAC and heating installation.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 772 L/Min |
| Max Head | 21 m |
| Power | 3 kW / 415v |
| Rated Current | 11 Amps |
| Suitable For | District heating |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 21 m with the Grundfos TP 65-210/2 under standard duty points.
How much fluid throughput does this pump move under full load?
Discharge throughput on the TP 65-210/2 reaches a maximum flow rate of approximately 772 L/Min under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the TP-65-210-2 are crafted from high-grade Cast Iron to maintain physical integrity and resist abrasive wear.
What electrical voltage and motor kilowatt output drive this unit?
Electrical power for the TP 65 210 2 requires a 415v three-phase connection, driving an efficient 3 kW motor that draws 11 Amps.
Can this pump operate in warm or hot water without overheating?
Liquid operating limits establish that the TP/65/210/2 accommodates temperatures -25°C to 120°C during standard duties.
