SKU: 93338875

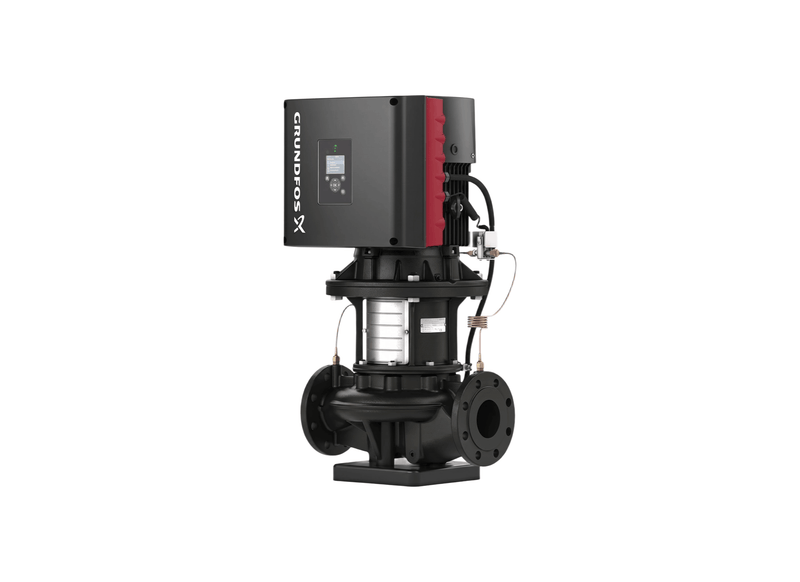

Grundfos TPE3 100-540 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Cast Iron Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Built for continuous duty in hydronic climate control networks and facility water loops, the TPE3 100-540 inline centrifugal pump combines a 18.5 kW electric motor with close-coupled in-line architecture. Suction and discharge connections feature identical DN 100 porting, enabling direct drop-in placement within mechanical room pipe headers.
The hydraulic wet-end is engineered for optimal fluid dynamics, delivering 2757 L/Min rated flow volume and reaching a maximum head capacity of 34.3 m. Cast iron housing materials (EN-GJL-250) provide reliable pressure containment under continuous duty cycles. A Cast iron impeller and BQQE seal drive liquid media across wetted passages. Net product weight measures 172 kg.
Configured for 3 x 380-480 V Three-phase power lines, the 18.5 kW drive motor draws 33.0 Amps during nominal full-load duty. Thermal operational limits support fluid handling from -25°C to 120°C across commercial hydronic networks. Connection to plant room headers relies on inline DN 100 suction and DN 100 discharge flanges.
Winding insulation complies with Class F standards within an IP55 rated motor enclosure designed for demanding plant room environments. Equipped with an onboard frequency converter and PI controller, the pump modulates motor RPM dynamically for maximum energy efficiency. Top-pull-out casing construction enables service personnel to extract drive components without disconnecting suction or discharge flanges.
Features
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
- Equal suction and discharge port diameters enable straightforward inline installation without requiring custom pipe reducer spools.
- Integrated variable frequency converter with PI controller modulates motor RPM dynamically to balance flow demand and lower energy usage.
- Top-pull-out structural layout enables complete drive head and impeller extraction without disconnecting the pump casing from system piping.
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
- EN-GJL-250 cast iron volute housing provides robust pressure containment up to 16 bar in demanding hydronic circulation loops.
- Corrosion-resistant Cast iron impeller rotor is precision-balanced to minimize operational vibration and extend bearing lifecycle.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 2757 L/Min |
| Max Head | 34.3 m |
| Power | 18.5 kW / 415v |
| Rated Current | 33.0 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor power rating and running current power this pump?
Under full load conditions, the motor in the Grundfos TPE3 100-540 delivers 18.5 kW on a 415 V three-phase line drawing 33.0 Amps.
How deep can this pump be submerged underwater?
Tested for thermal durability, the TPE3 100-540 tolerates working fluid temperatures -25°C to 120°C.
What maximum vertical elevation head can this pump achieve?
Fluid elevation through vertical risers reaches up to 34.3 m with the TPE3-100-540 under standard duty points.
How much water volume can this pump displace through its outlet?
Discharge throughput on the TPE3 100 540 reaches a maximum flow rate of approximately 2757 L/Min under standard operating conditions.
What materials make this pump durable against corrosion and wear?
Wetted components on the TPE3/100/540 are crafted from high-grade EN-GJL-250 to maintain physical integrity and resist abrasive wear.
