SKU: 93338895

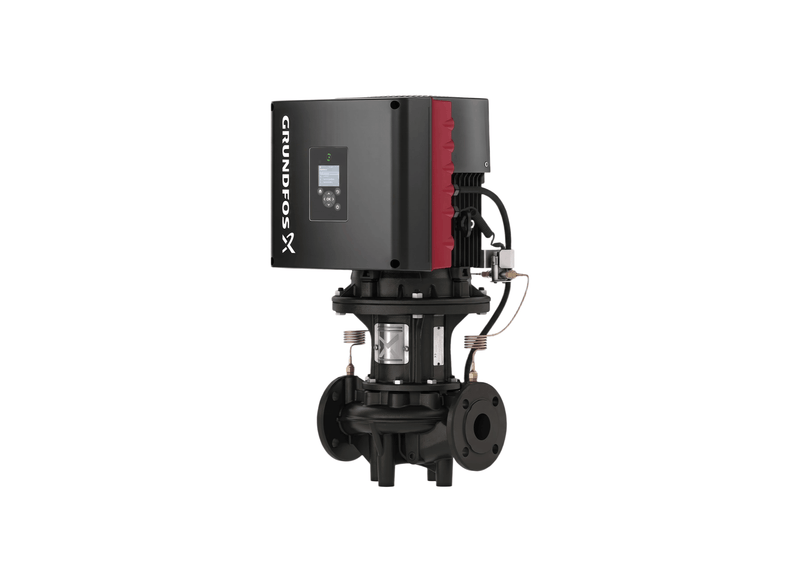

Grundfos TPE3 125-180 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Cast Iron Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The TPE3 125-180 in-line centrifugal pump is specified for clean water circulation across commercial heating and cooling installations, district energy plants, and industrial utility headers. Operating with a 7.5 kW electric drive, the unit features inline DN 125 pipe connections that mount straight into active fluid transfer lines without requiring offset piping manifolds.
Hydraulic performance testing confirms a rated output volume of 3047 L/Min with an operational head rating of 12.87 m. The EN-GJL-250 cast iron volute casing handles system line pressures up to 16 bar. Internal fluid movement is driven by a durable Cast iron impeller fitted with a BQQE mechanical seal. Product net weight equals 148 kg.
The electric drive motor operates on a 3 x 380-500 V Three-phase power source drawing 14.1 Amps nominal operating current at 7.5 kW drive output. The pump processes clean, non-aggressive fluids across liquid temperatures between -25°C to 120°C under maximum working pressures up to 16 bar. Flanged connections feature matching DN 125 inlet and outlet porting.
Built with an IP55 dust and moisture resistant motor enclosure, the unit features Class F thermal insulation for reliable continuous duty. An integrated variable frequency drive (VFD) and PI controller adjust motor speed dynamically to match real-time flow demand. Servicing is simplified by the top-pull-out architecture, allowing removal of the motor head and rotating assembly without disturbing main line pipe joints.
Features
- IP55 motor enclosure protection guards internal electrical components against ambient dust accumulation and water splash ingress.
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
- Equal suction and discharge port diameters enable straightforward inline installation without requiring custom pipe reducer spools.
- Integrated variable frequency converter with PI controller modulates motor RPM dynamically to balance flow demand and lower energy usage.
- Top-pull-out structural layout enables complete drive head and impeller extraction without disconnecting the pump casing from system piping.
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
- EN-GJL-250 cast iron volute housing provides robust pressure containment up to 16 bar in demanding hydronic circulation loops.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 3047 L/Min |
| Max Head | 12.87 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.1 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 125 mm |
| Outlet Size | 125 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid can this pump evacuate during peak demand?
Discharge throughput on the Grundfos TPE3 125-180 reaches a maximum flow rate of approximately 3047 L/Min under standard operating conditions.
Which casing and impeller materials provide long service life in this pump?
Wetted components on the TPE3 125-180 are crafted from high-grade EN-GJL-200). to maintain physical integrity and resist abrasive wear.
How much electricity and current does this pump draw under load?
Electrical power for the TPE3-125-180 requires a 415 V three-phase connection, driving an efficient 7.5 kW motor that draws 14.1 Amps.
Can this pump operate in warm or hot water without overheating?
Liquid operating limits establish that the TPE3 125 180 accommodates temperatures -25°C to 120°C during standard duties.
What total dynamic head can this pump overcome in vertical pipework?
Dynamic lift generated by the TPE3/125/180 reaches a maximum elevation head of approximately 12.87 m across discharge lines.
