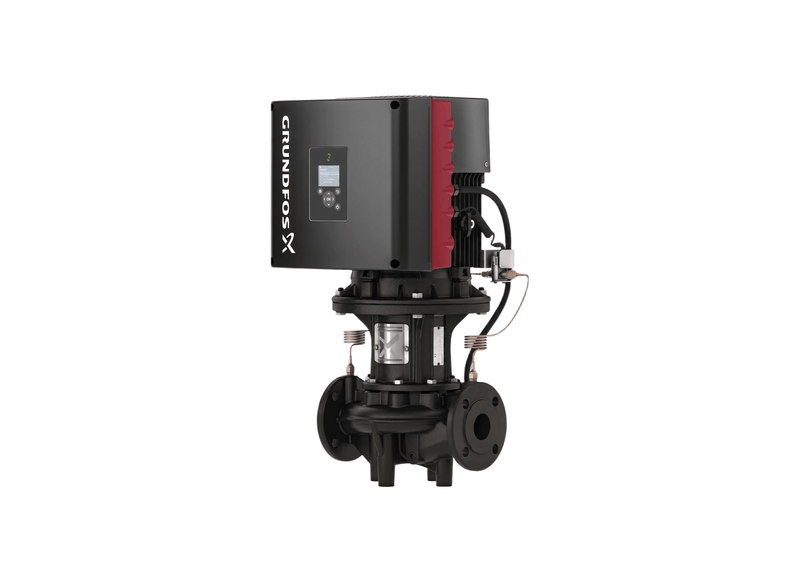

Grundfos TPE3 32-330 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Driven by an integrated 1.5 kW drive motor, the TPE3 32-330 single-stage inline centrifugal pump provides continuous liquid circulation across commercial HVAC networks, chilled water loops, and facility hydronic circuits. Its in-line structural layout incorporates matching DN 32 inlet and outlet flanges to streamline plant room pipework installation.
At full duty speed, hydraulic throughput reaches 333 L/Min with a maximum head threshold of 19.4 m. Casing construction uses robust electrocoated cast iron (EN-GJL-250) to resist internal surface oxidation. Fluid transfer is driven by a Composite impeller paired with an industry-standard BQQE shaft seal. Physical net weight is 36.3 kg.
Power requirements specify a 3 x 380-500 V Three-phase electrical supply rated for 1.5 kW output, with full-load running current measuring 2.9 Amps. Operating liquid temperatures span from -25°C to 120°C across active HVAC circuits. Standardized DN 32 suction and DN 32 discharge flanged ports facilitate direct line insertion.
The drive motor is housed within an IP55 rated enclosure featuring Class F winding insulation to protect against thermal stress. Built-in frequency control with an integrated PI controller enables automatic variable speed adjustment according to active hydronic load. Maintenance operations utilize a service-friendly top-pull-out design, allowing complete rotor disassembly while the cast iron housing remains fixed in the pipe run.
Features
- Maintenance-free BQQE mechanical shaft seal prevents fluid leakage and maintains seal integrity under elevated working pressures.
- IP55 motor enclosure protection guards internal electrical components against ambient dust accumulation and water splash ingress.
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
- Equal suction and discharge port diameters enable straightforward inline installation without requiring custom pipe reducer spools.
- Integrated variable frequency converter with PI controller modulates motor RPM dynamically to balance flow demand and lower energy usage.
- Top-pull-out structural layout enables complete drive head and impeller extraction without disconnecting the pump casing from system piping.
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 333 L/Min |
| Max Head | 19.4 m |
| Power | 1.5 kW / 415v |
| Rated Current | 2.9 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 32 mm |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the maximum installation depth and liquid temperature boundaries?
Routine operational thermal ceilings enable the Grundfos TPE3 32-330 to process liquids -25°C to 120°C.
How high can this pump lift water vertically?
Vertical elevation capability on the TPE3 32-330 reaches a maximum dynamic head of approximately 19.4 m under rated conditions.
What maximum flow rate does this pump achieve during heavy influx?
Fluid evacuation capacity for the TPE3-32-330 peaks at approximately 333 L/Min, providing dependable high-volume drainage.
What materials are used to construct the pump casing and impeller?
Manufactured with quality materials, the TPE3 32 330 incorporates EN-GJL-250 for dependable longevity and resistance to fluid erosion.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the TPE3/32/330 delivers 1.5 kW on a 415 V three-phase line drawing 2.9 Amps.
