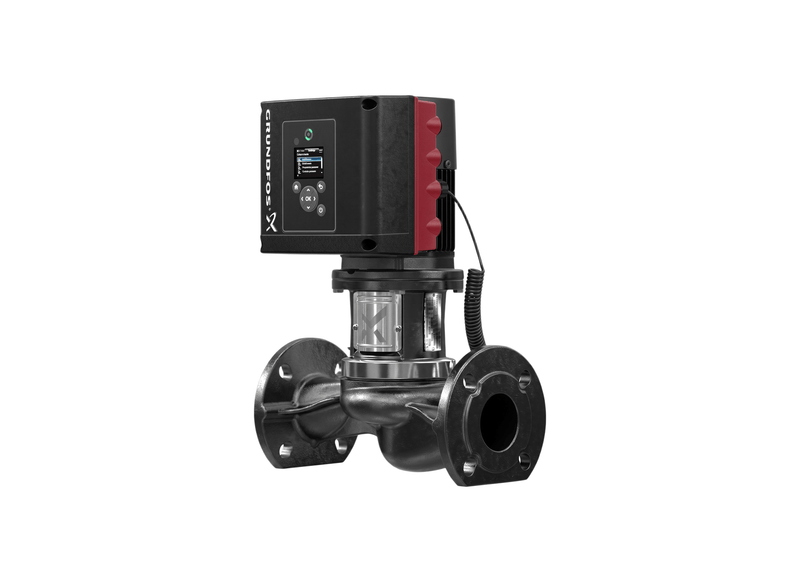

Grundfos TPE3 40-240 Cast Iron Variable Speed Three Phase Inline Centrifugal Pump with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The TPE3 40-240 in-line centrifugal pump is specified for clean water circulation across commercial heating and cooling installations, district energy plants, and industrial utility headers. Operating with a 1.5 kW electric drive, the unit features inline DN 40 pipe connections that mount straight into active fluid transfer lines without requiring offset piping manifolds.
Hydraulic performance testing confirms a rated output volume of 373 L/Min with an operational head rating of 18.6 m. The EN-GJL-250 cast iron volute casing handles system line pressures up to 16 bar. Internal fluid movement is driven by a durable Composite impeller fitted with a BQQE mechanical seal. Product net weight equals 26.6 kg.
The electric drive motor operates on a 3 x 380-500 V Three-phase power source drawing 3.05 Amps nominal operating current at 1.5 kW drive output. The pump processes clean, non-aggressive fluids across liquid temperatures between -25°C to 120°C under maximum working pressures up to 16 bar. Flanged connections feature matching DN 40 inlet and outlet porting.
Built with an IP55 dust and moisture resistant motor enclosure, the unit features Class F thermal insulation for reliable continuous duty. An integrated variable frequency drive (VFD) and PI controller adjust motor speed dynamically to match real-time flow demand. Servicing is simplified by the top-pull-out architecture, allowing removal of the motor head and rotating assembly without disturbing main line pipe joints.
Features
- High-efficiency motor design delivers optimized hydraulic throughput with minimal electrical power consumption across variable duty cycles.
- EN-GJL-250 cast iron volute housing provides robust pressure containment up to 16 bar in demanding hydronic circulation loops.
- Corrosion-resistant Composite impeller rotor is precision-balanced to minimize operational vibration and extend bearing lifecycle.
- Standardized DN 40 flanged connections comply with EN 1092-2 for seamless drop-in integration into commercial pipe headers.
- Maintenance-free BQQE mechanical shaft seal prevents fluid leakage and maintains seal integrity under elevated working pressures.
- IP55 motor enclosure protection guards internal electrical components against ambient dust accumulation and water splash ingress.
- Class F thermal motor insulation permits continuous operation under elevated fluid temperatures ranging from -25°C to 120°C.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 373 L/Min |
| Max Head | 18.6 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.05 Amps |
| Suitable For | Heating & Cooling Systems |
| Body Material | EN-GJL-250 Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 40 mm |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Fluid evacuation capacity for the Grundfos TPE3 40-240 peaks at approximately 373 L/Min, providing dependable high-volume drainage.
What materials are used to construct the pump casing and impeller?
Manufactured with quality materials, the TPE3 40-240 incorporates EN-GJL-250 for dependable longevity and resistance to fluid erosion.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the TPE3-40-240 delivers 1.5 kW on a 415 V three-phase line drawing 3.05 Amps.
What fluid temperature limits and immersion depths are rated for this unit?
Tested for thermal durability, the TPE3 40 240 tolerates working fluid temperatures -25°C to 120°C.
What is the maximum vertical lift capacity of this pump?
Fluid elevation through vertical risers reaches up to 18.6 m with the TPE3/40/240 under standard duty points.
